Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2009-04-13 06:28:03.6 |
| Date & Time (Local) | 1388/1/24 10:58:03.6 |

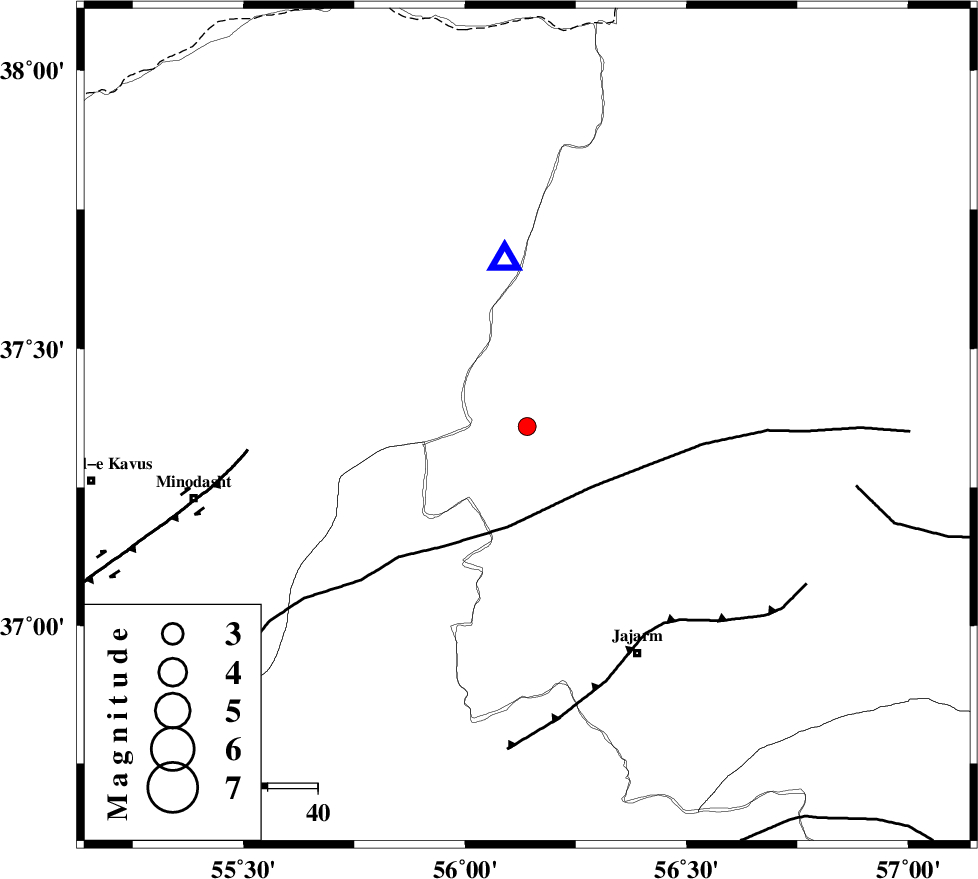

| Location | Lat:37.36 Lon: 56.14 |
| Region | 50 km North-West of Jajarm, Khorasan(north) Province |
Nearest Cities |
|
| 36 km South East of Golidagh, Golestan Province | |
| 43 km North West of Garmeh, Khorasan(north) Province | |
| 45 km South West of Garmab, Khorasan(north) Province | |
| 46 km East of Aq qamish, Golestan Province | |
| 48 km North East of Rezvan, Semnan Province | |
| Depth | 46 km |
| Agency | |
Faults within 150 km: |
|
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 18 km | |
| JAJARAM_F (Length: 77 km) , Distance to epicenter: 48 km | |
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 67 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >3.6 km |
| Error in Longitude | 9.9 km |
| Error in Depth | 7.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 52417 | IIEES | MRVT | N | 497.1 | 0.43 | 2009-04-13 06:28:25 | 2009-07-13 01:52:00 | n |
| 52418 | IIEES | BJRD | E | 116.9 | 0.35 | 2009-04-13 06:28:45 | 2009-07-13 01:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MRVT | Z | Pg | E | 2009-04-13 06:28:13 | -0.1 | y | 33.7 | 353 | |||
| IIEES | BJRD | Z | Pg | E | 2009-04-13 06:28:24 | 0 | y | 119 | 71 | |||
| IIEES | SHRD | Z | Pg | E | 2009-04-13 06:28:29 | 0.4 | y | 150 | 184 | |||
| IIEES | SHRD | N | Sg | E | 2009-04-13 06:28:47 | -0.3 | y | 150 | 184 | |||
| IIEES | SHRT | Z | Pn | E | 2009-04-13 06:29:17 | 0 | y | 558 | 136 | |||
