Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2009-04-15 06:50:45.7 |
| Date & Time (Local) | 1388/1/26 11:20:45.7 |

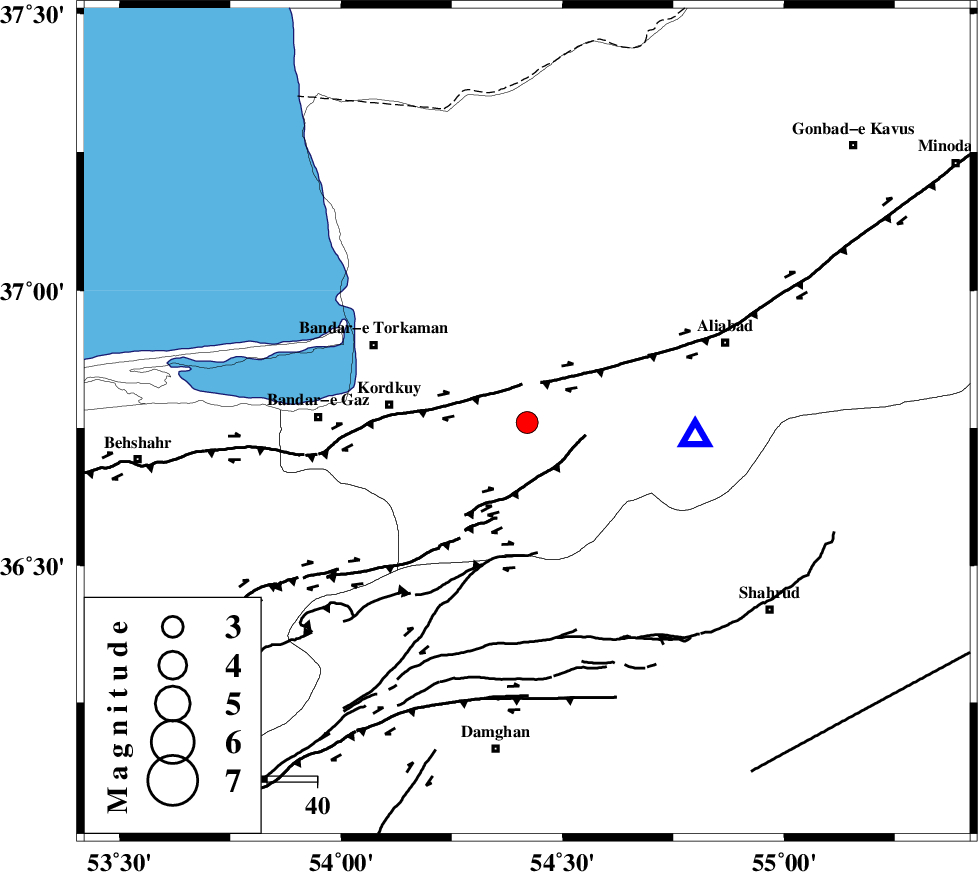

| Location | Lat:36.76 Lon: 54.42 |
| Region | 9 km Gorgan, Golestan Province |
Nearest Cities |
|
| 9 km of Gorgan, Golestan Province | |
| 11 km North of Naharkhoran, Golestan Province | |
| 12 km of Lamsak, Golestan Province | |
| 15 km West of Jalin olia, Golestan Province | |
| 23 km North of Cheharbagh, Golestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 13 km | |
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 17 km | |
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 21 km | |
| Number of Phases | 9 |
| RMS | 0.4 |
| Number of Stations | 8 |
| Error in Latitude | >8.8 km |
| Error in Longitude | 6.2 km |
| Error in Depth | 10.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 52440 | IIEES | MRVT | N | 148.6 | 0.27 | 2009-04-15 06:51:41 | 2009-07-13 01:52:00 | n |
| 52441 | IIEES | MRVT | E | 200.9 | 0.35 | 2009-04-15 06:51:42 | 2009-07-13 01:52:00 | n |
| 52442 | IIEES | DAMV | N | 120 | 0.57 | 2009-04-15 06:51:59 | 2009-07-13 01:52:00 | n |
| 52443 | IIEES | THKV | E | 87.3 | 0.41 | 2009-04-15 06:52:19 | 2009-07-13 01:52:00 | n |
| 52444 | IIEES | THKV | N | 117.1 | 0.48 | 2009-04-15 06:52:21 | 2009-07-13 01:52:00 | n |
| 52445 | IIEES | GHVR | N | 33.5 | 0.63 | 2009-04-15 06:52:36 | 2009-07-13 01:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRD | Z | Pg | E | 2009-04-15 06:51:13 | 0.2 | y | 166 | 120 | |||
| IIEES | MRVT | Z | Pg | E | 2009-04-15 06:51:14 | -0.4 | y | 179 | 55 | |||
| IIEES | DAMV | Z | Pn | E | 2009-04-15 06:51:24 | -0.1 | y | 253 | 241 | |||
| IIEES | DAMV | N | Sg | E | 2009-04-15 06:51:56 | -0.5 | y | 253 | 241 | |||
| IIEES | CHTH | Z | Pn | E | 2009-04-15 06:51:32 | 0.1 | y | 310 | 253 | |||
| IIEES | THKV | Z | Pn | E | 2009-04-15 06:51:35 | 0.5 | y | 331 | 255 | |||
| IIEES | GHVR | Z | Pn | E | 2009-04-15 06:51:41 | 0.4 | y | 382 | 230 | |||
| IIEES | ASAO | Z | Pn | E | 2009-04-15 06:51:51 | -0.4 | y | 467 | 240 | |||
| IIEES | ZNJK | Z | Pn | E | 2009-04-15 06:51:57 | 0.5 | y | 512 | 271 | |||
