Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2009-04-22 14:02:36.5 |
| Date & Time (Local) | 1388/2/2 18:32:36.5 |

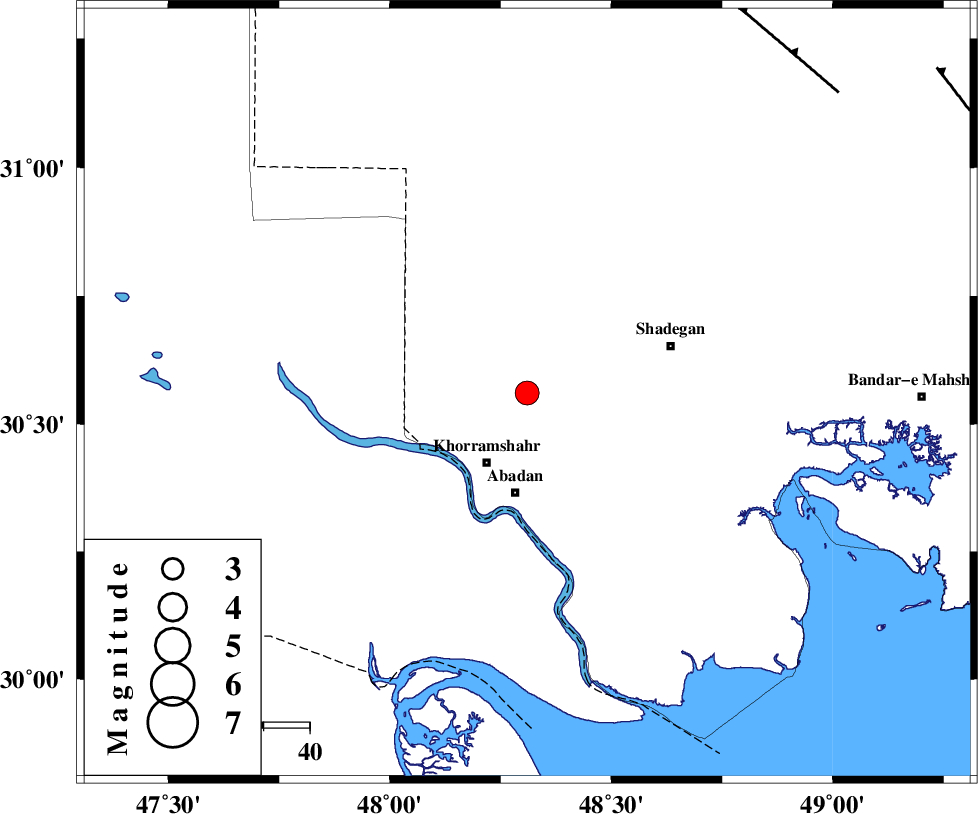

| Location | Lat:30.56 Lon: 48.31 |
| Region | 16 km North of Khorramshahr, Khoozestan Province |
Nearest Cities |
|
| 17 km North of Khorramshahr, Khoozestan Province | |
| 19 km North East of Polno, Khoozestan Province | |
| 22 km North of Abadan, Khoozestan Province | |
| 23 km South West of Darkhovin, Khoozestan Province | |
| 27 km North of Farrokhzad, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 94 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 113 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 142 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >2.5 km |
| Error in Longitude | 8.2 km |
| Error in Depth | 4.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 52510 | IIEES | SHGR | N | 717.8 | 0.44 | 2009-04-22 14:03:29 | 2009-07-13 01:52:00 | n |
| 52511 | IIEES | SHGR | E | 507.3 | 0.6 | 2009-04-22 14:03:30 | 2009-07-13 01:52:00 | n |
| 52512 | IIEES | GHVR | E | 21 | 0.72 | 2009-04-22 14:05:18 | 2009-07-13 01:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2009-04-22 14:03:05 | -0.1 | y | 178 | 15 | |||
| IIEES | SHGR | N | Sg | E | 2009-04-22 14:03:27 | 0 | y | 178 | 15 | |||
| IIEES | KHMZ | Z | Pn | E | 2009-04-22 14:03:32 | 0.1 | y | 386 | 23 | |||
| IIEES | NASN | Z | Pn | E | 2009-04-22 14:03:45 | 0 | y | 494 | 59 | |||
| IIEES | GHVR | Z | Pn | E | 2009-04-22 14:03:48 | 0 | y | 515 | 32 | |||
| IIEES | GHIR | Z | Pn | E | 2009-04-22 14:03:48 | 0 | y | 519 | 118 | |||
