Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2009-05-06 12:45:03.8 |
| Date & Time (Local) | 1388/2/16 17:15:03.8 |

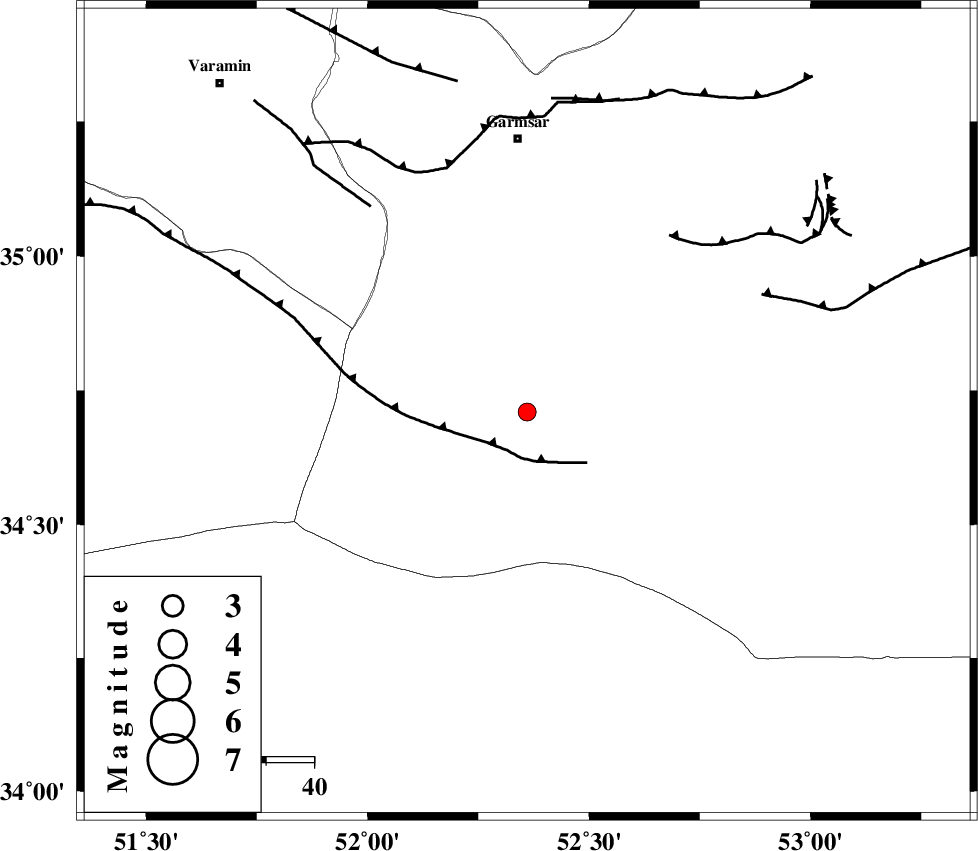

| Location | Lat:34.71 Lon: 52.36 |
| Region | 56 km South of Garmsar, Semnan Province |
Nearest Cities |
|
| 51 km South of Gardovan, Semnan Province | |
| 54 km South of Lajran, Semnan Province | |
| 57 km South of Garmsar, Semnan Province | |
| 57 km South West of Davarabad, Semnan Province | |
| 60 km South West of Kohanabad, Semnan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| SIAHKUH_F (Length: 154 km) , Distance to epicenter: 9 km | |
| KUH_E_GACHAB_F1 (Length: 53 km) , Distance to epicenter: 47 km | |
| GARMSAR_F (Length: 77 km) , Distance to epicenter: 53 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >1.5 km |
| Error in Longitude | 3.6 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 52659 | IIEES | THKV | E | 82.2 | 0.48 | 2009-05-06 12:46:06 | 2009-07-13 01:52:00 | n |
| 52660 | IIEES | NASN | N | 38.6 | 0.24 | 2009-05-06 12:46:09 | 2009-07-13 01:52:00 | n |
| 52661 | IIEES | NASN | E | 51.9 | 0.52 | 2009-05-06 12:46:10 | 2009-07-13 01:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | DAMV | Z | Pg | E | 2009-05-06 12:45:22 | -0.1 | y | 108 | 341 | |||
| IIEES | THKV | Z | Pg | E | 2009-05-06 12:45:35 | 0.1 | y | 190 | 315 | |||
| IIEES | NASN | Z | Pg | E | 2009-05-06 12:45:39 | -0.1 | y | 216 | 169 | |||
| IIEES | NASN | N | Sg | E | 2009-05-06 12:46:05 | 0.1 | y | 216 | 169 | |||
| IIEES | KHMZ | Z | Pg | E | 2009-05-06 12:45:43 | -0.1 | y | 246 | 245 | |||
