Event Specification
Magnitude |
4.2 |
| Date & Time (UTC) | 2009-05-26 10:39:05.2 |
| Date & Time (Local) | 1388/3/5 15:09:05.2 |

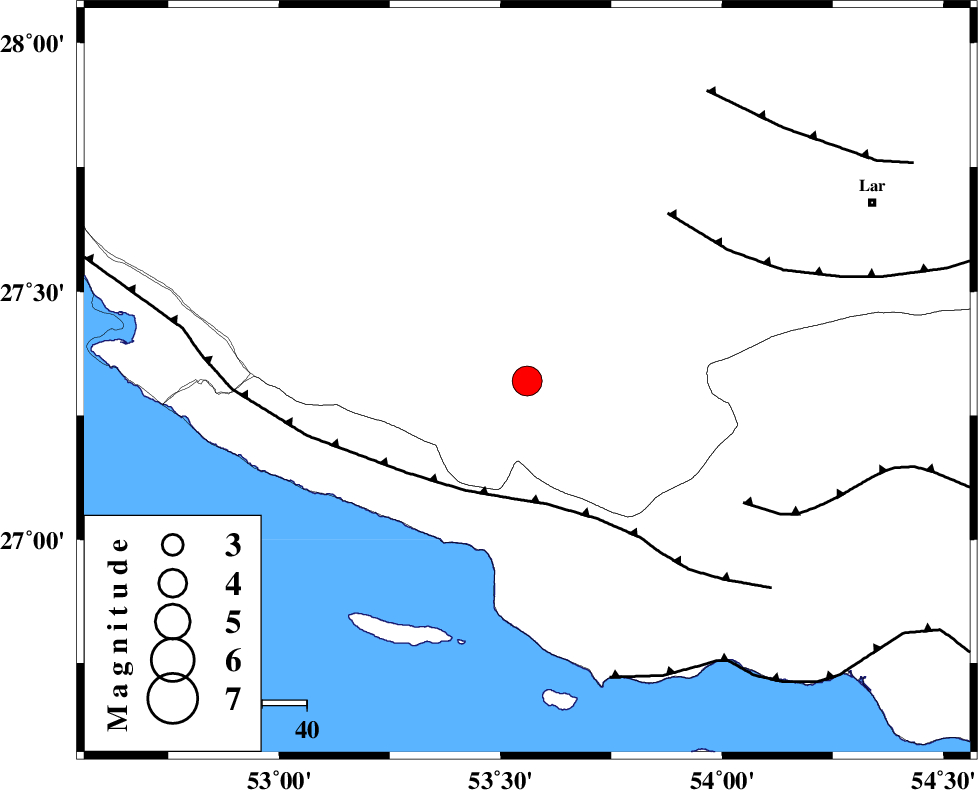

| Location | Lat:27.32 Lon: 53.56 |
| Region | 38 km East of Lamerd, Fars Province |
Nearest Cities |
|
| 12 km North of Ashkenan, Fars Province | |
| 13 km South of Beyram, Fars Province | |
| 24 km North West of Ahl, Fars Province | |
| 30 km South of Fedagh, Fars Province | |
| 39 km East of Lamerd, Fars Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF3 (Length: 292 km) , Distance to epicenter: 27 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 49 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 55 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 3 |
| Error in Latitude | >10.6 km |
| Error in Longitude | 9.6 km |
| Error in Depth | 9.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 52793 | IIEES | GHIR | N | 3749.4 | 0.37 | 2009-05-26 10:39:46 | 2009-07-13 01:52:00 | n |
| 52794 | IIEES | BNDS | E | 1213.5 | 0.52 | 2009-05-26 10:40:44 | 2009-07-13 01:52:00 | n |
| 52795 | IIEES | KRBR | E | 479.5 | 0.65 | 2009-05-26 10:41:19 | 2009-07-13 01:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pg | E | 2009-05-26 10:39:25 | 0.2 | y | 121 | 333 | |||
| IIEES | GHIR | N | Sg | E | 2009-05-26 10:39:40 | -0.2 | y | 121 | 333 | |||
| IIEES | BNDS | Z | Pg | E | 2009-05-26 10:39:47 | -0.2 | y | 259 | 87 | |||
| IIEES | KRBR | Z | Pn | E | 2009-05-26 10:40:06 | 0.2 | y | 431 | 46 | |||
| IIEES | KRBR | N | Sn | 2009-05-26 10:40:51 | 0.1 | y | 431 | 46 | ||||
