Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2010-03-20 13:58:06.5 |
| Date & Time (Local) | 1388/12/29 17:28:06.5 |

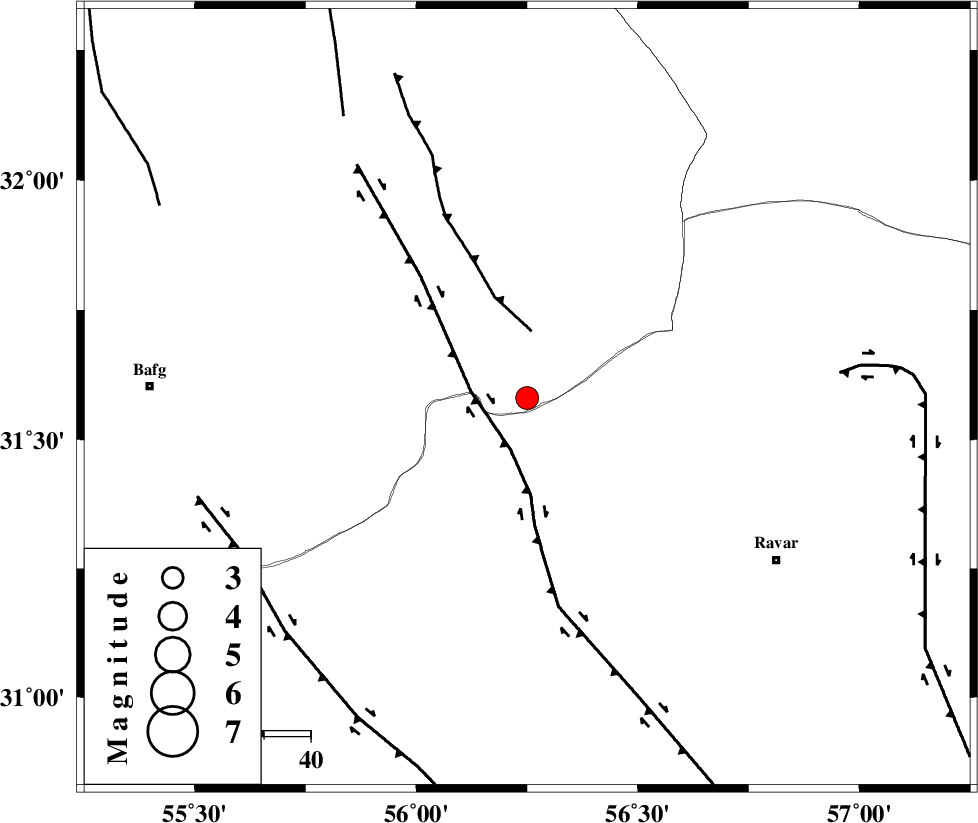

| Location | Lat:31.58 Lon: 56.25 |
| Region | Yazd Province, 80 km East of Bafq |
Nearest Cities |
|
| 10 km of Asfih, Yazd Province | |
| 19 km North of Kuhbanan, Kerman Province | |
| 23 km South East of Benestan, Yazd Province | |
| 24 km North of Jor, Kerman Province | |
| 28 km North East of Basab, Yazd Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 12 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 14 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 67 km | |
| Number of Phases | 3 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >1.4 km |
| Error in Longitude | 2.8 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 57390 | IIEES | KRBR | N | 403.7 | 0 | 2010-03-20 13:59:03 | 2010-03-20 02:06:00 | n |
| 57391 | IIEES | KRBR | E | 408.7 | 0.54 | 2010-03-20 13:59:03 | 2010-03-20 02:06:00 | n |
| 57392 | IIEES | NASN | N | 60.3 | 0.72 | 2010-03-20 13:59:48 | 2010-03-20 02:06:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2010-03-20 13:58:37 | 0 | y | 184 | 164 | |||
| IIEES | TABS | Z | Pg | E | 2010-03-20 13:58:46 | 0 | y | 243 | 19 | |||
| IIEES | NASN | Z | Pn | E | 2010-03-20 13:58:58 | 0 | y | 351 | 293 | |||
