Event Specification
Magnitude |
3.7 |
| Date & Time (UTC) | 2009-07-22 17:44:55.8 |
| Date & Time (Local) | 1388/4/31 22:14:55.8 |

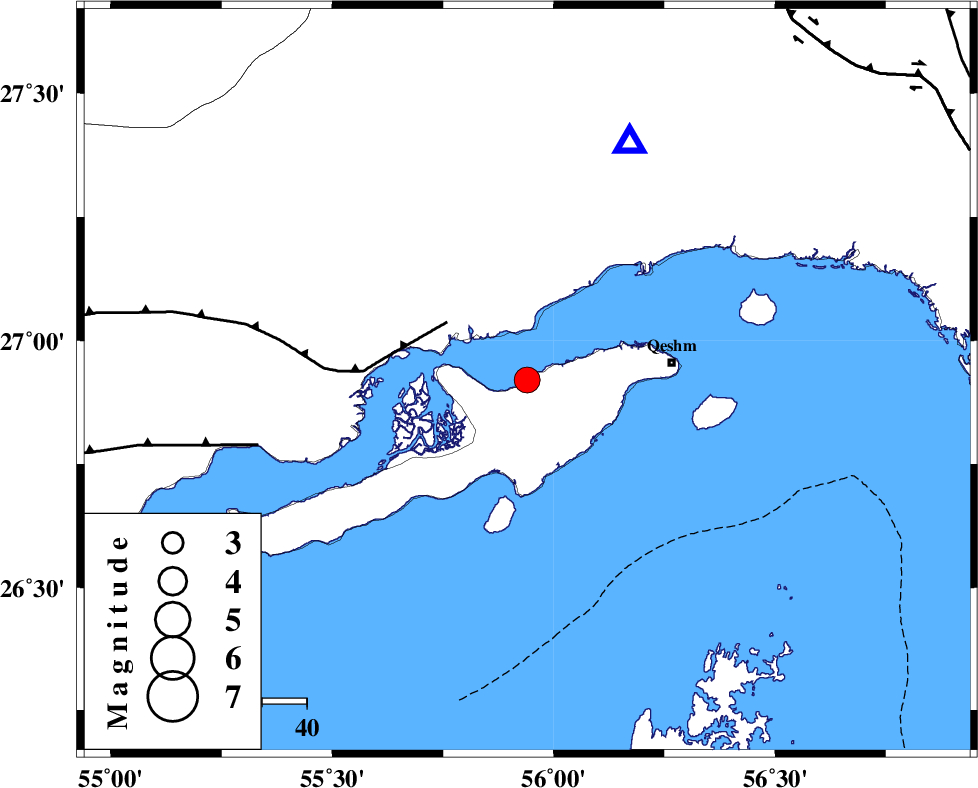

| Location | Lat:26.92 Lon: 55.94 |
| Region | Persian Gulf, 33 km West of Qeshm |
Nearest Cities |
|
| 20 km North West of Suza, Hormozgan Province | |
| 33 km West of Qeshm, Hormozgan Province | |
| 35 km East of Bandar-e khamir, Hormozgan Province | |
| 45 km South West of Bandar-e abbas, Hormozgan Province | |
| 80 km South of Fin, Hormozgan Province | |
| Depth | 28 km |
| Agency | |
Faults within 150 km: |
|
| MFF1 (Length: 180 km) , Distance to epicenter: 22 km | |
| ZFF1 (Length: 165 km) , Distance to epicenter: 62 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 100 km | |
| Number of Phases | 5 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >6 km |
| Error in Longitude | 5 km |
| Error in Depth | 3.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 57988 | IIEES | GHIR | E | 263.9 | 0.6 | 2009-07-22 17:46:49 | 2009-10-25 09:10:00 | n |
| 57989 | IIEES | GHIR | N | 306.5 | 0.56 | 2009-07-22 17:46:51 | 2009-10-25 09:10:00 | n |
| 57990 | IIEES | KRBR | N | 113.4 | 0.52 | 2009-07-22 17:46:55 | 2009-10-25 09:10:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2009-07-22 17:45:06 | 0 | y | 58.4 | 23 | |||
| IIEES | BNDS | E | Sg | E | 2009-07-22 17:45:14 | 0 | y | 58.4 | 23 | |||
| IIEES | GHIR | Z | Pn | E | 2009-07-22 17:45:43 | 0 | y | 329 | 298 | |||
| IIEES | KRBR | Z | Pn | E | 2009-07-22 17:45:45 | 0 | y | 349 | 13 | |||
| IIEES | NASN | Z | Pn | E | 2009-07-22 17:46:31 | 0 | y | 719 | 336 | |||
