Systems
Event Specification

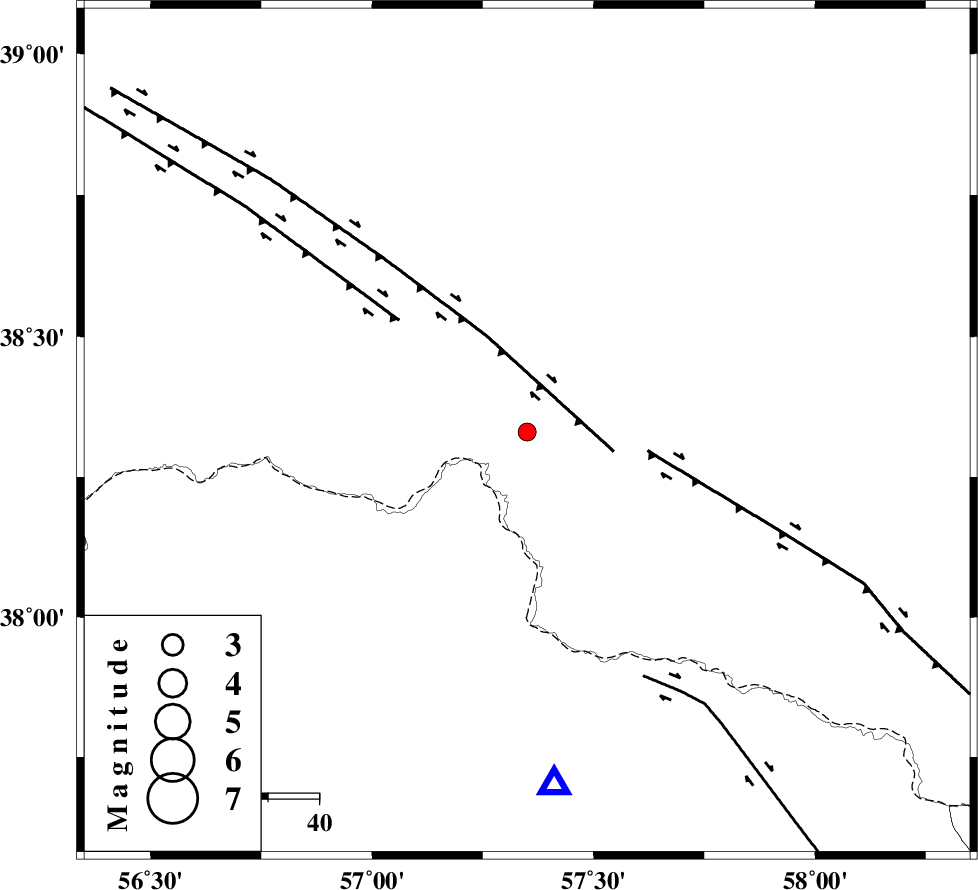

 Map Region : lat:-  lon:-

  North
West   East
  South
Show Cities
Show Foreign Cities
Show Fault Mechanism
Show Province Boundaries
Show Stations
Map Title

Magnitude
 2.5
Date & Time (UTC) 2009-11-22 21:32:48.4
Date & Time (Local) 1388/9/2  01:02:48.4
Location Lat:38.33 Lon: 57.35
Region Turkmenistan, 95 km North of Bojnurd
Nearest Cities
48 km North East of Raz, Khorasan(north) Province
50 km North West of Gifan olia, Khorasan(north) Province
55 km North East of Tangehzar, Khorasan(north) Province
57 km North East of Yekehsoud-e paeen, Khorasan(north) Province
74 km North West of Yangi ghale-ye bala, Khorasan(north) Province
Depth 17 km
Agency
Faults within 150 km:
MAIN_KOPEHDAGH_F2 (Length: 131 km) , Distance to epicenter: 18 km
MAIN_KOPEHDAGH_F3 (Length: 96 km) , Distance to epicenter: 24 km
MAIN_KOPEHDAGH_F1 (Length: 318 km) , Distance to epicenter: 34 km
Number of Phases 6
RMS 0
Number of Stations 4
Error in Latitude >3 km
Error in Longitude 2.2 km
Error in Depth 3.3 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
59341IIEESBJRDN 179.60.382009-11-22 21:33:152010-02-08 11:55:00n
59342IIEESMRVTN 134.20.522009-11-22 21:33:322010-02-08 11:55:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEESBJRDZ Pg E2009-11-22 21:33:000y70176
IIEESBJRDN Sg E2009-11-22 21:33:090y70176
IIEESMRVTZ Pg E2009-11-22 21:33:100y133237
IIEESMRVTE Sg E2009-11-22 21:33:260y133237
IIEESSHROZ Pn E2009-11-22 21:33:310y283205
IIEESTABSZ Pn E2009-11-22 21:34:000y520182
