Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2009-11-29 11:38:26.1 |
| Date & Time (Local) | 1388/9/8 15:08:26.1 |

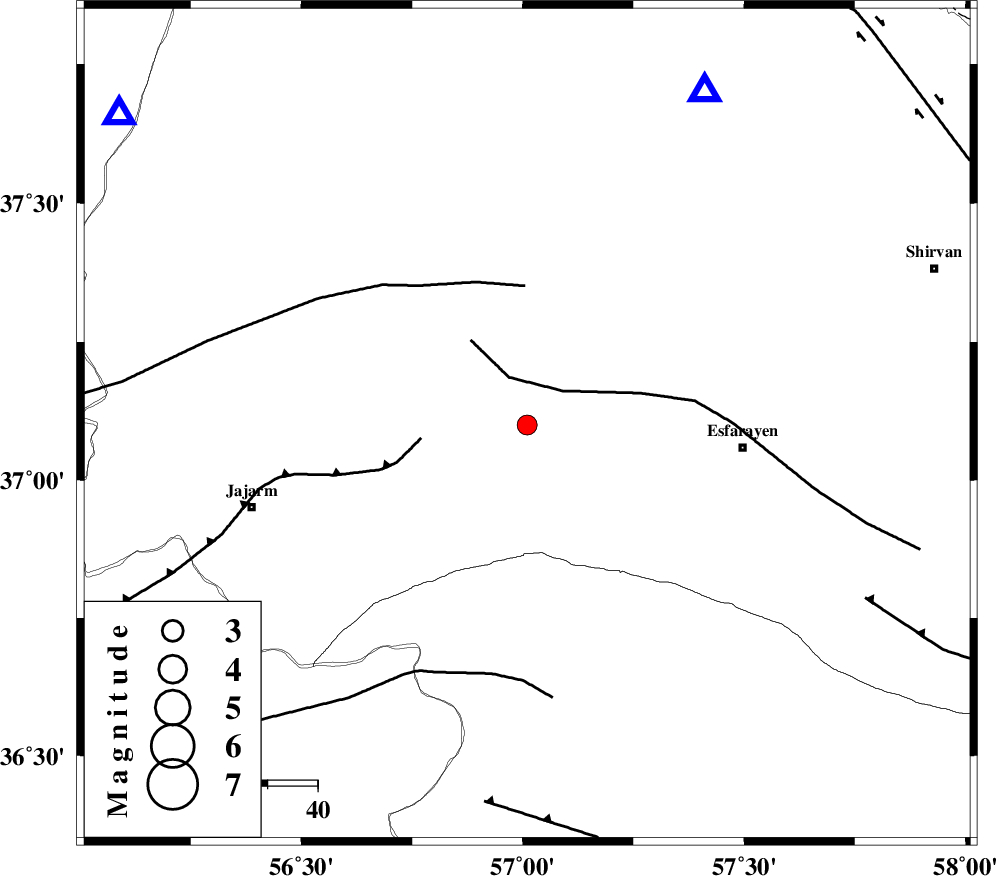

| Location | Lat:37.1 Lon: 57.01 |
| Region | Khorasan(north) Province, 43 km West of Esfarayen |
Nearest Cities |
|
| 16 km West of Cheharborj, Khorasan(north) Province | |
| 25 km North West of Zarqabad, Khorasan(north) Province | |
| 31 km South East of Shogan, Khorasan(north) Province | |
| 36 km North West of Rivadeh, Khorasan(center) Province | |
| 36 km West of Eraj, Khorasan(north) Province | |
| Depth | 24 km |
| Agency | |
Faults within 150 km: |
|
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 10 km | |
| JAJARAM_F (Length: 77 km) , Distance to epicenter: 21 km | |
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 28 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >3.3 km |
| Error in Longitude | 4.5 km |
| Error in Depth | 7.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 59347 | IIEES | BJRD | E | 536.2 | 0.59 | 2009-11-29 11:38:52 | 2010-02-08 11:55:00 | n |
| 59348 | IIEES | MRVT | N | 229.2 | 0.36 | 2009-11-29 11:39:02 | 2010-02-08 11:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BJRD | Z | Pg | E | 2009-11-29 11:38:39 | -0.1 | y | 75.7 | 27 | |||
| IIEES | BJRD | N | Sg | E | 2009-11-29 11:38:48 | 0 | y | 75.7 | 27 | |||
| IIEES | MRVT | Z | Pg | E | 2009-11-29 11:38:43 | 0.1 | y | 103 | 308 | |||
| IIEES | SHRO | Z | Pg | E | 2009-11-29 11:38:50 | 0 | y | 150 | 217 | |||
| IIEES | TABS | Z | Pn | E | 2009-11-29 11:39:20 | 0.3 | y | 382 | 179 | |||
| IIEES | NASN | Z | Pn | E | 2009-11-29 11:39:48 | -0.4 | y | 612 | 220 | |||
