Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2009-12-12 16:54:45.9 |
| Date & Time (Local) | 1388/9/21 20:24:45.9 |

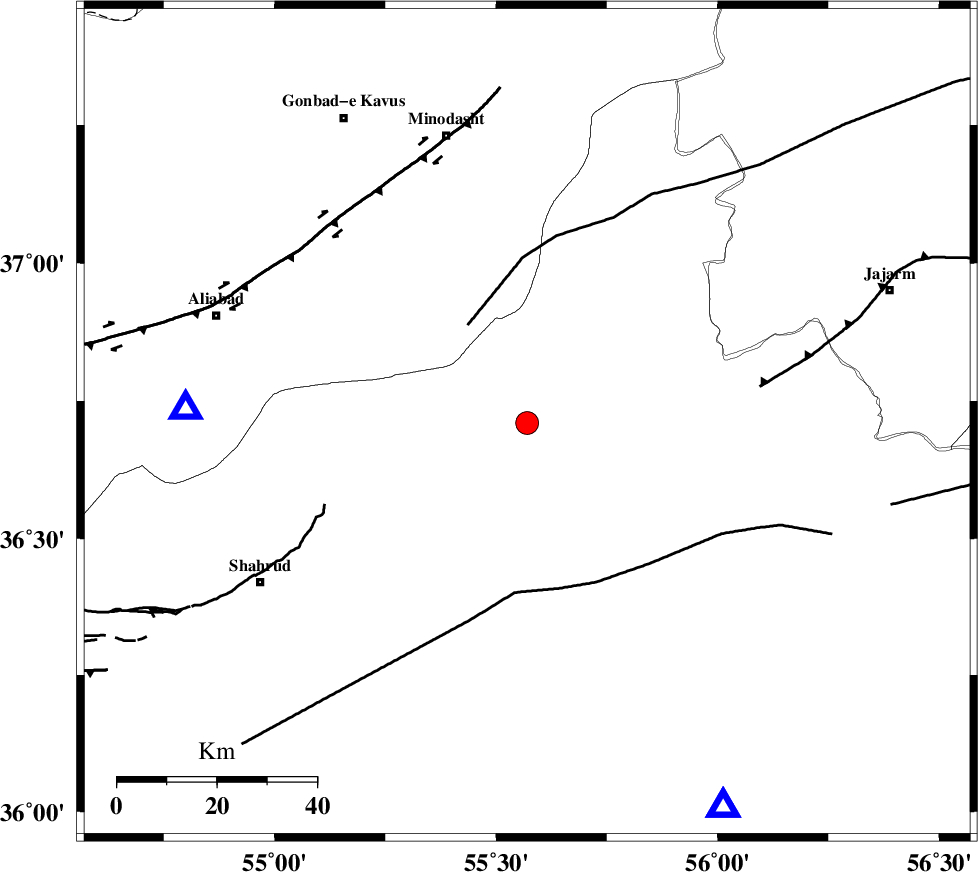

| Location | Lat:36.71 Lon: 55.57 |
| Region | Semnan Province, 60 km South-East of Minodasht |
Nearest Cities |
|
| 23 km North East of Kalateh khanj, Semnan Province | |
| 30 km South East of Farsian, Golestan Province | |
| 32 km South of Qaleh qafeh, Semnan Province | |
| 34 km North of Miamay, Semnan Province | |
| 37 km South of Qale-ye qafeh, Golestan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 23 km | |
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 33 km | |
| MEYAMEY_F (Length: 141 km) , Distance to epicenter: 34 km | |
| Number of Phases | 4 |
| RMS | 0.2 |
| Number of Stations | 3 |
| Error in Latitude | >3 km |
| Error in Longitude | 3.5 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 59683 | IIEES | BJRD | N | 291.3 | 1.13 | 2009-12-12 16:55:45 | 2010-02-08 11:55:00 | n |
| 59684 | IIEES | BJRD | E | 275.1 | 0.9 | 2009-12-12 16:55:45 | 2010-02-08 11:55:00 | n |
| 59685 | IIEES | DAMV | N | 71.1 | 0.62 | 2009-12-12 16:56:27 | 2010-02-08 11:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRO | Z | Pg | E | 2009-12-12 16:55:00 | 0 | y | 87.5 | 153 | |||
| IIEES | BJRD | Z | Pg | E | 2009-12-12 16:55:18 | 0.3 | y | 197 | 56 | |||
| IIEES | BJRD | N | Sg | E | 2009-12-12 16:55:41 | -0.2 | y | 197 | 56 | |||
| IIEES | DAMV | Z | Pn | E | 2009-12-12 16:55:36 | -0.1 | y | 345 | 251 | |||
