Event Specification
Magnitude |
3.8 |
| Date & Time (UTC) | 2010-05-18 03:59:36.6 |
| Date & Time (Local) | 1389/2/28 08:29:36.6 |

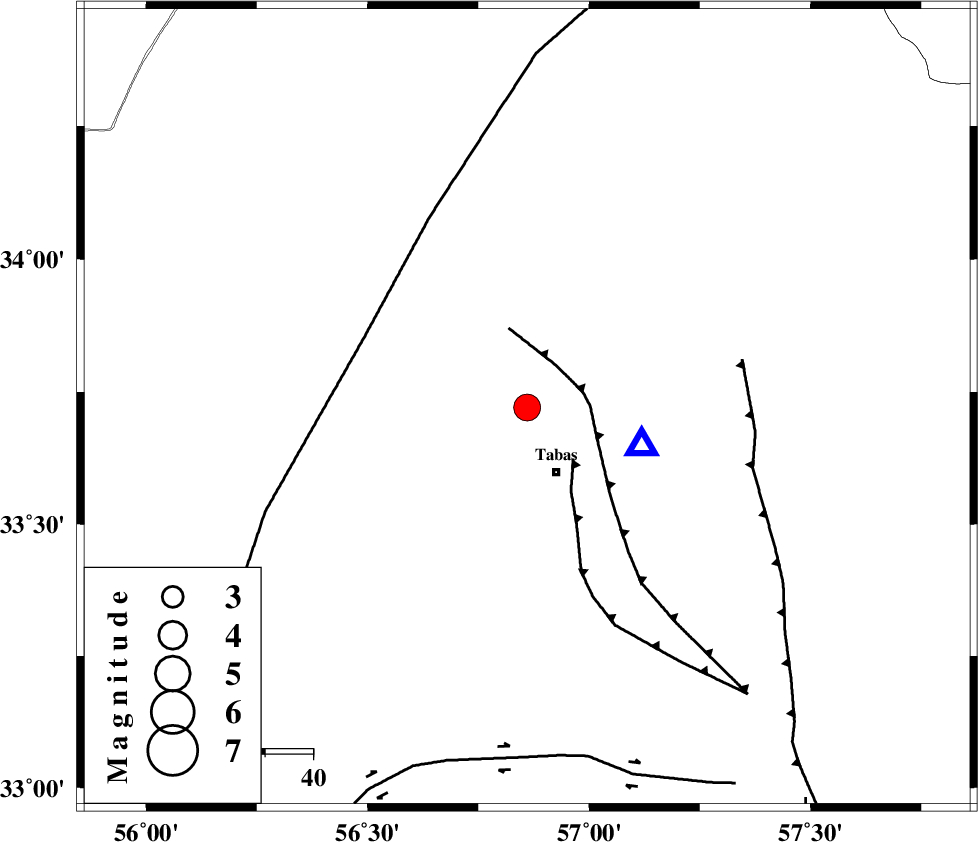

| Location | Lat:33.72 Lon: 56.86 |
| Region | Yazd Province, 14 km North of Tabas |
Nearest Cities |
|
| 7 km of Jokhvah, Yazd Province | |
| 15 km North of Tabas, Yazd Province | |
| 19 km North of Oshtoqran, Yazd Province | |
| 31 km North of Kerit, Yazd Province | |
| 38 km West of Reqqeh, Khorasan(center) Province | |
| Depth | 9 km |
| Agency | |
Faults within 150 km: |
|
| TABAS_F1 (Length: 91 km) , Distance to epicenter: 11 km | |
| TABAS_F2 (Length: 67 km) , Distance to epicenter: 14 km | |
| NAINI_F (Length: 342 km) , Distance to epicenter: 37 km | |
| Number of Phases | 8 |
| RMS | 0.4 |
| Number of Stations | 8 |
| Error in Latitude | >5.5 km |
| Error in Longitude | 7.1 km |
| Error in Depth | 9.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 62490 | IIEES | TABS | N | 12940.9 | 0.16 | 2010-05-18 03:59:45 | 2010-05-18 04:19:00 | n |
| 62491 | IIEES | NASN | E | 94.8 | 0.54 | 2010-05-18 04:01:37 | 2010-05-18 04:19:00 | n |
| 62492 | IIEES | KRBR | E | 362.3 | 0.39 | 2010-05-18 04:01:42 | 2010-05-18 04:19:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | TABS | Z | Pg | E | 2010-05-18 03:59:41 | 0 | y | 25.3 | 107 | |||
| IIEES | SHRO | Z | Pn | E | 2010-05-18 04:00:17 | -0.3 | y | 266 | 343 | |||
| IIEES | SHRT | Z | Pn | E | 2010-05-18 04:00:24 | 0.1 | y | 318 | 90 | |||
| IIEES | NASN | Z | Pn | E | 2010-05-18 04:00:33 | -0.6 | y | 391 | 256 | |||
| IIEES | KRBR | Z | Pn | E | 2010-05-18 04:00:37 | 0.5 | y | 414 | 181 | |||
| IIEES | MRVT | Z | Pn | E | 2010-05-18 04:00:40 | 0.3 | y | 443 | 351 | |||
| IIEES | CHTH | Z | Pn | E | 2010-05-18 04:00:57 | 0.7 | y | 578 | 296 | |||
| IIEES | ZHSF | Z | Pn | E | 2010-05-18 04:00:57 | -0.5 | y | 587 | 140 | |||
