Magnitude
 3.4
Date & Time (UTC) 2010-10-19 04:05:15.7
Date & Time (Local) 1389/7/27  07:35:15.7

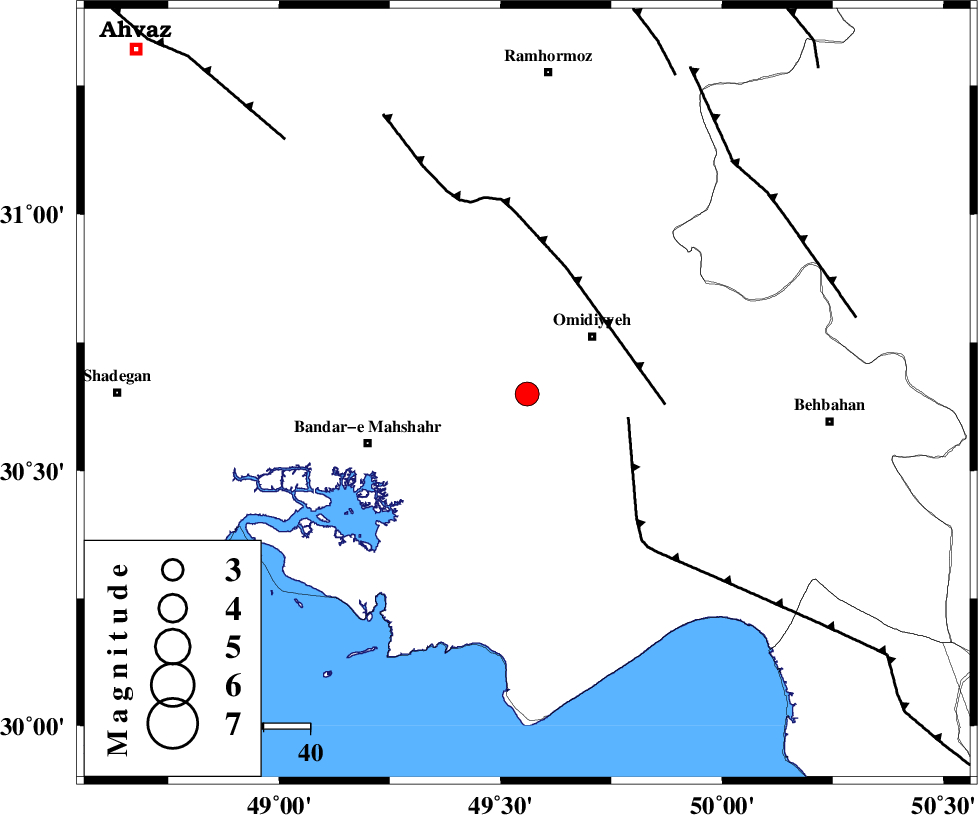

Location Lat:30.65 Lon: 49.56
Region Khoozestan Province, 19 km South-West of Omidiyeh
Nearest Cities
19 km South West of Omidiyeh, Khoozestan Province
19 km West of Chah-e salem, Khoozestan Province
22 km North West of Asiyab, Khoozestan Province
23 km South East of Abdoliyeh, Khoozestan Province
24 km North West of Chamkhalf-e eisa, Khoozestan Province
Depth 32 km
Agency
Faults within 150 km:
RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 22 km
AGHAJARI_F (Length: 88 km) , Distance to epicenter: 29 km
MFF4 (Length: 62 km) , Distance to epicenter: 67 km
Number of Phases 5
RMS 0.1
Number of Stations 4
Error in Latitude >6.1 km
Error in Longitude 5.8 km
Error in Depth 5.5 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
72010IIEESSHGRE 1128.90.42010-10-19 04:06:072010-10-19 04:30:00n
72011IIEESSHGRN 701.50.482010-10-19 04:06:102010-10-19 04:30:00n
72012IIEESKHMZN 63.60.482010-10-19 04:06:502010-10-19 04:30:00n
72013IIEESKHMZE 89.70.482010-10-19 04:06:532010-10-19 04:30:00n
72014IIEESSNGEE 31.20.522010-10-19 04:07:332010-10-19 04:30:00n
72015IIEESSNGEN 23.20.62010-10-19 04:08:032010-10-19 04:30:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEESSHGRZ Pg E2010-10-19 04:05:440y177336
IIEESSHGRE Sg E2010-10-19 04:06:050y177336
IIEESKHMZN Pn E2010-10-19 04:06:040.1y3456
IIEESNASNZ Pn E2010-10-19 04:06:10-0.1y39051
IIEESSNGEZ Pn E2010-10-19 04:06:28-0.1y535338
