Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2011-02-10 23:42:06.6 |
| Date & Time (Local) | 1389/11/22 03:12:06.6 |

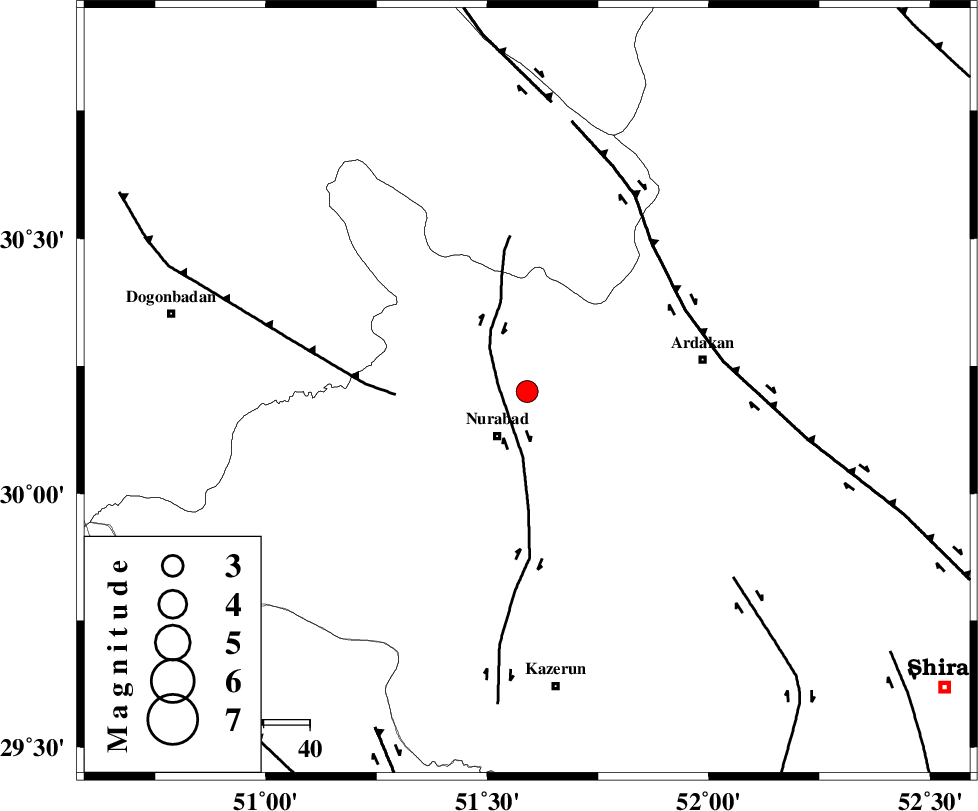

| Location | Lat:30.2 Lon: 51.59 |
| Region | Fars Province, 12 km Nurabad |
Nearest Cities |
|
| 9 km of Masiri, Fars Province | |
| 12 km North of Nurabad, Fars Province | |
| 13 km North East of Fahlian-e olia, Fars Province | |
| 14 km North of Gachgaran, Fars Province | |
| 18 km North East of Ahangari, Fars Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| KAZERUN_F (Length: 96 km) , Distance to epicenter: 6 km | |
| MISHAN_F (Length: 76 km) , Distance to epicenter: 29 km | |
| HZF3 (Length: 197 km) , Distance to epicenter: 39 km | |
| Number of Phases | 6 |
| RMS | 0 |
| Number of Stations | 6 |
| Error in Latitude | >1.8 km |
| Error in Longitude | 1.2 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 77872 | IIEES | GHIR | E | 192.2 | 0.44 | 2011-02-10 23:43:32 | 2011-02-11 12:02:00 | n |
| 77873 | IIEES | GHIR | N | 168.7 | 0.52 | 2011-02-10 23:43:34 | 2011-02-11 12:02:00 | n |
| 77874 | IIEES | KRBR | N | 17.1 | 0.6 | 2011-02-10 23:44:43 | 2011-02-11 12:02:00 | n |
| 77875 | IIEES | KRBR | E | 14.5 | 0.68 | 2011-02-10 23:44:52 | 2011-02-11 12:02:00 | n |
| 77876 | IIEES | ASAO | E | 9.8 | 0.56 | 2011-02-10 23:44:13 | 2011-02-11 12:02:00 | n |
| 77877 | IIEES | ASAO | N | 10.7 | 0.68 | 2011-02-10 23:44:48 | 2011-02-11 12:02:00 | n |
| 77878 | IIEES | SNGE | N | 7.8 | 0.44 | 2011-02-10 23:45:02 | 2011-02-11 12:02:00 | n |
| 77879 | IIEES | SNGE | E | 5.7 | 0.68 | 2011-02-10 23:45:05 | 2011-02-11 12:02:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | N | Pn | E | 2011-02-10 23:42:45 | 0 | y | 252 | 147 | |||
| IIEES | NASN | Z | Pn | E | 2011-02-10 23:42:53 | 0.1 | y | 310 | 22 | |||
| IIEES | KHMZ | Z | Pn | E | 2011-02-10 23:43:06 | 0 | y | 421 | 339 | |||
| IIEES | KRBR | Z | Pn | E | 2011-02-10 23:43:16 | -0.1 | y | 499 | 92 | |||
| IIEES | ASAO | Z | Pn | E | 2011-02-10 23:43:16 | 0 | y | 504 | 343 | |||
| IIEES | SNGE | Z | Pn | E | 2011-02-10 23:43:37 | 0 | y | 672 | 325 | |||
