Event Specification
Magnitude |
4 |
| Date & Time (UTC) | 2011-02-13 11:56:13.8 |
| Date & Time (Local) | 1389/11/24 15:26:13.8 |
| Location | Lat:29.15 Lon: 52.64 |
| Region | Fars Province, 36 km North of Firuz Abad |
Nearest Cities |
|
| 10 km of Kavar, Fars Province | |
| 12 km North of Jokan, Fars Province | |
| 14 km South of Tasuj, Fars Province | |
| 15 km North West of Ali Abad, Fars Province | |
| 16 km West of Akbarabad, Fars Province | |
| Depth | 10 km |
| Agency | |

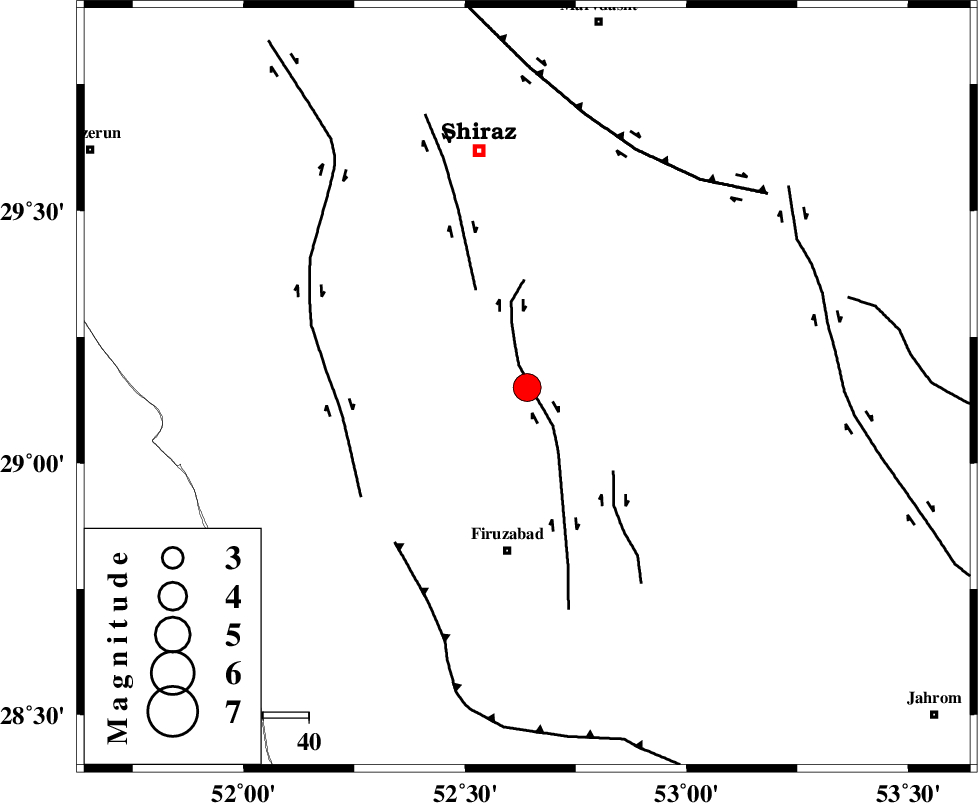

Faults within 150 km: |
|
| SABZ_PUSHAN_F_Z1 (Length: 69 km) , Distance to epicenter: 1 km | |
| SABZ_PUSHAN_F_Z3 (Length: 37 km) , Distance to epicenter: 24 km | |
| SABZ_PUSHAN_F_Z2 (Length: 24 km) , Distance to epicenter: 26 km | |
| Number of Phases | 11 |
| RMS | 0.2 |
| Number of Stations | 11 |
| Error in Latitude | >4.4 km |
| Error in Longitude | 3.9 km |
| Error in Depth | 8.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 77919 | IIEES | GHIR | E | 3776.5 | 0.49 | 2011-02-13 11:56:55 | 2011-02-13 12:17:00 | n |
| 77920 | IIEES | GHIR | N | 4249.5 | 0.59 | 2011-02-13 11:56:57 | 2011-02-13 12:17:00 | n |
| 77921 | IIEES | BNDS | E | 197.8 | 0.45 | 2011-02-13 11:58:31 | 2011-02-13 12:17:00 | n |
| 77922 | IIEES | KRBR | E | 305.4 | 0.64 | 2011-02-13 11:58:19 | 2011-02-13 12:17:00 | n |
| 77923 | IIEES | KRBR | N | 239 | 0.64 | 2011-02-13 11:58:32 | 2011-02-13 12:17:00 | n |
| 77924 | IIEES | SHGR | N | 203.6 | 0.55 | 2011-02-13 11:58:28 | 2011-02-13 12:17:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pg | E | 2011-02-13 11:56:31 | 0 | y | 102 | 160 | |||
| IIEES | BNDS | Z | Pn | E | 2011-02-13 11:57:11 | 0 | y | 397 | 118 | |||
| IIEES | NASN | Z | Pn | E | 2011-02-13 11:57:12 | -0.2 | y | 405 | 2 | |||
| IIEES | KRBR | Z | Pn | E | 2011-02-13 11:57:13 | -0.1 | y | 410 | 76 | |||
| IIEES | SHGR | Z | Pn | E | 2011-02-13 11:57:23 | -0.1 | y | 493 | 313 | |||
| IIEES | KHMZ | Z | Pn | E | 2011-02-13 11:57:33 | 0.3 | y | 569 | 334 | |||
| IIEES | ASAO | Z | Pn | E | 2011-02-13 11:57:42 | 0.2 | y | 648 | 338 | |||
| IIEES | TABS | Z | Pn | E | 2011-02-13 11:57:43 | 0.2 | y | 656 | 39 | |||
| IIEES | SHRO | Z | Pn | E | 2011-02-13 11:58:04 | 0 | y | 824 | 22 | |||
| IIEES | SNGE | Z | Pn | E | 2011-02-13 11:58:04 | -0.3 | y | 827 | 324 | |||
| IIEES | SHRT | Z | Pn | E | 2011-02-13 11:58:11 | 0.1 | y | 882 | 54 | |||
