Event Specification
Magnitude |
3.7 |
| Date & Time (UTC) | 2011-09-07 17:40:04.4 |
| Date & Time (Local) | 1390/6/16 22:10:04.4 |

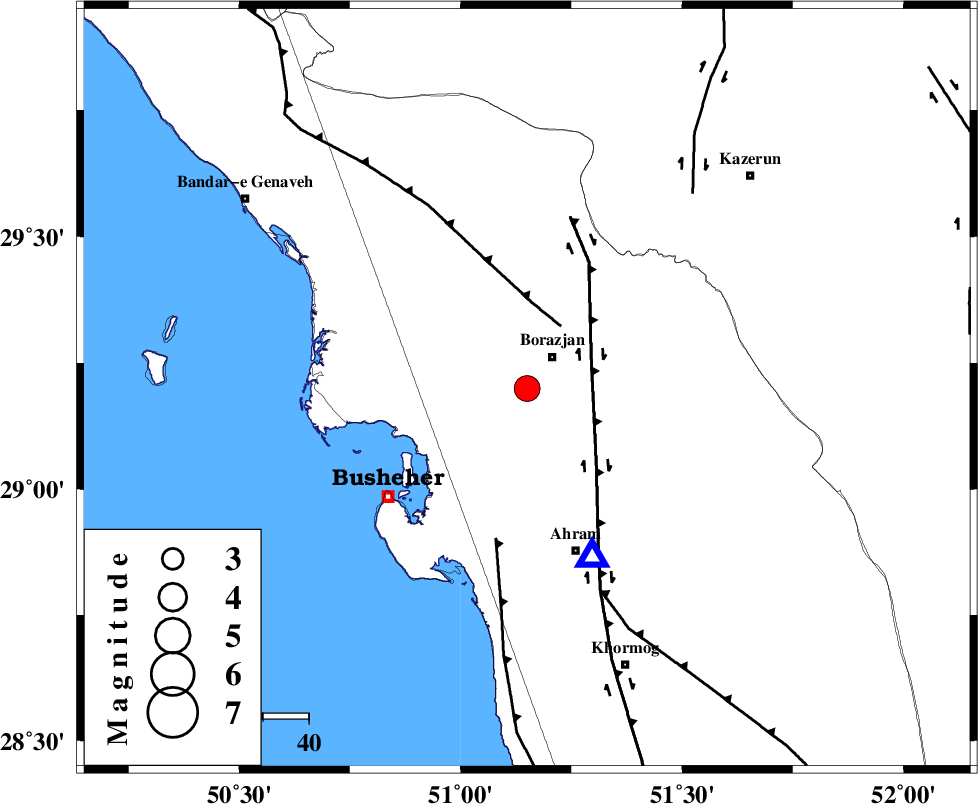

| Location | Lat:29.2 Lon: 51.15 |
| Region | Bushehr Province, 8 km Borazjan |
Nearest Cities |
|
| 6 km North of Sarkareh, Bushehr Province | |
| 9 km of Borazjan, Bushehr Province | |
| 12 km of Ziyarat, Bushehr Province | |
| 20 km South of Nazar aqa, Bushehr Province | |
| 20 km South of Saedabad, Bushehr Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| ZFF3 (Length: 125 km) , Distance to epicenter: 16 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 16 km | |
| ZFF2 (Length: 84 km) , Distance to epicenter: 34 km | |
| Number of Phases | 7 |
| RMS | 0 |
| Number of Stations | 5 |
| Error in Latitude | >2 km |
| Error in Longitude | 1.9 km |
| Error in Depth | 4.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 80199 | IIEES | AHRM | N | 8510.8 | 0.64 | 2011-09-07 17:40:19 | 2011-09-07 05:54:00 | n |
| 80200 | IIEES | GHIR | E | 640.6 | 0.36 | 2011-09-07 17:41:07 | 2011-09-07 05:54:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2011-09-07 17:40:11 | -0.03 | y | 39.9 | 159 | |||
| IIEES | AHRM | N | Sg | E | 2011-09-07 17:40:17 | 0.01 | y | 39.9 | 159 | |||
| IIEES | GHIR | Z | Pn | E | 2011-09-07 17:40:37 | -0.01 | y | 206 | 119 | |||
| IIEES | GHIR | E | Sg | E | 2011-09-07 17:41:03 | 0.01 | y | 206 | 119 | |||
| IIEES | NASN | Z | Pn | E | 2011-09-07 17:41:05 | -0.02 | y | 429 | 21 | |||
| IIEES | KHMZ | Z | Pn | E | 2011-09-07 17:41:16 | -0.01 | y | 516 | 348 | |||
| IIEES | SNGE | Z | Pn | E | 2011-09-07 17:41:44 | 0.07 | y | 745 | 332 | |||
