Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2011-11-22 01:54:24.6 |
| Date & Time (Local) | 1390/9/1 05:24:24.6 |

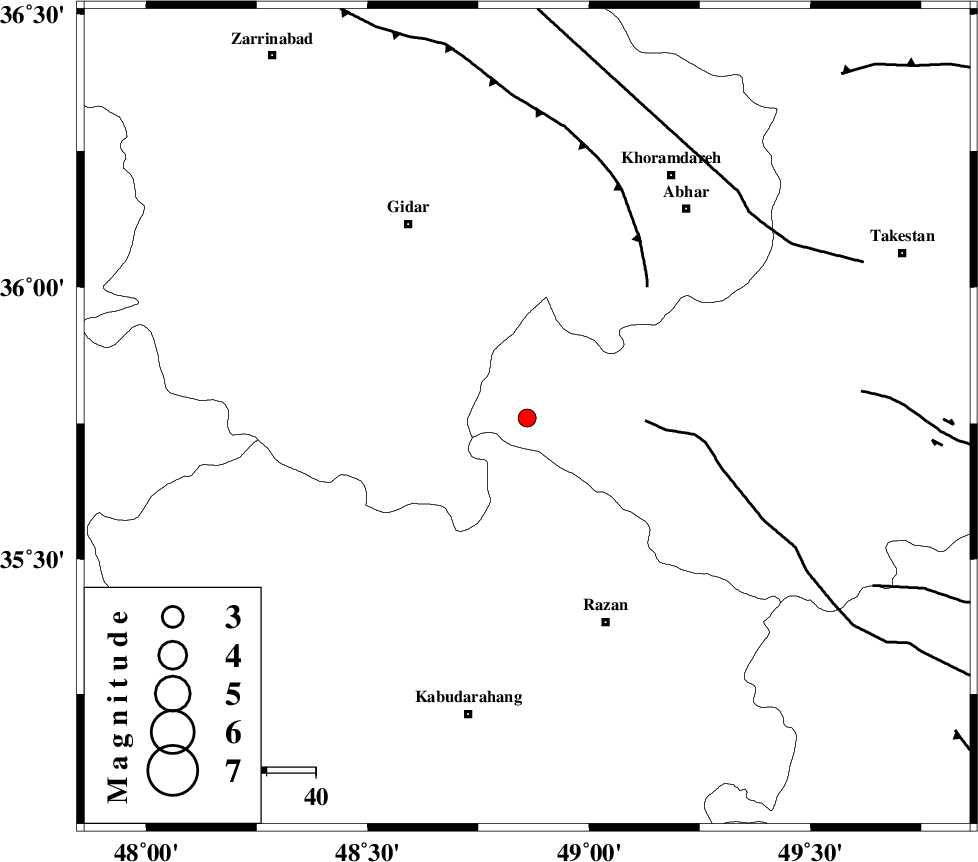

| Location | Lat:35.76 Lon: 48.86 |
| Region | Ghazvin Province, 45 km North-West of Razan |
Nearest Cities |
|
| 19 km North East of Kahla, Zanjan Province | |
| 27 km North of Khorandeh, Hamedan Province | |
| 35 km East of Zarrinabad, Zanjan Province | |
| 36 km North of Damag, Hamedan Province | |
| 36 km North East of Babanazar, Hamedan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 24 km | |
| SOLTANIYEH_F (Length: 119 km) , Distance to epicenter: 36 km | |
| ZANJAN_F (Length: 137 km) , Distance to epicenter: 62 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >1.6 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 4.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 80765 | IIEES | SNGE | N | 86.8 | 0.37 | 2011-11-22 01:55:12 | 2011-11-22 01:07:00 | n |
| 80766 | IIEES | ASAO | E | 68.9 | 0.4 | 2011-11-22 01:55:16 | 2011-11-22 01:07:00 | n |
| 80767 | IIEES | ASAO | N | 37.2 | 0.48 | 2011-11-22 01:55:17 | 2011-11-22 01:07:00 | n |
| 80768 | IIEES | THKV | N | 45 | 0.36 | 2011-11-22 01:55:26 | 2011-11-22 01:07:00 | n |
| 80769 | IIEES | THKV | E | 47.4 | 0.4 | 2011-11-22 01:55:31 | 2011-11-22 01:07:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZNJK | Z | Pg | E | 2011-11-22 01:54:42 | -0.1 | y | 102 | 351 | |||
| IIEES | SNGE | Z | Pg | E | 2011-11-22 01:54:50 | 0.04 | y | 156 | 242 | |||
| IIEES | ASAO | Z | Pg | E | 2011-11-22 01:54:53 | 0.14 | y | 171 | 141 | |||
| IIEES | ASAO | E | Sg | E | 2011-11-22 01:55:13 | -0.14 | y | 171 | 141 | |||
| IIEES | THKV | Z | Pn | E | 2011-11-22 01:54:55 | -0.01 | y | 183 | 84 | |||
| IIEES | CHTH | Z | Pn | E | 2011-11-22 01:54:58 | 0.07 | y | 205 | 85 | |||
