Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2011-12-01 07:48:09.8 |
| Date & Time (Local) | 1390/9/10 11:18:09.8 |

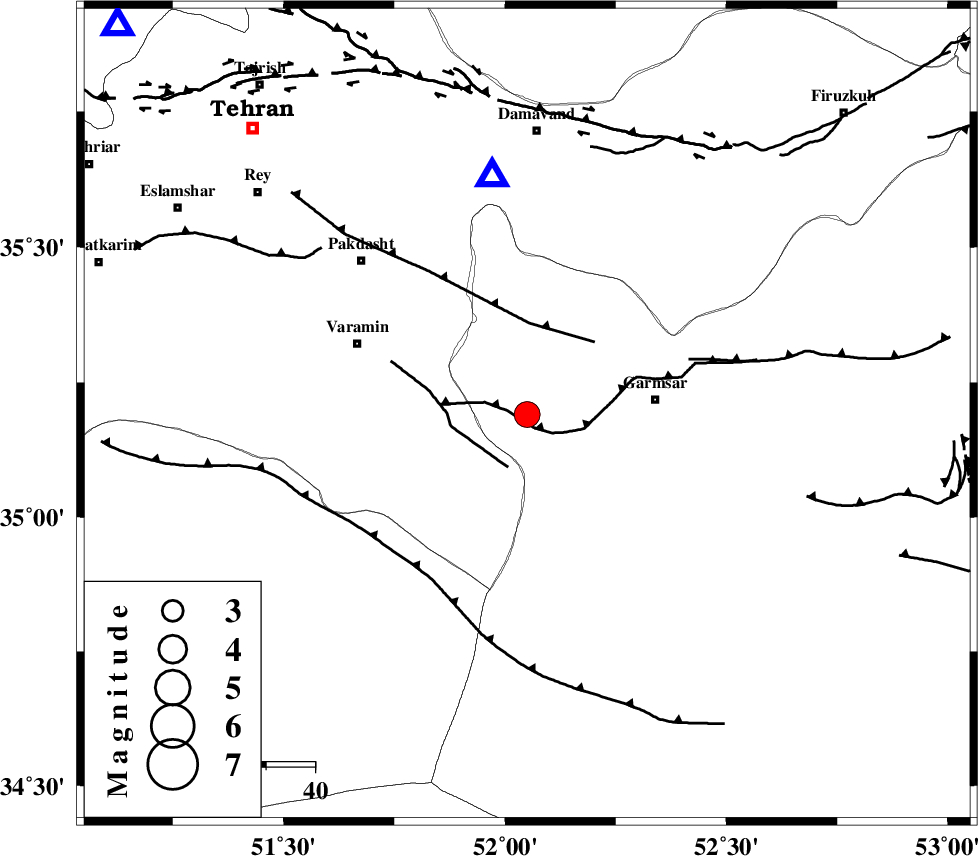

| Location | Lat:35.19 Lon: 52.05 |
| Region | Semnan Province, 26 km West of Garmsar |
Nearest Cities |
|
| 13 km South of Cheshmeh nadi, Semnan Province | |
| 17 km South of Evanekay, Semnan Province | |
| 18 km East of Shorqazi, Semnan Province | |
| 25 km West of Lajran, Semnan Province | |
| 26 km West of Garmsar, Semnan Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| GARMSAR_F (Length: 77 km) , Distance to epicenter: 3 km | |
| PISHAV_F (Length: 34 km) , Distance to epicenter: 11 km | |
| EYVANEKEY_F (Length: 74 km) , Distance to epicenter: 19 km | |
| Number of Phases | 9 |
| RMS | 0.1 |
| Number of Stations | 8 |
| Error in Latitude | >1.3 km |
| Error in Longitude | 1.9 km |
| Error in Depth | 3.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 80865 | IIEES | NASN | E | 263.3 | 0.36 | 2011-12-01 07:49:27 | 2011-12-01 07:07:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHVR | Z | Pg | E | 2011-12-01 07:48:28 | 0.12 | y | 108 | 223 | |||
| IIEES | CHTH | Z | Pg | E | 2011-12-01 07:48:29 | -0.12 | y | 115 | 314 | |||
| IIEES | THKV | Z | Pg | E | 2011-12-01 07:48:32 | 0.15 | y | 133 | 307 | |||
| IIEES | ASAO | Z | Pg | E | 2011-12-01 07:48:42 | -0.12 | y | 199 | 249 | |||
| IIEES | ASAO | E | Sg | E | 2011-12-01 07:49:06 | -0.03 | y | 199 | 249 | |||
| IIEES | KHMZ | Z | Pn | E | 2011-12-01 07:48:48 | 0.01 | y | 251 | 231 | |||
| IIEES | NASN | Z | Pn | E | 2011-12-01 07:48:51 | -0.02 | y | 275 | 165 | |||
| IIEES | ZNJK | Z | Pn | E | 2011-12-01 07:49:00 | 0.03 | y | 345 | 299 | |||
| IIEES | SHRO | Z | Pn | E | 2011-12-01 07:49:03 | -0.02 | y | 370 | 75 | |||
