Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2011-12-04 07:26:55.5 |
| Date & Time (Local) | 1390/9/13 10:56:55.5 |

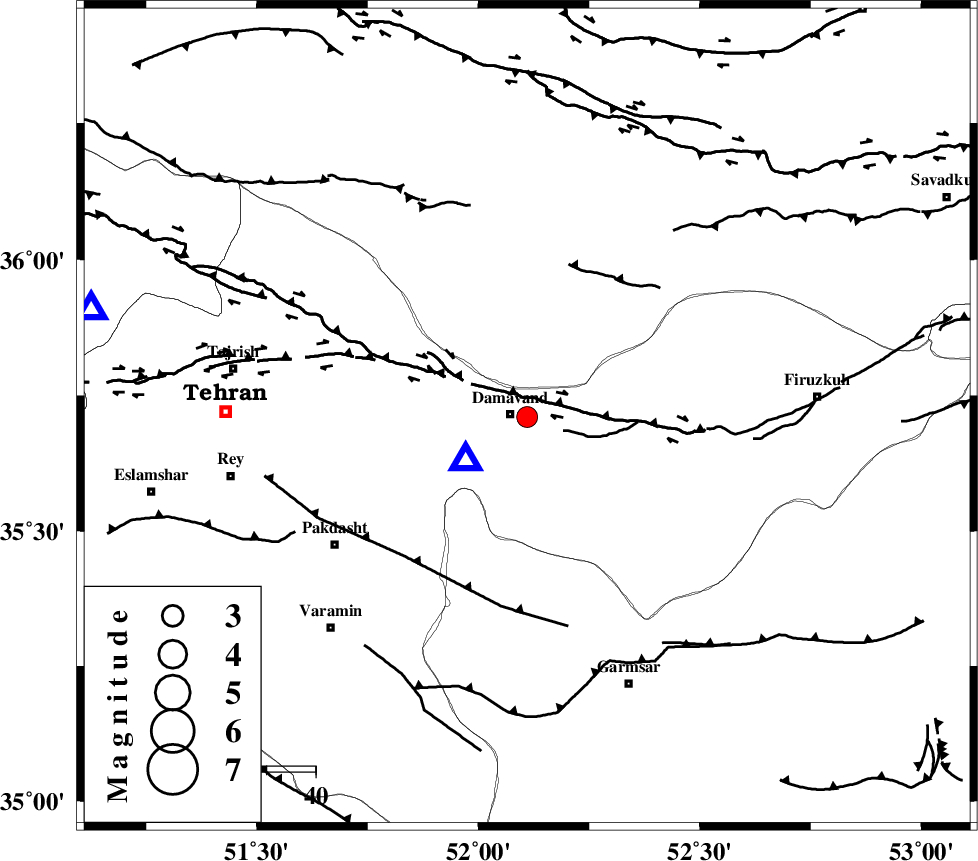

| Location | Lat:35.71 Lon: 52.11 |
| Region | Tehran Province, 4 km Damavand |
Nearest Cities |
|
| 3 km of Damavand, Tehran Province | |
| 11 km North of Ab sard, Tehran Province | |
| 11 km East of Abali, Tehran Province | |
| 11 km North of Mara, Tehran Province | |
| 19 km North of Kilan, Tehran Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MOSHA_F (Length: 234 km) , Distance to epicenter: 7 km | |
| N_TEHRAN_F4 (Length: 115 km) , Distance to epicenter: 32 km | |
| EYVANEKEY_F (Length: 74 km) , Distance to epicenter: 38 km | |
| Number of Phases | 6 |
| RMS | 0.3 |
| Number of Stations | 5 |
| Error in Latitude | >8.1 km |
| Error in Longitude | 9.3 km |
| Error in Depth | 7.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 80881 | IIEES | THKV | E | 212.6 | 0.17 | 2011-12-04 07:27:31 | 2011-12-04 06:53:00 | n |
| 80882 | IIEES | GHVR | N | 106.7 | 0.36 | 2011-12-04 07:27:49 | 2011-12-04 06:53:00 | n |
| 80883 | IIEES | GHVR | E | 425.9 | 0.38 | 2011-12-04 07:27:50 | 2011-12-04 06:53:00 | n |
| 80884 | IIEES | ASAO | E | 80.5 | 0.37 | 2011-12-04 07:28:02 | 2011-12-04 06:53:00 | n |
| 80885 | IIEES | ASAO | N | 73.7 | 0.37 | 2011-12-04 07:28:02 | 2011-12-04 06:53:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | THKV | Z | Pg | E | 2011-12-04 07:27:14 | -0.39 | y | 114 | 282 | |||
| IIEES | THKV | N | Sg | E | 2011-12-04 07:27:29 | 0.31 | y | 114 | 282 | |||
| IIEES | GHVR | Z | Pg | E | 2011-12-04 07:27:21 | -0.28 | y | 158 | 210 | |||
| IIEES | ASAO | Z | Pn | E | 2011-12-04 07:27:31 | 0.02 | y | 230 | 236 | |||
| IIEES | KHMZ | Z | Pn | E | 2011-12-04 07:27:39 | 0.09 | y | 294 | 223 | |||
| IIEES | NASN | Z | Pn | E | 2011-12-04 07:27:44 | 0.29 | y | 330 | 169 | |||
