Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2011-12-14 01:50:17.1 |
| Date & Time (Local) | 1390/9/23 05:20:17.1 |
| Location | Lat:32.42 Lon: 50.14 |
| Region | Chaharmahal Bakhtiari Province, 5 km Chelgard |
Nearest Cities |
|
| 5 km of Chelgard, Chaharmahal Bakhtiari Province | |
| 20 km South West of Kukanak, Esfahan Province | |
| 33 km South West of Organ, Esfahan Province | |
| 33 km North West of Babaheydar, Chaharmahal Bakhtiari Province | |
| 36 km South of Ghale? sorkh, Esfahan Province | |
| Depth | 14 km |
| Agency | |

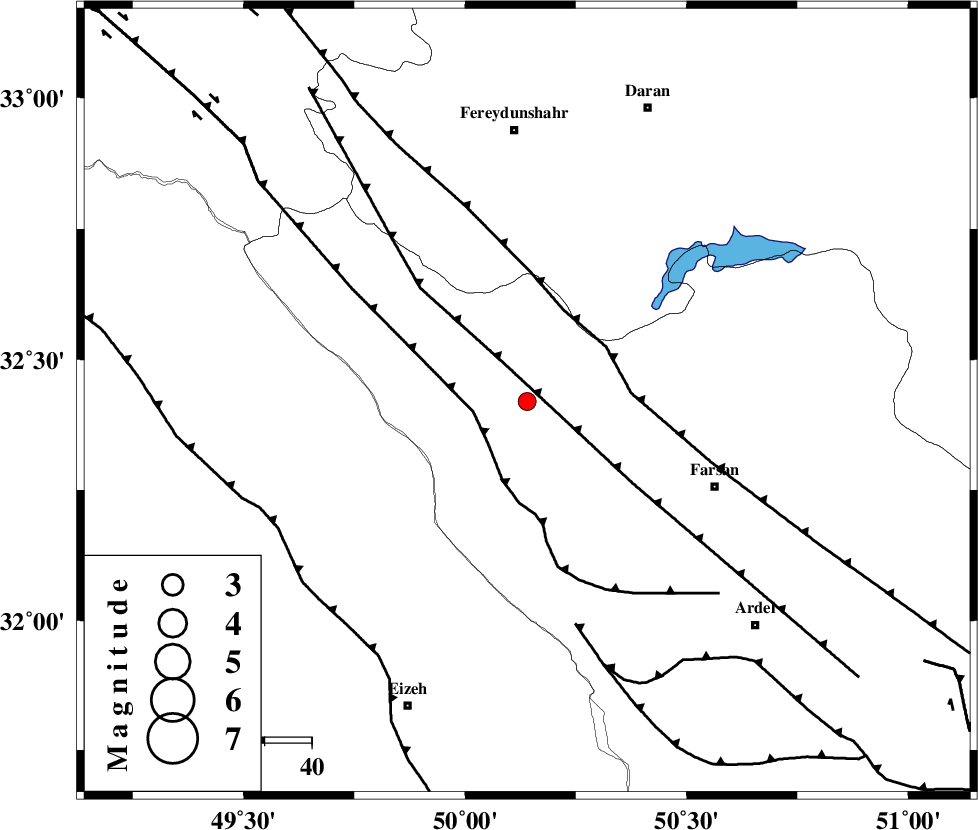

Faults within 150 km: |
|
| ARDAL_F (Length: 170 km) , Distance to epicenter: 10 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 12 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 20 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >3.1 km |
| Error in Longitude | 6 km |
| Error in Depth | 5.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 80994 | IIEES | SHGR | E | 98 | 0.52 | 2011-12-14 01:51:06 | 2011-12-14 02:54:00 | n |
| 80995 | IIEES | SHGR | N | 102.4 | 0.36 | 2011-12-14 01:51:06 | 2011-12-14 02:54:00 | n |
| 80996 | IIEES | KHMZ | E | 51.9 | 0.4 | 2011-12-14 01:51:07 | 2011-12-14 02:54:00 | n |
| 80997 | IIEES | ASAO | E | 34.9 | 0.52 | 2011-12-14 01:51:34 | 2011-12-14 02:54:00 | n |
| 80998 | IIEES | ASAO | N | 35 | 0.68 | 2011-12-14 01:51:35 | 2011-12-14 02:54:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2011-12-14 01:50:39 | 0.09 | y | 131 | 255 | |||
| IIEES | KHMZ | Z | Pg | E | 2011-12-14 01:50:41 | -0.24 | y | 147 | 354 | |||
| IIEES | KHMZ | E | Sg | E | 2011-12-14 01:50:59 | 0.14 | y | 147 | 354 | |||
| IIEES | GHVR | Z | Pn | E | 2011-12-14 01:50:56 | 0.11 | y | 250 | 24 | |||
| IIEES | SNGE | Z | Pn | E | 2011-12-14 01:51:13 | -0.12 | y | 393 | 320 | |||
