Event Specification
Magnitude |
3.8 |
| Date & Time (UTC) | 2011-12-28 10:23:48.8 |
| Date & Time (Local) | 1390/10/7 13:53:48.8 |

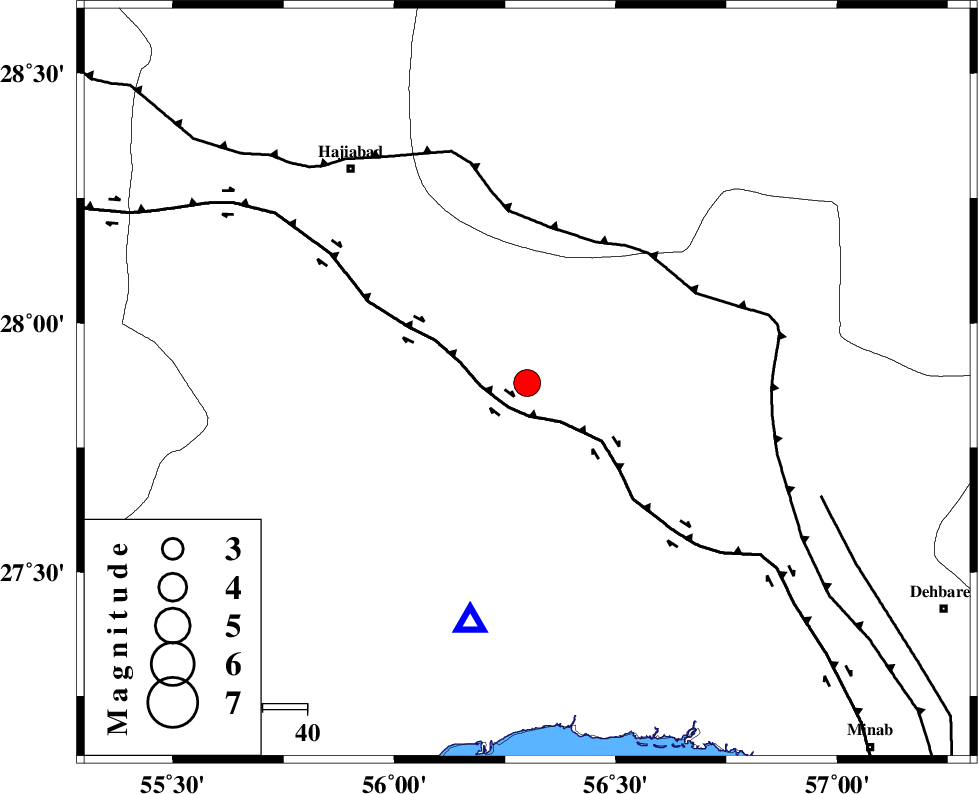

| Location | Lat:27.88 Lon: 56.3 |
| Region | Hormozgan Province, 77 km North of Bandar-e abbas |
Nearest Cities |
|
| 16 km South of Fareqan, Hormozgan Province | |
| 48 km North East of Fin, Hormozgan Province | |
| 62 km South East of Hajiabad, Hormozgan Province | |
| 62 km South of Arzuieeh, Kerman Province | |
| 65 km South of Shahmaran, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| HZF2 (Length: 437 km) , Distance to epicenter: 7 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 35 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 70 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >1.1 km |
| Error in Longitude | 2.5 km |
| Error in Depth | 3.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 81155 | IIEES | BNDS | E | 7824.9 | 0.15 | 2011-12-28 10:24:09 | 2011-12-28 09:43:00 | n |
| 81156 | IIEES | BNDS | N | 10597.5 | 0.39 | 2011-12-28 10:24:12 | 2011-12-28 09:43:00 | n |
| 81157 | IIEES | KRBR | N | 550.7 | 0.64 | 2011-12-28 10:24:58 | 2011-12-28 09:43:00 | n |
| 81158 | IIEES | GHIR | N | 222.1 | 0.6 | 2011-12-28 10:25:45 | 2011-12-28 09:43:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2011-12-28 10:23:58 | 0.02 | y | 54.4 | 193 | |||
| IIEES | KRBR | Z | Pn | E | 2011-12-28 10:24:26 | 0.1 | y | 238 | 11 | |||
| IIEES | KRBR | N | Sg | E | 2011-12-28 10:24:56 | -0.04 | y | 238 | 11 | |||
| IIEES | GHIR | Z | P | E | 2011-12-28 10:24:37 | -0.05 | y | 328 | 279 | |||
| IIEES | CHBR | Z | Pn | E | 2011-12-28 10:24:56 | -0.07 | y | 487 | 120 | |||
