Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2012-01-09 08:18:45.6 |
| Date & Time (Local) | 1390/10/19 11:48:45.6 |

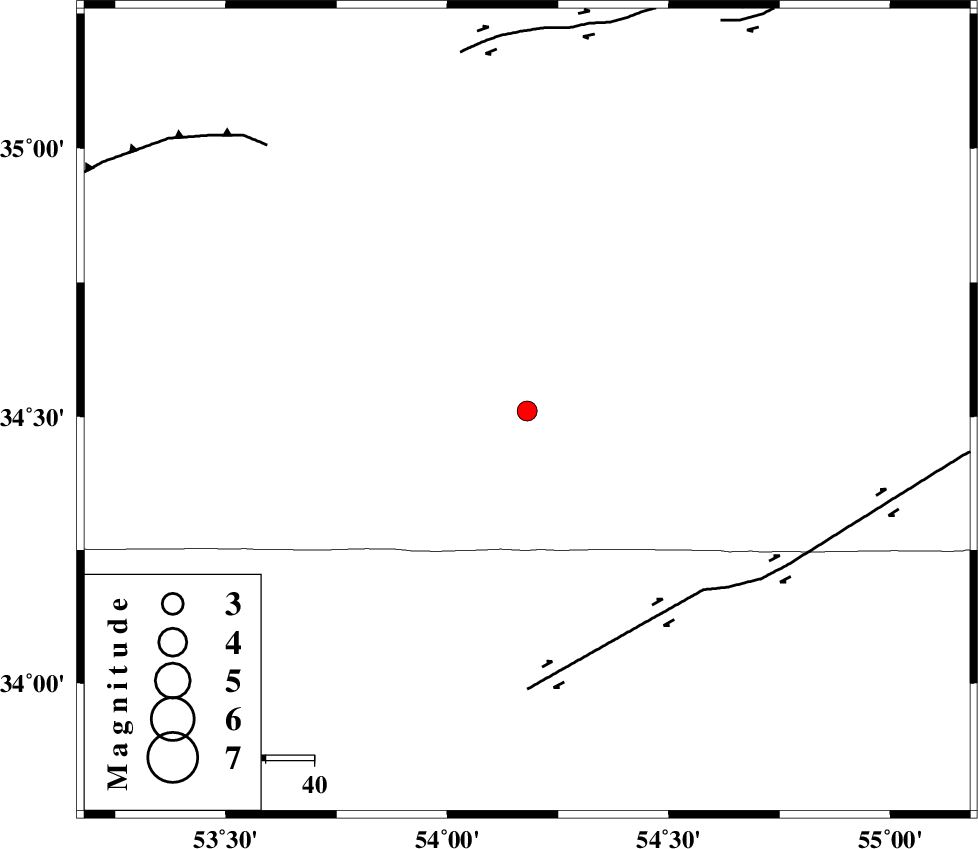

| Location | Lat:34.51 Lon: 54.18 |
| Region | Semnan Province, 184 km South-West of Damghan |
Nearest Cities |
|
| 56 km North West of Jondaq, Esfahan Province | |
| 101 km North West of Chupanan, Esfahan Province | |
| 102 km North West of Farrokhi, Esfahan Province | |
| 117 km North West of Khur, Esfahan Province | |
| 122 km North East of Maedan, Esfahan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DORUNEH_F (Length: 713 km) , Distance to epicenter: 52 km | |
| TORUD_F (Length: 136 km) , Distance to epicenter: 76 km | |
| KUH_E_GUGERD_F (Length: 73 km) , Distance to epicenter: 77 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >2.5 km |
| Error in Longitude | 3.7 km |
| Error in Depth | 9.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 81302 | IIEES | NASN | N | 58.3 | 0.48 | 2012-01-09 08:19:55 | 2012-01-09 07:45:00 | n |
| 81303 | IIEES | SHRO | N | 93.5 | 0.54 | 2012-01-09 08:19:56 | 2012-01-09 07:45:00 | n |
| 81304 | IIEES | SHRO | E | 51.2 | 0.4 | 2012-01-09 08:20:05 | 2012-01-09 07:45:00 | n |
| 81305 | IIEES | GHVR | N | 35.8 | 0.45 | 2012-01-09 08:20:13 | 2012-01-09 07:45:00 | n |
| 81306 | IIEES | GHVR | E | 87.2 | 0.57 | 2012-01-09 08:20:13 | 2012-01-09 07:45:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | NASN | Z | Pn | E | 2012-01-09 08:19:21 | -0.04 | y | 229 | 214 | |||
| IIEES | SHRO | Z | Pn | E | 2012-01-09 08:19:22 | -0.06 | y | 235 | 45 | |||
| IIEES | TABS | Z | Pn | E | 2012-01-09 08:19:29 | 0.15 | y | 288 | 109 | |||
| IIEES | TABS | N | Sg | E | 2012-01-09 08:20:06 | -0.06 | y | 288 | 109 | |||
| IIEES | MRVT | Z | Pn | E | 2012-01-09 08:19:41 | 0.02 | y | 389 | 26 | |||
