Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2012-01-09 18:11:59.9 |
| Date & Time (Local) | 1390/10/19 21:41:59.9 |

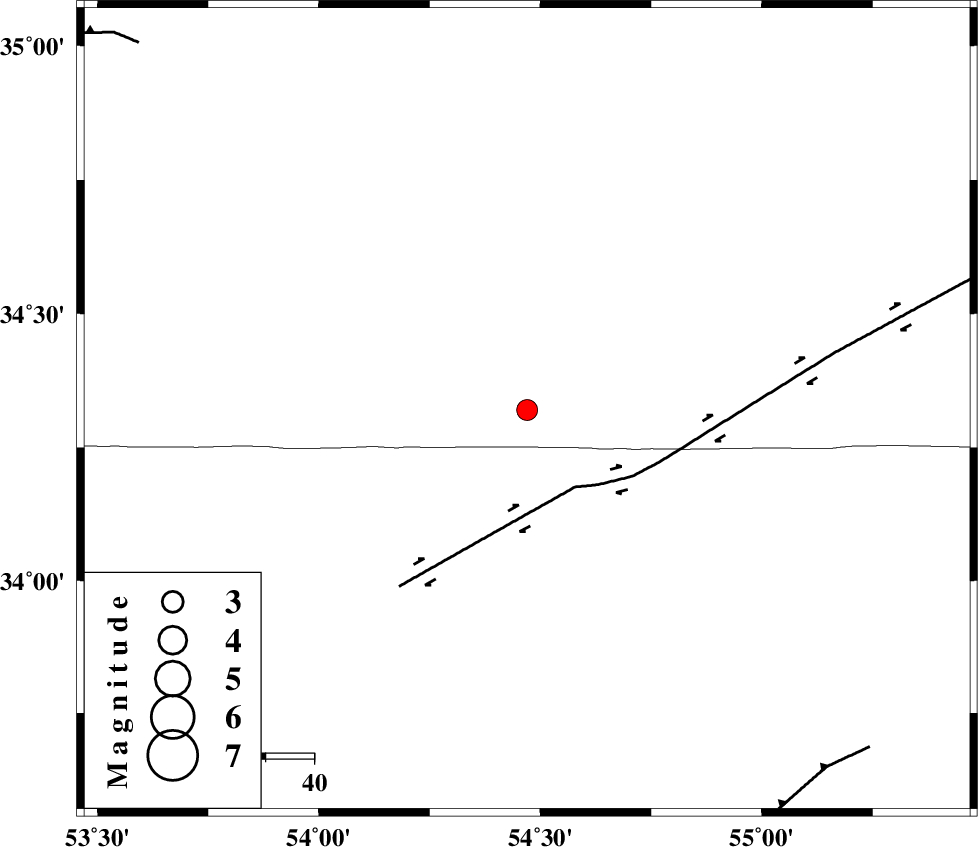

| Location | Lat:34.32 Lon: 54.47 |
| Region | Semnan Province, 205 km South-East of Damghan |
Nearest Cities |
|
| 31 km North of Jondaq, Esfahan Province | |
| 69 km North West of Farrokhi, Esfahan Province | |
| 78 km North of Chupanan, Esfahan Province | |
| 83 km North West of Khur, Esfahan Province | |
| 111 km North West of Mehranjan, Esfahan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| DORUNEH_F (Length: 713 km) , Distance to epicenter: 19 km | |
| BIABANAK_F (Length: 162 km) , Distance to epicenter: 97 km | |
| TORUD_F (Length: 136 km) , Distance to epicenter: 103 km | |
| Number of Phases | 5 |
| RMS | 0.4 |
| Number of Stations | 5 |
| Error in Latitude | >4.5 km |
| Error in Longitude | 3 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 81307 | IIEES | NASN | N | 64.4 | 0.44 | 2012-01-09 18:13:07 | 2012-01-09 05:27:00 | n |
| 81308 | IIEES | SHRO | N | 160.6 | 0.48 | 2012-01-09 18:13:10 | 2012-01-09 05:27:00 | n |
| 81309 | IIEES | SHRO | E | 104.3 | 0.36 | 2012-01-09 18:13:15 | 2012-01-09 05:27:00 | n |
| 81310 | IIEES | TABS | N | 62.3 | 0.4 | 2012-01-09 18:13:23 | 2012-01-09 05:27:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | NASN | Z | Pn | E | 2012-01-09 18:12:35 | -0.27 | y | 229 | 223 | |||
| IIEES | SHRO | Z | Pn | E | 2012-01-09 18:12:36 | -0.55 | y | 234 | 36 | |||
| IIEES | TABS | Z | Pn | E | 2012-01-09 18:12:39 | 0.33 | y | 256 | 106 | |||
| IIEES | CHTH | Z | Pn | E | 2012-01-09 18:12:51 | 0.34 | y | 352 | 301 | |||
| IIEES | MRVT | Z | Pn | E | 2012-01-09 18:12:57 | 0.25 | y | 398 | 21 | |||
