Event Specification
Magnitude |
4.1 |
| Date & Time (UTC) | 2012-01-11 06:06:27.3 |
| Date & Time (Local) | 1390/10/21 09:36:27.3 |
| Location | Lat:28.71 Lon: 54.3 |
| Region | Fars Province, 23 km West of Darab |
Nearest Cities |
|
| 6 km of Madoan, Fars Province | |
| 11 km North West of Nasrovan, Fars Province | |
| 22 km West of Shahnan, Fars Province | |
| 24 km West of Darab, Fars Province | |
| 25 km West of Sang-e charak, Fars Province | |
| Depth | 23 km |
| Agency | |

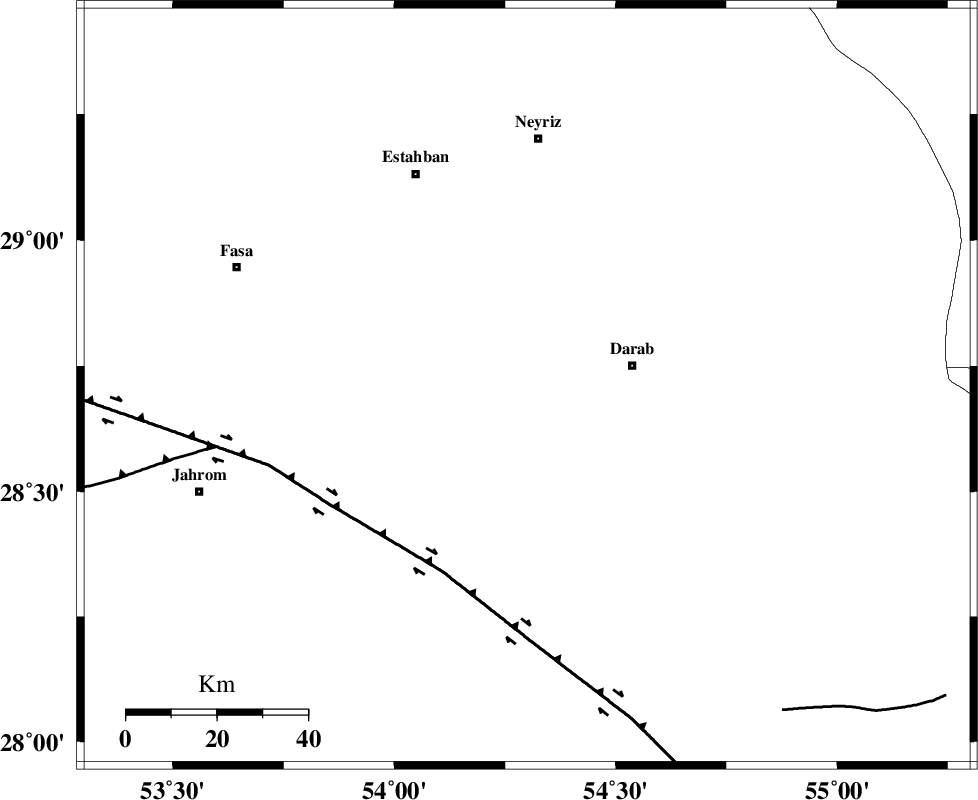

Faults within 150 km: |
|
| HZF1 (Length: 102 km) , Distance to epicenter: 14 km | |
| BAKHTEGAN_F (Length: 94 km) , Distance to epicenter: 20 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 41 km | |
| Number of Phases | 10 |
| RMS | 0.3 |
| Number of Stations | 11 |
| Error in Latitude | >3.8 km |
| Error in Longitude | 4 km |
| Error in Depth | 9.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 81322 | IIEES | GHIR | N | 3964.9 | 0.4 | 2012-01-11 06:07:19 | 2012-01-11 05:34:00 | n |
| 81323 | IIEES | BNDS | N | 1533.4 | 0.36 | 2012-01-11 06:07:40 | 2012-01-11 05:34:00 | n |
| 81324 | IIEES | BNDS | E | 1478.9 | 0.4 | 2012-01-11 06:07:43 | 2012-01-11 05:34:00 | n |
| 81325 | IIEES | KRBR | N | 952.5 | 0.47 | 2012-01-11 06:07:55 | 2012-01-11 05:34:00 | n |
| 81326 | IIEES | KRBR | E | 771.2 | 0.58 | 2012-01-11 06:07:57 | 2012-01-11 05:34:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pg | E | 2012-01-11 06:06:49 | 0 | y | 137 | 250 | |||
| IIEES | BNDS | Z | Pn | E | 2012-01-11 06:07:03 | -0.12 | y | 234 | 128 | |||
| IIEES | AHRM | Z | Pn | E | 2012-01-11 06:07:10 | 0.3 | y | 294 | 274 | |||
| IIEES | NASN | Z | Pn | E | 2012-01-11 06:07:33 | -0.2 | y | 476 | 343 | |||
| IIEES | TABS | Z | Pn | E | 2012-01-11 06:07:50 | 0.54 | y | 610 | 25 | |||
| IIEES | SHGR | Z | Pn | E | 2012-01-11 06:07:54 | -0.42 | y | 649 | 307 | |||
| IIEES | GHVR | Z | Pn | E | 2012-01-11 06:08:01 | -0.03 | y | 703 | 336 | |||
| IIEES | ASAO | Z | Pn | E | 2012-01-11 06:08:09 | -0.05 | y | 764 | 329 | |||
| IIEES | CHTH | Z | Pn | E | 2012-01-11 06:08:20 | -0.21 | y | 853 | 340 | |||
| IIEES | GRMI | Z | Pn | E | 2012-01-11 06:09:11 | -0.2 | y | 1268 | 334 | |||
