Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2012-01-24 11:39:04.4 |
| Date & Time (Local) | 1390/11/4 15:09:04.4 |

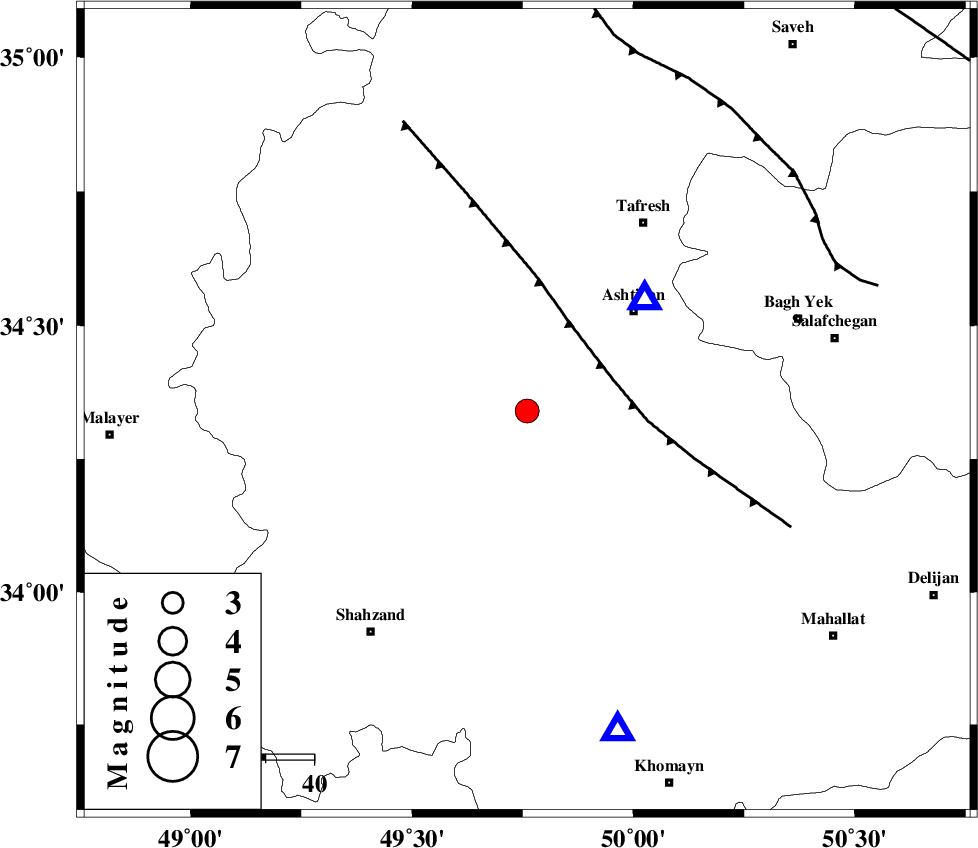

| Location | Lat:34.34 Lon: 49.76 |
| Region | Markazi Province, 29 km North of Arak |
Nearest Cities |
|
| 11 km North of Ebakabad, Markazi Province | |
| 11 km North West of Davoodabad, Markazi Province | |
| 20 km South of Farmahin, Markazi Province | |
| 24 km East of Saruq, Markazi Province | |
| 25 km North East of Marzijaran, Markazi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| TAFRESH_F (Length: 117 km) , Distance to epicenter: 19 km | |
| INDES_F (Length: 98 km) , Distance to epicenter: 71 km | |
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 102 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >1.6 km |
| Error in Longitude | 5.1 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 81564 | IIEES | ASAO | E | 2967.4 | 0.48 | 2012-01-24 11:39:21 | 2012-01-24 11:09:00 | n |
| 81565 | IIEES | ASAO | N | 2364.1 | 0.44 | 2012-01-24 11:39:21 | 2012-01-24 11:09:00 | n |
| 81566 | IIEES | KHMZ | N | 1590.6 | 0.24 | 2012-01-24 11:39:30 | 2012-01-24 11:09:00 | n |
| 81567 | IIEES | KHMZ | E | 2913.3 | 0.16 | 2012-01-24 11:39:30 | 2012-01-24 11:09:00 | n |
| 81568 | IIEES | GHVR | N | 936.2 | 0.36 | 2012-01-24 11:39:50 | 2012-01-24 11:09:00 | n |
| 81569 | IIEES | GHVR | E | 1279.1 | 0.44 | 2012-01-24 11:39:50 | 2012-01-24 11:09:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ASAO | Z | Pg | E | 2012-01-24 11:39:10 | -0.14 | y | 33.9 | 47 | |||
| IIEES | KHMZ | Z | Pg | E | 2012-01-24 11:39:16 | -0.05 | y | 69.3 | 164 | |||
| IIEES | GHVR | Z | Pg | E | 2012-01-24 11:39:27 | 0.04 | y | 138 | 83 | |||
| IIEES | THKV | Z | Pn | E | 2012-01-24 11:39:37 | 0.03 | y | 203 | 30 | |||
| IIEES | CHTH | Z | Pn | E | 2012-01-24 11:39:38 | 0.07 | y | 214 | 35 | |||
| IIEES | NASN | Z | Pn | E | 2012-01-24 11:39:53 | 0.06 | y | 331 | 120 | |||
