Event Specification
Magnitude |
3.9 |
| Date & Time (UTC) | 2012-01-27 13:11:33.6 |
| Date & Time (Local) | 1390/11/7 16:41:33.6 |

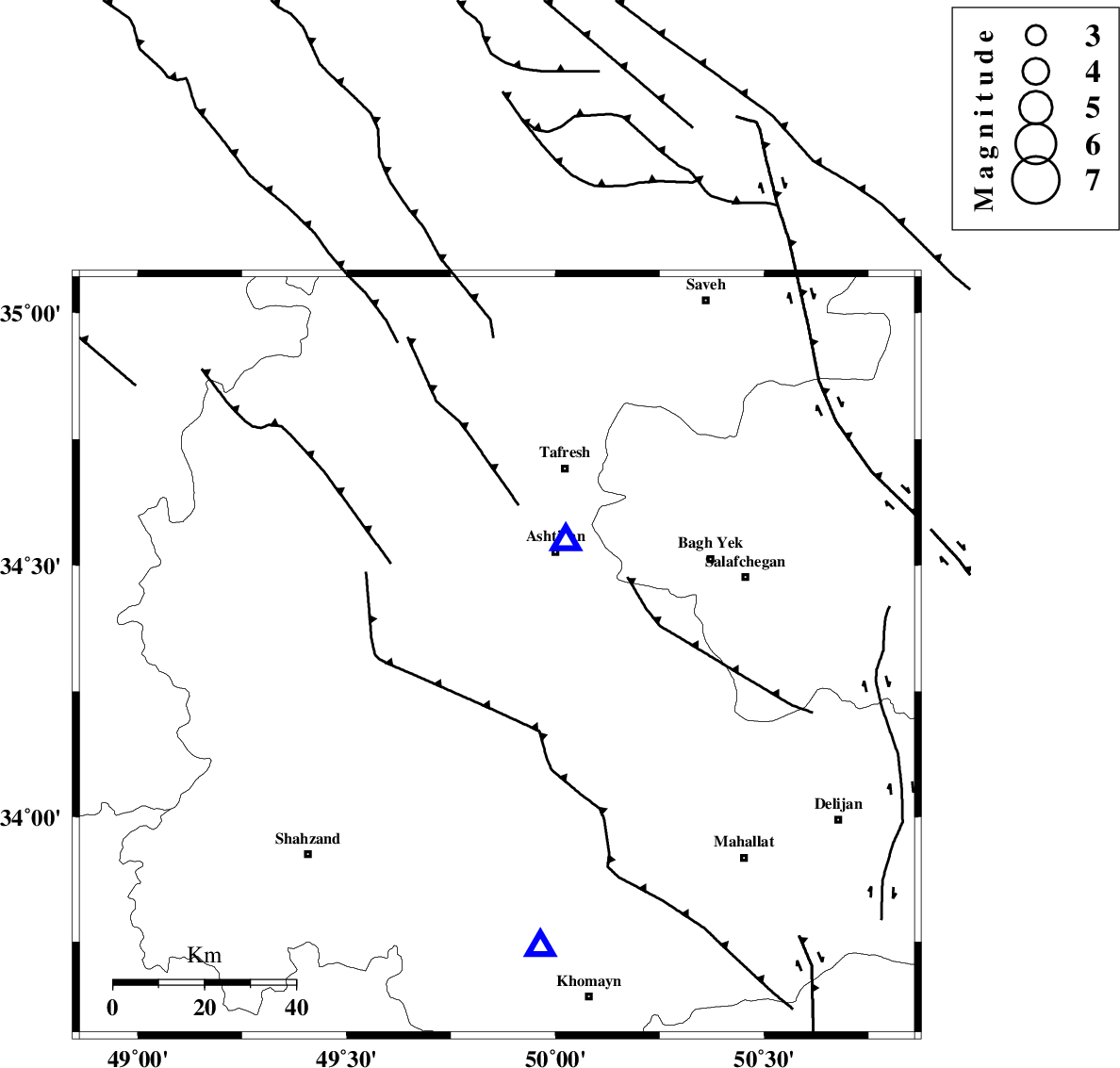

| Location | Lat:34.32 Lon: 49.86 |
| Region | Markazi Province, 27 km South-West of Ashtiyan |
Nearest Cities |
|
| 3 km North of Davoodabad, Markazi Province | |
| 16 km North East of Ebakabad, Markazi Province | |
| 21 km North West of Ebrahimabad, Markazi Province | |
| 26 km South West of Ashtiyan, Markazi Province | |
| 26 km South East of Farmahin, Markazi Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| TAFRESH_F (Length: 117 km) , Distance to epicenter: 12 km | |
| INDES_F (Length: 98 km) , Distance to epicenter: 64 km | |
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 103 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | >1.4 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 2.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 81616 | IIEES | KHMZ | N | 5823.5 | 0.12 | 2012-01-27 13:11:53 | 2012-01-27 12:28:00 | n |
| 81617 | IIEES | KHMZ | E | 8947.1 | 0.12 | 2012-01-27 13:11:53 | 2012-01-27 12:28:00 | n |
| 81618 | IIEES | GHVR | E | 2100.9 | 0.44 | 2012-01-27 13:12:13 | 2012-01-27 12:28:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ASAO | Z | Pg | E | 2012-01-27 13:11:39 | 0.1 | y | 29.9 | 31 | |||
| IIEES | KHMZ | Z | Pg | E | 2012-01-27 13:11:45 | -0.03 | y | 64.7 | 171 | |||
| IIEES | KHMZ | N | Sg | E | 2012-01-27 13:11:53 | -0.09 | y | 64.7 | 171 | |||
| IIEES | GHVR | Z | Pg | E | 2012-01-27 13:11:56 | 0.16 | y | 129 | 82 | |||
| IIEES | GHVR | E | Sg | E | 2012-01-27 13:12:12 | -0.14 | y | 129 | 82 | |||
| IIEES | THKV | Z | Pn | E | 2012-01-27 13:12:06 | -0.01 | y | 200 | 27 | |||
| IIEES | CHTH | Z | Pn | E | 2012-01-27 13:12:07 | -0.25 | y | 211 | 33 | |||
| IIEES | NASN | Z | Pn | E | 2012-01-27 13:12:22 | 0.3 | y | 322 | 121 | |||
