Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2012-01-27 13:36:38.7 |
| Date & Time (Local) | 1390/11/7 17:06:38.7 |

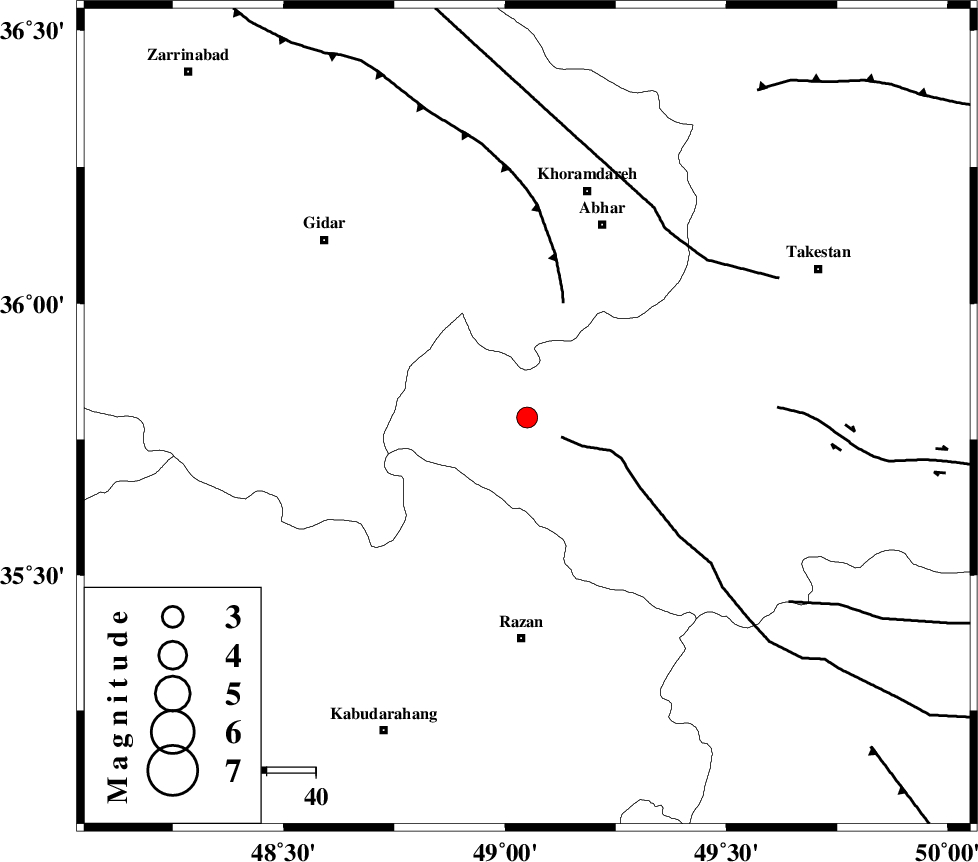

| Location | Lat:35.79 Lon: 49.05 |
| Region | Ghazvin Province, 45 km North of Razan |
Nearest Cities |
|
| 22 km North West of Ab-e garm, Ghazvin Province | |
| 28 km North West of Avaj, Ghazvin Province | |
| 31 km South West of Darsajin, Zanjan Province | |
| 32 km West of Hoseynabad, Ghazvin Province | |
| 34 km South West of Khalifeh hesar, Zanjan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 8 km | |
| SOLTANIYEH_F (Length: 119 km) , Distance to epicenter: 25 km | |
| ZANJAN_F (Length: 137 km) , Distance to epicenter: 48 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >2.1 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 3.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 81628 | IIEES | THKV | E | 119.2 | 0.48 | 2012-01-27 13:37:39 | 2012-01-27 03:28:00 | n |
| 81629 | IIEES | KHMZ | E | 186.7 | 0.92 | 2012-01-27 13:37:49 | 2012-01-27 03:28:00 | n |
| 81630 | IIEES | KHMZ | N | 72.6 | 0.52 | 2012-01-27 13:37:51 | 2012-01-27 03:28:00 | n |
| 81631 | IIEES | GHVR | E | 54.9 | 0.6 | 2012-01-27 13:38:01 | 2012-01-27 03:28:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZNJK | Z | Pg | E | 2012-01-27 13:36:56 | -0.01 | y | 103 | 342 | |||
| IIEES | ASAO | Z | Pg | E | 2012-01-27 13:37:05 | -0.12 | y | 164 | 147 | |||
| IIEES | CHTH | Z | Pg | E | 2012-01-27 13:37:09 | 0.03 | y | 188 | 85 | |||
| IIEES | KHMZ | Z | Pn | E | 2012-01-27 13:37:16 | 0.06 | y | 242 | 159 | |||
| IIEES | GHVR | Z | Pn | E | 2012-01-27 13:37:17 | 0.03 | y | 247 | 125 | |||
