Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2012-02-02 14:48:55.8 |
| Date & Time (Local) | 1390/11/13 18:18:55.8 |

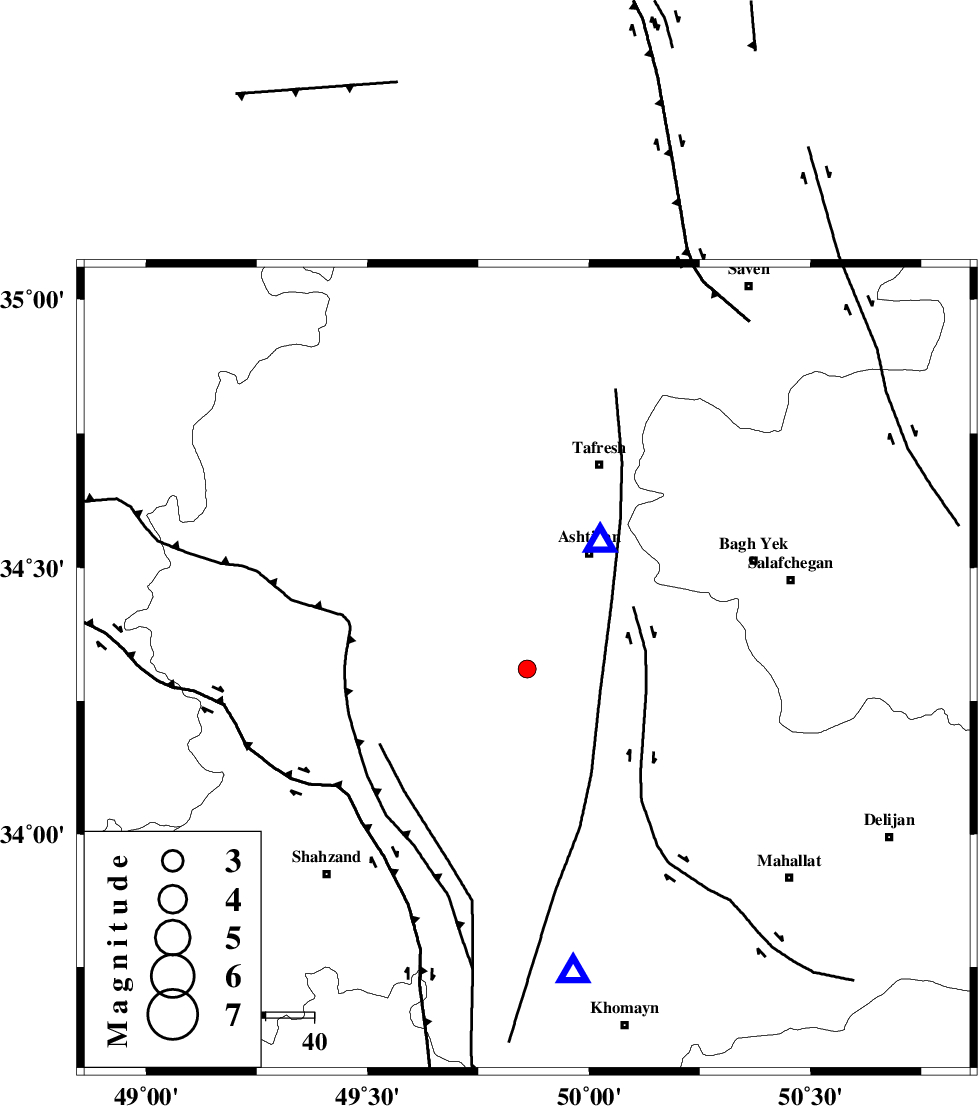

| Location | Lat:34.31 Lon: 49.86 |
| Region | Markazi Province, 28 km South-West of Ashtiyan |
Nearest Cities |
|
| 2 km North of Davoodabad, Markazi Province | |
| 15 km North East of Ebakabad, Markazi Province | |
| 21 km North West of Ebrahimabad, Markazi Province | |
| 27 km South West of Ashtiyan, Markazi Province | |
| 27 km South East of Farmahin, Markazi Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| TAFRESH_F (Length: 117 km) , Distance to epicenter: 13 km | |
| INDES_F (Length: 98 km) , Distance to epicenter: 64 km | |
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 104 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >1.8 km |
| Error in Longitude | 3.5 km |
| Error in Depth | 4.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 81705 | IIEES | KHMZ | N | 260.2 | 0.12 | 2012-02-02 14:49:15 | 2012-02-02 02:01:00 | n |
| 81706 | IIEES | KHMZ | E | 381.6 | 0.12 | 2012-02-02 14:49:16 | 2012-02-02 02:01:00 | n |
| 81707 | IIEES | GHVR | N | 111.9 | 0.32 | 2012-02-02 14:49:35 | 2012-02-02 02:01:00 | n |
| 81708 | IIEES | GHVR | E | 142.2 | 0.32 | 2012-02-02 14:49:36 | 2012-02-02 02:01:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ASAO | Z | Pg | E | 2012-02-02 14:49:01 | -0.1 | y | 30.8 | 30 | |||
| IIEES | KHMZ | Z | Pg | E | 2012-02-02 14:49:07 | 0.37 | y | 63.6 | 171 | |||
| IIEES | KHMZ | E | Sg | E | 2012-02-02 14:49:15 | -0.27 | y | 63.6 | 171 | |||
| IIEES | GHVR | Z | Pg | E | 2012-02-02 14:49:18 | 0.02 | y | 129 | 81 | |||
| IIEES | GHVR | E | Sg | E | 2012-02-02 14:49:34 | 0.04 | y | 129 | 81 | |||
| IIEES | CHTH | Z | Pn | E | 2012-02-02 14:49:30 | -0.06 | y | 212 | 33 | |||
