Event Specification
Magnitude |
1.8 |
| Date & Time (UTC) | 2012-02-23 23:00:44.1 |
| Date & Time (Local) | 1390/12/5 02:30:44.1 |

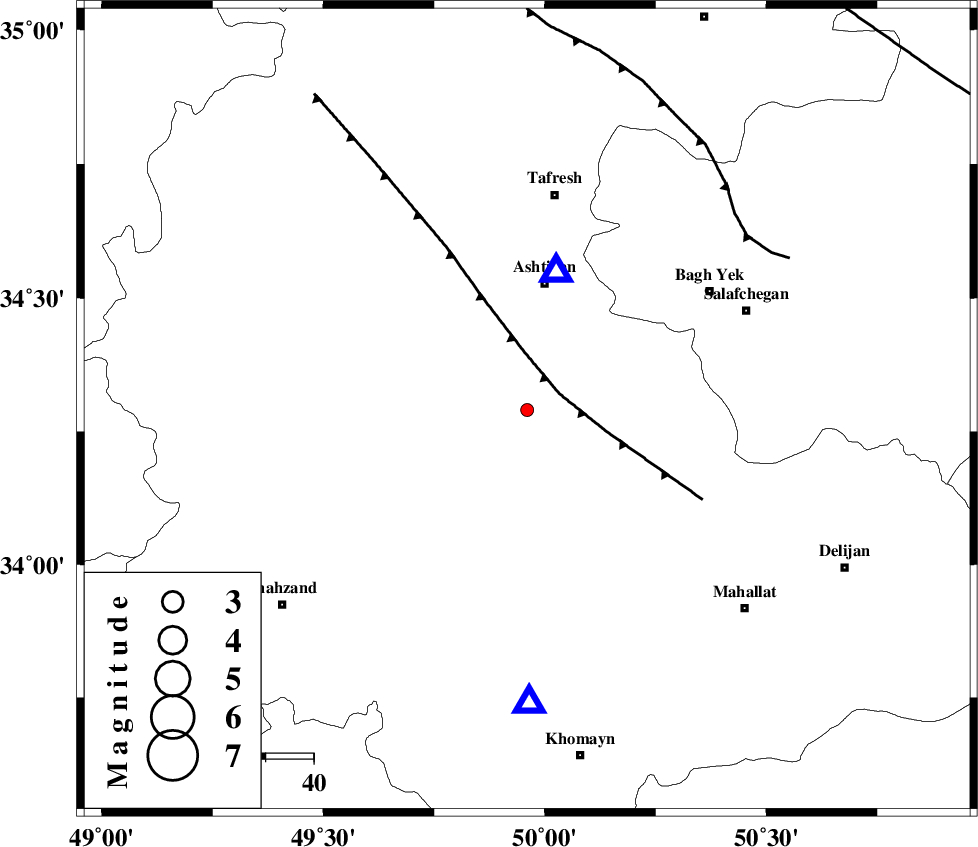

| Location | Lat:34.29 Lon: 49.96 |
| Region | Markazi Province, 26 km South of Ashtiyan |
Nearest Cities |
|
| 9 km of Davoodabad, Markazi Province | |
| 12 km North of Ebrahimabad, Markazi Province | |
| 24 km North East of Ebakabad, Markazi Province | |
| 24 km West of Salehabad, Markazi Province | |
| 27 km South of Ashtiyan, Markazi Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| TAFRESH_F (Length: 117 km) , Distance to epicenter: 7 km | |
| INDES_F (Length: 98 km) , Distance to epicenter: 58 km | |
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 106 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >1.3 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 81971 | IIEES | ASAO | N | 175 | 0.2 | 2012-02-23 23:00:54 | 2012-02-24 01:47:00 | n |
| 81972 | IIEES | ASAO | E | 195 | 0.36 | 2012-02-23 23:00:54 | 2012-02-24 01:47:00 | n |
| 81973 | IIEES | KHMZ | N | 37.9 | 0.2 | 2012-02-23 23:01:04 | 2012-02-24 01:47:00 | n |
| 81974 | IIEES | GHVR | N | 21.3 | 0.24 | 2012-02-23 23:01:23 | 2012-02-24 01:47:00 | n |
| 81975 | IIEES | GHVR | E | 20.4 | 0.36 | 2012-02-23 23:01:24 | 2012-02-24 01:47:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ASAO | Z | Pg | E | 2012-02-23 23:00:49 | 0.15 | y | 29 | 12 | |||
| IIEES | KHMZ | Z | Pg | E | 2012-02-23 23:00:55 | 0.16 | y | 61.3 | 180 | |||
| IIEES | KHMZ | N | Sg | E | 2012-02-23 23:01:03 | -0.04 | y | 61.3 | 180 | |||
| IIEES | GHVR | Z | Pg | E | 2012-02-23 23:01:06 | -0.13 | y | 120 | 80 | |||
| IIEES | SNGE | E | Pn | E | 2012-02-23 23:01:24 | -0.14 | y | 255 | 291 | |||
