Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2012-02-29 07:21:15.6 |
| Date & Time (Local) | 1390/12/10 10:51:15.6 |

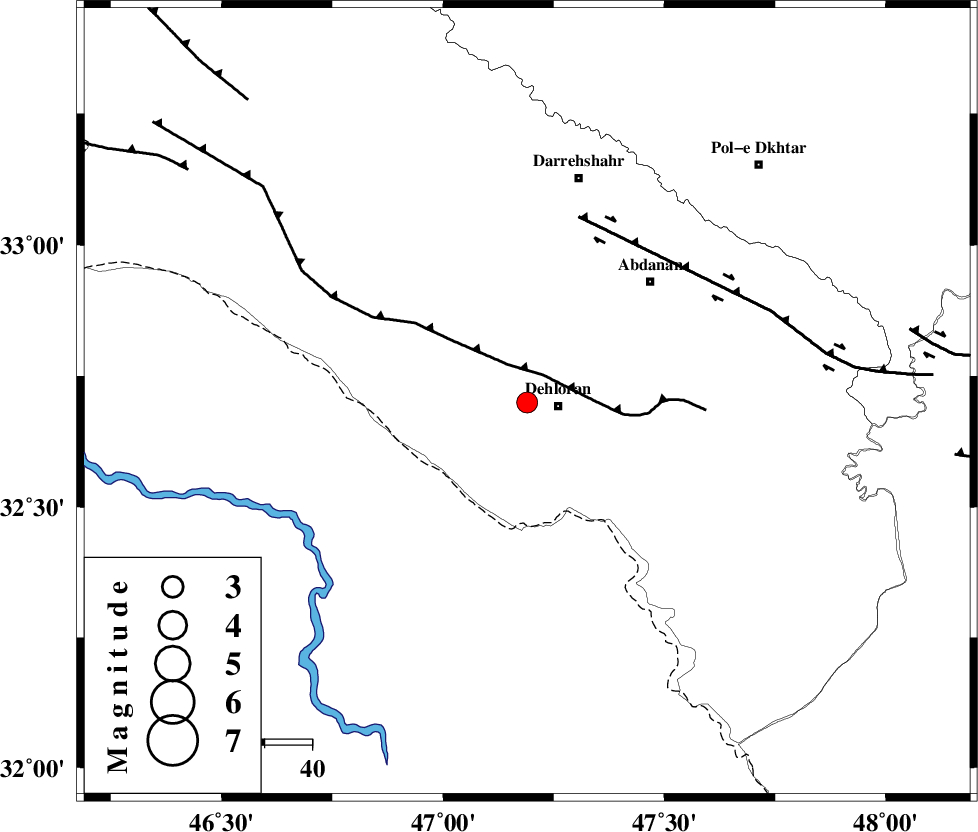

| Location | Lat:32.7 Lon: 47.19 |
| Region | Ilam Province, 7 km Dehloran |
Nearest Cities |
|
| 7 km North of Dehloran, Ilam Province | |
| 23 km North West of Musian, Ilam Province | |
| 24 km South East of Bishehzar, Ilam Province | |
| 36 km South West of Abdanan, Ilam Province | |
| 41 km South West of Sarabbagh, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 7 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 41 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 82 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >3.9 km |
| Error in Longitude | 9.2 km |
| Error in Depth | 4.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 82086 | IIEES | SNGE | E | 126.5 | 0.53 | 2012-02-29 07:22:41 | 2012-02-29 06:46:00 | n |
| 82087 | IIEES | SNGE | N | 56.3 | 0.44 | 2012-02-29 07:22:44 | 2012-02-29 06:46:00 | n |
| 82088 | IIEES | ASAO | N | 34.9 | 0.64 | 2012-02-29 07:23:02 | 2012-02-29 06:46:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2012-02-29 07:21:42 | -0.15 | y | 166 | 113 | |||
| IIEES | SNGE | Z | Pn | E | 2012-02-29 07:21:56 | 0.04 | y | 265 | 3 | |||
| IIEES | SNGE | E | Sg | E | 2012-02-29 07:22:30 | -0.09 | y | 265 | 3 | |||
| IIEES | KHMZ | Z | Pn | E | 2012-02-29 07:21:58 | 0.26 | y | 283 | 65 | |||
| IIEES | GHVR | Z | Pn | E | 2012-02-29 07:22:16 | -0.06 | y | 425 | 61 | |||
