Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2012-03-11 18:24:20.4 |
| Date & Time (Local) | 1390/12/21 21:54:20.4 |

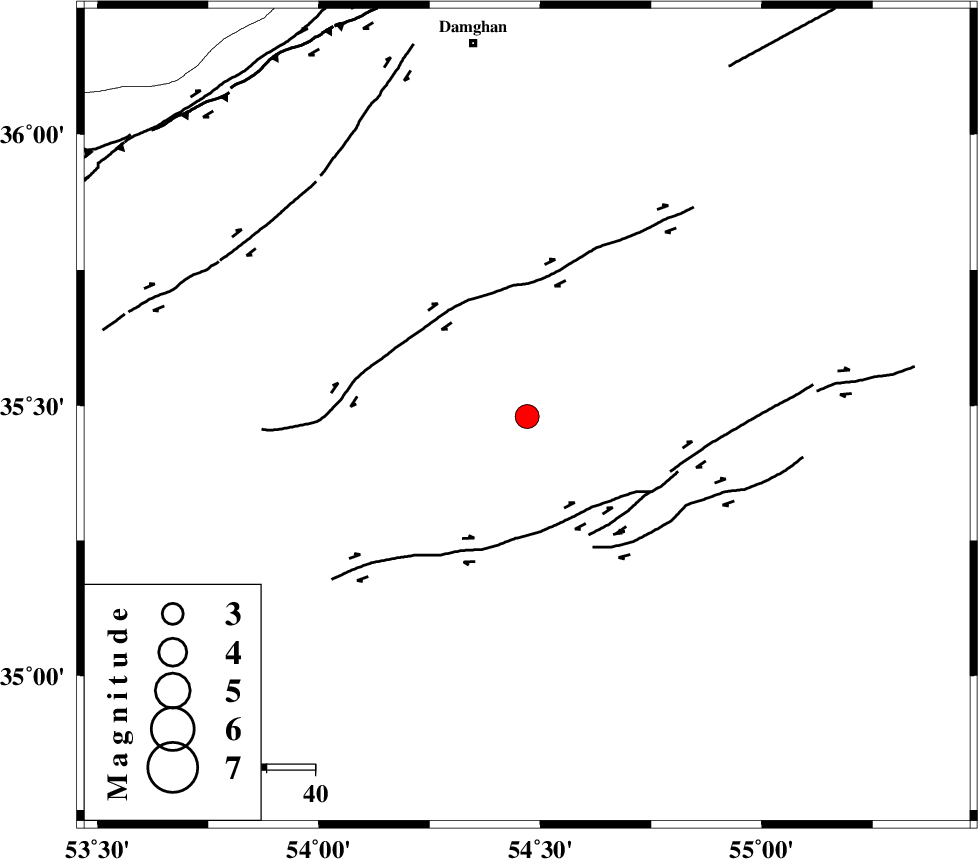

| Location | Lat:35.48 Lon: 54.47 |
| Region | Semnan Province, 77 km South-East of Damghan |
Nearest Cities |
|
| 67 km South East of Amirabad, Semnan Province | |
| 70 km South East of Seydabad, Semnan Province | |
| 77 km South East of Darvar, Semnan Province | |
| 77 km South East of Damghan, Semnan Province | |
| 82 km South of Mehmandust, Semnan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| TORUD_F (Length: 136 km) , Distance to epicenter: 22 km | |
| ATARI_F (Length: 185 km) , Distance to epicenter: 73 km | |
| MEYAMEY_F (Length: 141 km) , Distance to epicenter: 83 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >1.2 km |
| Error in Longitude | 1.1 km |
| Error in Depth | 2.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 82286 | IIEES | DAMV | E | 223.8 | 0.32 | 2012-03-11 18:25:31 | 2012-03-11 05:52:00 | n |
| 82287 | IIEES | THKV | E | 112.5 | 0.6 | 2012-03-11 18:25:59 | 2012-03-11 05:52:00 | n |
| 82288 | IIEES | THKV | N | 146.6 | 0.44 | 2012-03-11 18:26:01 | 2012-03-11 05:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRO | Z | Pg | E | 2012-03-11 18:24:45 | -0.07 | y | 151 | 67 | |||
| IIEES | DAMV | Z | Pn | E | 2012-03-11 18:24:56 | 0.01 | y | 227 | 275 | |||
| IIEES | DAMV | E | Sg | E | 2012-03-11 18:25:24 | -0.04 | y | 227 | 275 | |||
| IIEES | CHTH | Z | Pn | E | 2012-03-11 18:25:06 | 0.09 | y | 306 | 280 | |||
| IIEES | TABS | Z | Pn | E | 2012-03-11 18:25:07 | 0.06 | y | 317 | 129 | |||
| IIEES | NASN | Z | Pn | E | 2012-03-11 18:25:09 | -0.03 | y | 334 | 208 | |||
| IIEES | NASN | N | Sg | E | 2012-03-11 18:25:54 | -0.02 | y | 334 | 208 | |||
