Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2012-04-19 03:22:40.6 |
| Date & Time (Local) | 1391/1/31 07:52:40.6 |

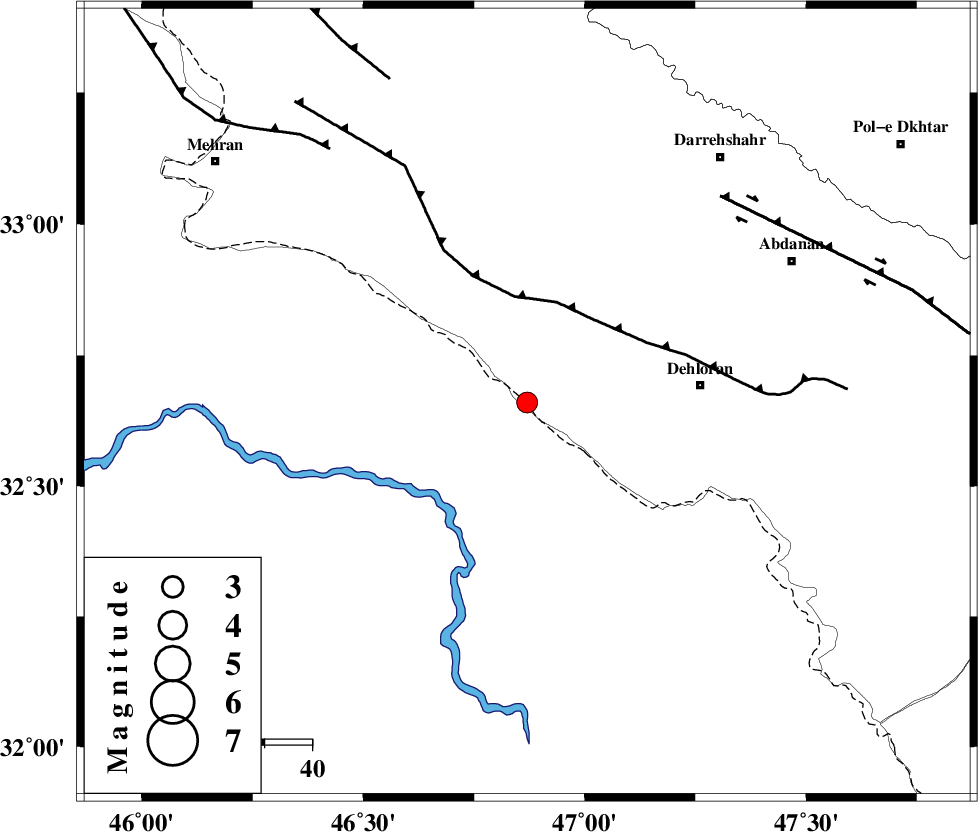

| Location | Lat:32.66 Lon: 46.87 |
| Region | Ilam Province, 37 km West of Dehloran |
Nearest Cities |
|
| 21 km South West of Bishehzar, Ilam Province | |
| 37 km West of Dehloran, Ilam Province | |
| 48 km North West of Musian, Ilam Province | |
| 63 km South West of Abdanan, Ilam Province | |
| 64 km South of Meymeh, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 22 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 60 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 68 km | |
| Number of Phases | 4 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >5.5 km |
| Error in Longitude | 7.2 km |
| Error in Depth | 4.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 82826 | IIEES | SHGR | N | 157.6 | 0.44 | 2012-04-19 03:23:37 | 2012-04-19 03:33:00 | n |
| 82827 | IIEES | SHGR | E | 144.9 | 0.6 | 2012-04-19 03:23:42 | 2012-04-19 03:33:00 | n |
| 82828 | IIEES | SNGE | N | 39.8 | 0.84 | 2012-04-19 03:24:06 | 2012-04-19 03:33:00 | n |
| 82829 | IIEES | SNGE | E | 39.1 | 0.64 | 2012-04-19 03:24:09 | 2012-04-19 03:33:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2012-04-19 03:23:12 | -0.01 | y | 192 | 108 | |||
| IIEES | SHGR | N | Sg | E | 2012-04-19 03:23:35 | -0.02 | y | 192 | 108 | |||
| IIEES | SNGE | Z | Pg | E | 2012-04-19 03:23:25 | -0.04 | y | 274 | 9 | |||
| IIEES | KHMZ | Z | Pn | E | 2012-04-19 03:23:27 | 0.07 | y | 313 | 67 | |||
