Event Specification
Magnitude |
4.7 |
| Date & Time (UTC) | 2012-04-20 03:05:41.3 |
| Date & Time (Local) | 1391/2/1 07:35:41.3 |

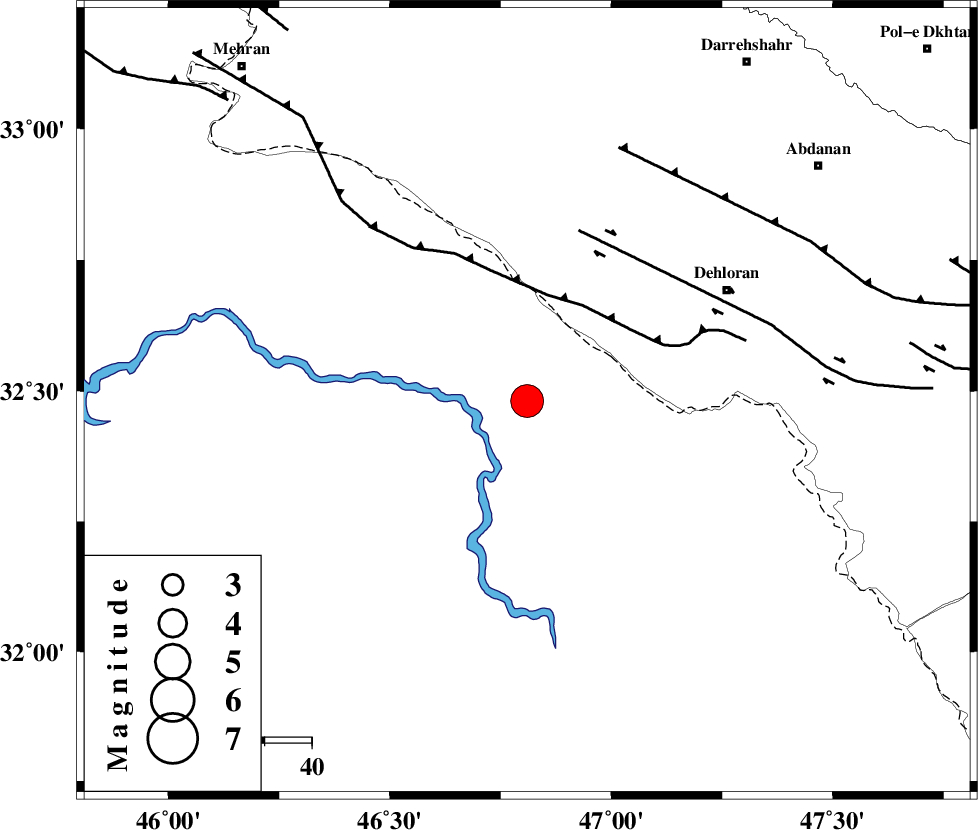

| Location | Lat:32.48 Lon: 46.81 |
| Region | Iraq, 48 km South-West of Dehloran |
Nearest Cities |
|
| 41 km South West of Bishehzar, Ilam Province | |
| 48 km South West of Dehloran, Ilam Province | |
| 52 km West of Musian, Ilam Province | |
| 79 km South West of Abdanan, Ilam Province | |
| 84 km South West of Meymeh, Ilam Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 42 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 79 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 82 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >3.5 km |
| Error in Longitude | 6.3 km |
| Error in Depth | 4.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 82882 | IIEES | SHGR | N | 8711 | 0.48 | 2012-04-20 03:06:39 | 2012-04-20 03:34:00 | n |
| 82883 | IIEES | SHGR | E | 9299.9 | 0.4 | 2012-04-20 03:06:43 | 2012-04-20 03:34:00 | n |
| 82884 | IIEES | SNGE | N | 2769.7 | 0.6 | 2012-04-20 03:07:13 | 2012-04-20 03:34:00 | n |
| 82885 | IIEES | SNGE | E | 3951.2 | 0.68 | 2012-04-20 03:07:14 | 2012-04-20 03:34:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2012-04-20 03:06:12 | 0.14 | y | 192 | 102 | |||
| IIEES | SHGR | E | Sg | E | 2012-04-20 03:06:35 | -0.03 | y | 192 | 102 | |||
| IIEES | SNGE | Z | Pn | E | 2012-04-20 03:06:25 | 0.25 | y | 294 | 10 | |||
| IIEES | SNGE | E | Sg | E | 2012-04-20 03:07:04 | -0.05 | y | 294 | 10 | |||
| IIEES | KHMZ | Z | Pn | E | 2012-04-20 03:06:29 | -0.24 | y | 326 | 64 | |||
| IIEES | ASAO | Z | Pn | E | 2012-04-20 03:06:35 | -0.06 | y | 377 | 52 | |||
| IIEES | GHVR | Z | Pn | E | 2012-04-20 03:06:46 | 0.08 | y | 468 | 60 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-04-20 03:06:50 | -0.14 | y | 496 | 20 | |||
