Event Specification
Magnitude |
5 |
| Date & Time (UTC) | 2012-04-20 15:37:02.8 |
| Date & Time (Local) | 1391/2/1 20:07:02.8 |

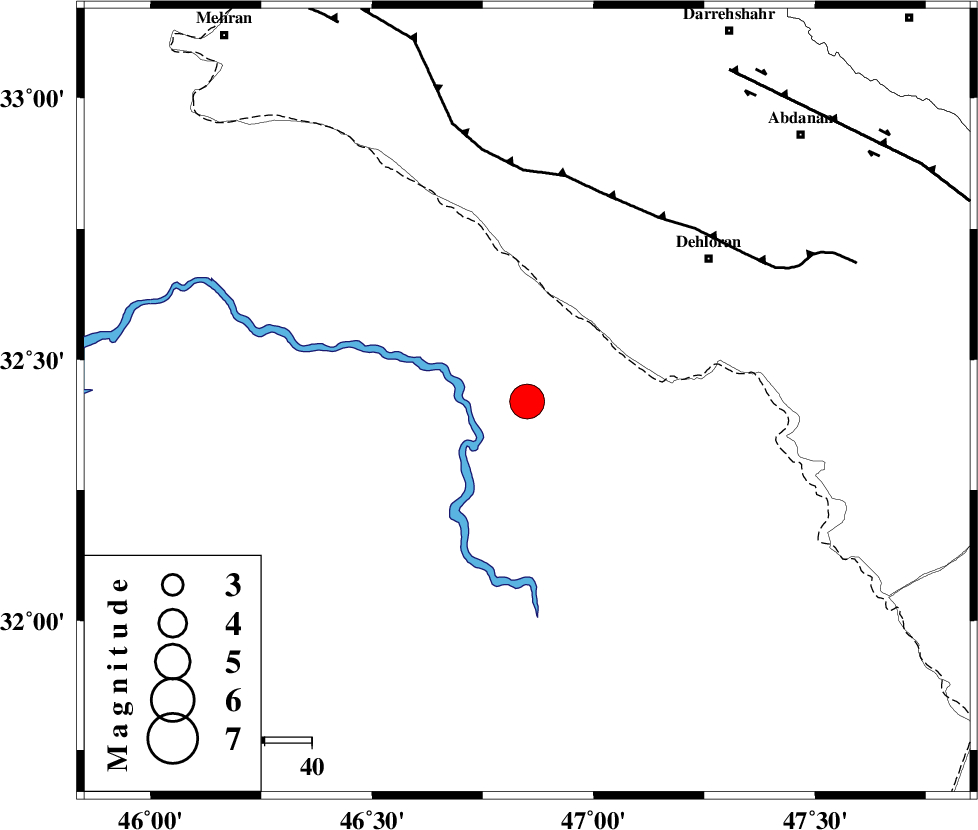

| Location | Lat:32.42 Lon: 46.85 |
| Region | Iraq, 49 km South-West of Dehloran |
Nearest Cities |
|
| 47 km South West of Bishehzar, Ilam Province | |
| 49 km South West of Dehloran, Ilam Province | |
| 50 km South West of Musian, Ilam Province | |
| 81 km South West of Abdanan, Ilam Province | |
| 86 km South West of Sarabbagh, Ilam Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 47 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 82 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 90 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >3.4 km |
| Error in Longitude | 5.8 km |
| Error in Depth | 4.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 82914 | IIEES | SHGR | E | 19383.4 | 0.76 | 2012-04-20 15:37:57 | 2012-04-20 04:01:00 | n |
| 82915 | IIEES | SHGR | N | 18455.5 | 0.56 | 2012-04-20 15:37:59 | 2012-04-20 04:01:00 | n |
| 82916 | IIEES | GHVR | E | 1188 | 0.52 | 2012-04-20 15:38:59 | 2012-04-20 04:01:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2012-04-20 15:37:33 | -0.04 | y | 187 | 100 | |||
| IIEES | SHGR | E | Sg | E | 2012-04-20 15:37:56 | 0.11 | y | 187 | 100 | |||
| IIEES | SNGE | Z | Pn | E | 2012-04-20 15:37:47 | 0.21 | y | 300 | 9 | |||
| IIEES | SNGE | E | Sg | E | 2012-04-20 15:38:27 | -0.02 | y | 300 | 9 | |||
| IIEES | KHMZ | Z | Pn | E | 2012-04-20 15:37:50 | -0.15 | y | 325 | 62 | |||
| IIEES | ASAO | Z | Pn | E | 2012-04-20 15:37:57 | 0 | y | 378 | 50 | |||
| IIEES | GHVR | Z | Pn | E | 2012-04-20 15:38:08 | -0.17 | y | 468 | 60 | |||
