Event Specification
Magnitude |
4.9 |
| Date & Time (UTC) | 2012-04-21 02:39:15.1 |
| Date & Time (Local) | 1391/2/2 07:09:15.1 |

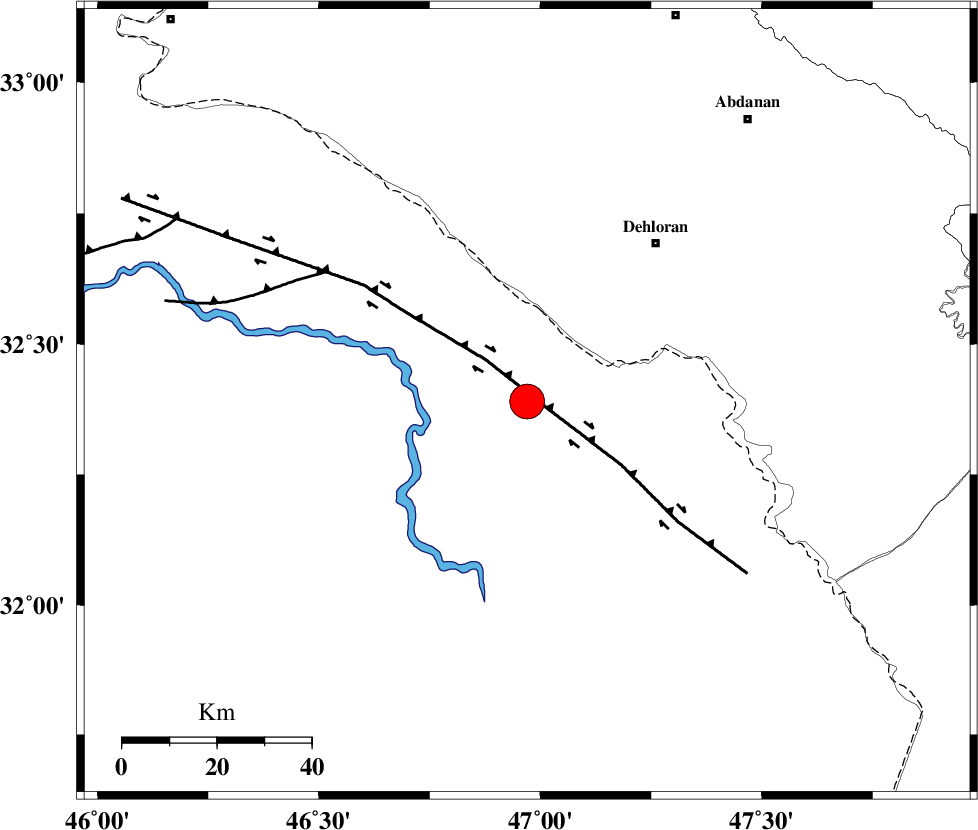

| Location | Lat:32.39 Lon: 46.97 |
| Region | Iraq, 44 km South-West of Dehloran |
Nearest Cities |
|
| 40 km South West of Musian, Ilam Province | |
| 43 km South West of Dehloran, Ilam Province | |
| 48 km South of Bishehzar, Ilam Province | |
| 76 km South West of Abdanan, Ilam Province | |
| 79 km South West of Sarabbagh, Ilam Province | |
| Depth | 40 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 46 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 80 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 98 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 7 |
| Error in Latitude | >3.3 km |
| Error in Longitude | 5.1 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 82951 | IIEES | SHGR | N | 32584.4 | 0.64 | 2012-04-21 02:40:09 | 2012-04-21 03:00:00 | n |
| 82952 | IIEES | SHGR | E | 21995.8 | 0.4 | 2012-04-21 02:40:09 | 2012-04-21 03:00:00 | n |
| 82953 | IIEES | KHMZ | E | 1266.2 | 0.68 | 2012-04-21 02:40:58 | 2012-04-21 03:00:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2012-04-21 02:39:43 | -0.11 | y | 175 | 100 | |||
| IIEES | SHGR | N | Sg | E | 2012-04-21 02:40:04 | 0.09 | y | 175 | 100 | |||
| IIEES | SNGE | Z | Pn | E | 2012-04-21 02:39:58 | 0.15 | y | 302 | 7 | |||
| IIEES | KHMZ | Z | Pn | E | 2012-04-21 02:39:59 | -0.09 | y | 317 | 61 | |||
| IIEES | ASAO | Z | Pn | E | 2012-04-21 02:40:06 | -0.15 | y | 372 | 49 | |||
| IIEES | GHVR | Z | Pn | E | 2012-04-21 02:40:17 | 0.21 | y | 460 | 59 | |||
| IIEES | THKV | Z | Pn | E | 2012-04-21 02:40:26 | -0.14 | y | 532 | 42 | |||
| IIEES | AHRM | Z | Pn | E | 2012-04-21 02:40:31 | 0.04 | y | 569 | 132 | |||
