Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2012-04-22 08:19:04.8 |
| Date & Time (Local) | 1391/2/3 12:49:04.8 |
| Location | Lat:34.21 Lon: 48.09 |
| Region | Hamedan Province, 19 km North-East of Nurabad |
Nearest Cities |
|
| 9 km of Shahrak, Hamedan Province | |
| 13 km North of Froozvand-e vosta, Lorestan Province | |
| 14 km North of Kafraj, Lorestan Province | |
| 15 km North West of Gian, Hamedan Province | |
| 16 km West of Barzul, Hamedan Province | |
| Depth | 27 km |
| Agency | |

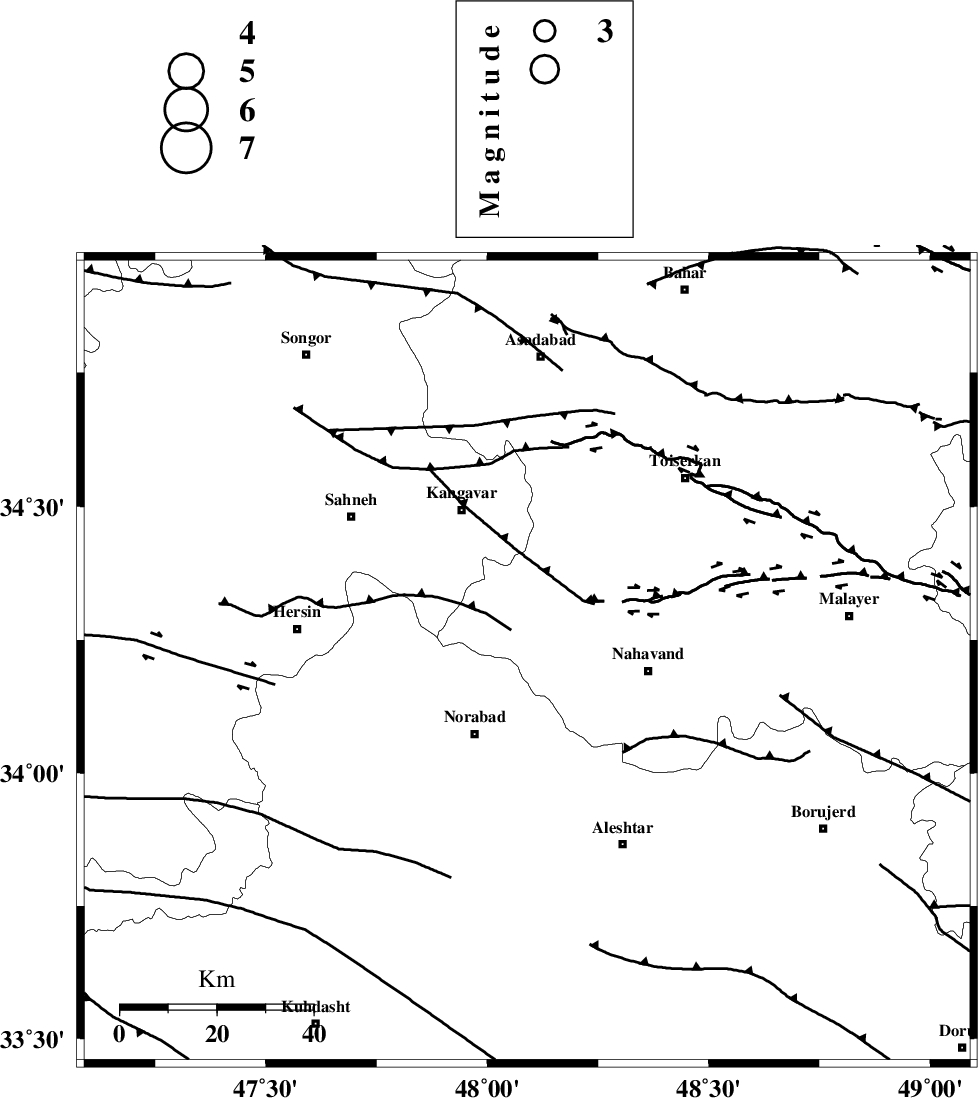

Faults within 150 km: |
|
| SAHANEH_F (Length: 77 km) , Distance to epicenter: 7 km | |
| NAHAVAND_F (Length: 102 km) , Distance to epicenter: 19 km | |
| DINEHVAR_F (Length: 46 km) , Distance to epicenter: 39 km | |
| Number of Phases | 6 |
| RMS | 0.5 |
| Number of Stations | 5 |
| Error in Latitude | >9.9 km |
| Error in Longitude | 7 km |
| Error in Depth | 9.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 83012 | IIEES | ASAO | E | 137.6 | 0.31 | 2012-04-22 08:19:59 | 2012-04-22 08:44:00 | n |
| 83013 | IIEES | GHVR | N | 60.3 | 0.44 | 2012-04-22 08:20:30 | 2012-04-22 08:44:00 | n |
| 83014 | IIEES | GHVR | E | 44.2 | 0.37 | 2012-04-22 08:20:33 | 2012-04-22 08:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2012-04-22 08:19:24 | -0.02 | y | 119 | 325 | |||
| IIEES | KHMZ | Z | Pg | E | 2012-04-22 08:19:34 | -0.09 | y | 181 | 106 | |||
| IIEES | KHMZ | E | Sg | E | 2012-04-22 08:19:56 | 0.3 | y | 181 | 106 | |||
| IIEES | ASAO | Z | Pn | E | 2012-04-22 08:19:33 | -0.72 | y | 182 | 78 | |||
| IIEES | ASAO | E | Sg | E | 2012-04-22 08:19:55 | -0.2 | y | 182 | 78 | |||
| IIEES | CHTH | Z | Pn | E | 2012-04-22 08:19:53 | 0.83 | y | 335 | 55 | |||
