Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2012-04-22 16:27:35.2 |
| Date & Time (Local) | 1391/2/3 20:57:35.2 |

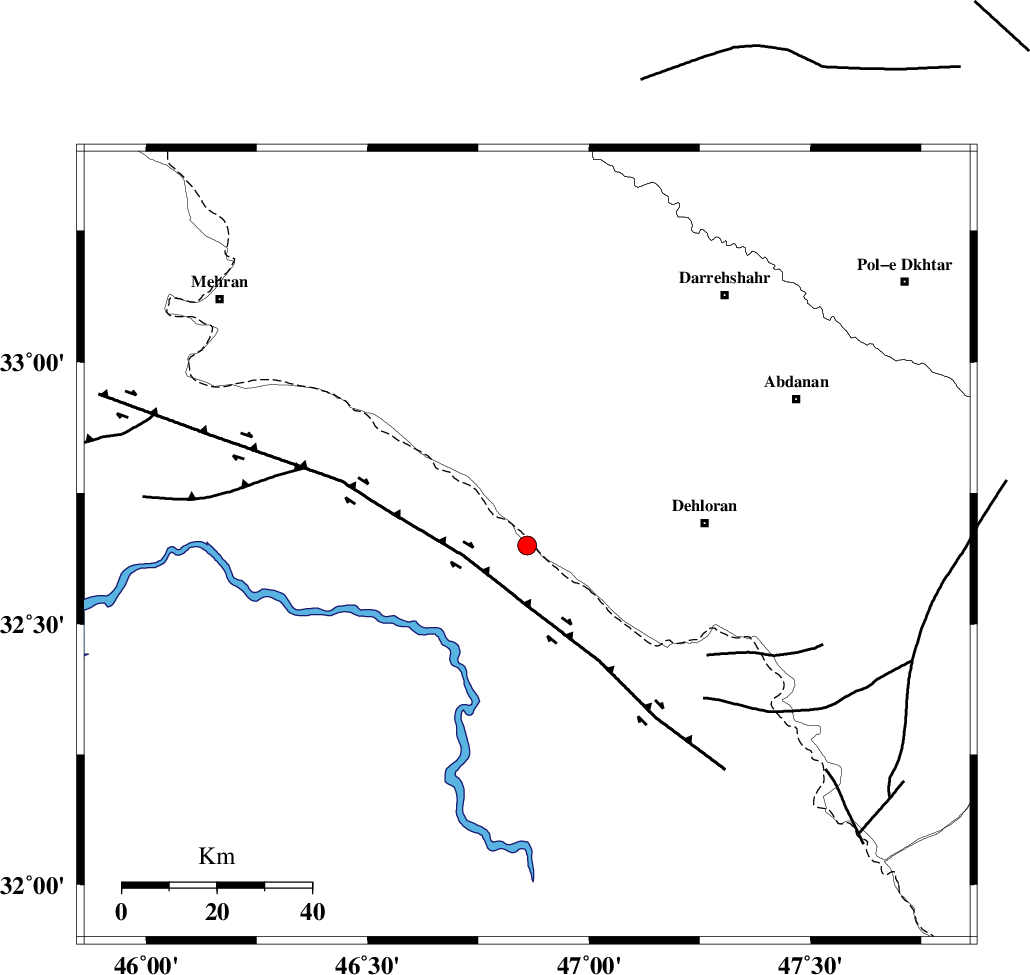

| Location | Lat:32.65 Lon: 46.86 |
| Region | Iraq, 38 km West of Dehloran |
Nearest Cities |
|
| 22 km South West of Bishehzar, Ilam Province | |
| 38 km West of Dehloran, Ilam Province | |
| 48 km North West of Musian, Ilam Province | |
| 65 km South West of Abdanan, Ilam Province | |
| 65 km South of Meymeh, Ilam Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 24 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 61 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 68 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >3.8 km |
| Error in Longitude | 9 km |
| Error in Depth | 5.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 83025 | IIEES | SHGR | E | 88.4 | 0.64 | 2012-04-22 16:28:32 | 2012-04-22 05:57:00 | n |
| 83026 | IIEES | SHGR | N | 58.4 | 0.52 | 2012-04-22 16:28:35 | 2012-04-22 05:57:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | P | E | 2012-04-22 16:28:06 | 0.11 | y | 192 | 108 | |||
| IIEES | SNGE | Z | Pn | E | 2012-04-22 16:28:16 | 0.01 | y | 275 | 9 | |||
| IIEES | SNGE | E | Sg | E | 2012-04-22 16:28:52 | 0.05 | y | 275 | 9 | |||
| IIEES | KHMZ | Z | P | E | 2012-04-22 16:28:21 | -0.16 | y | 314 | 66 | |||
| IIEES | ASAO | Z | P | E | 2012-04-22 16:28:27 | -0.02 | y | 362 | 53 | |||
