Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2012-04-22 22:57:30.7 |
| Date & Time (Local) | 1391/2/4 03:27:30.7 |

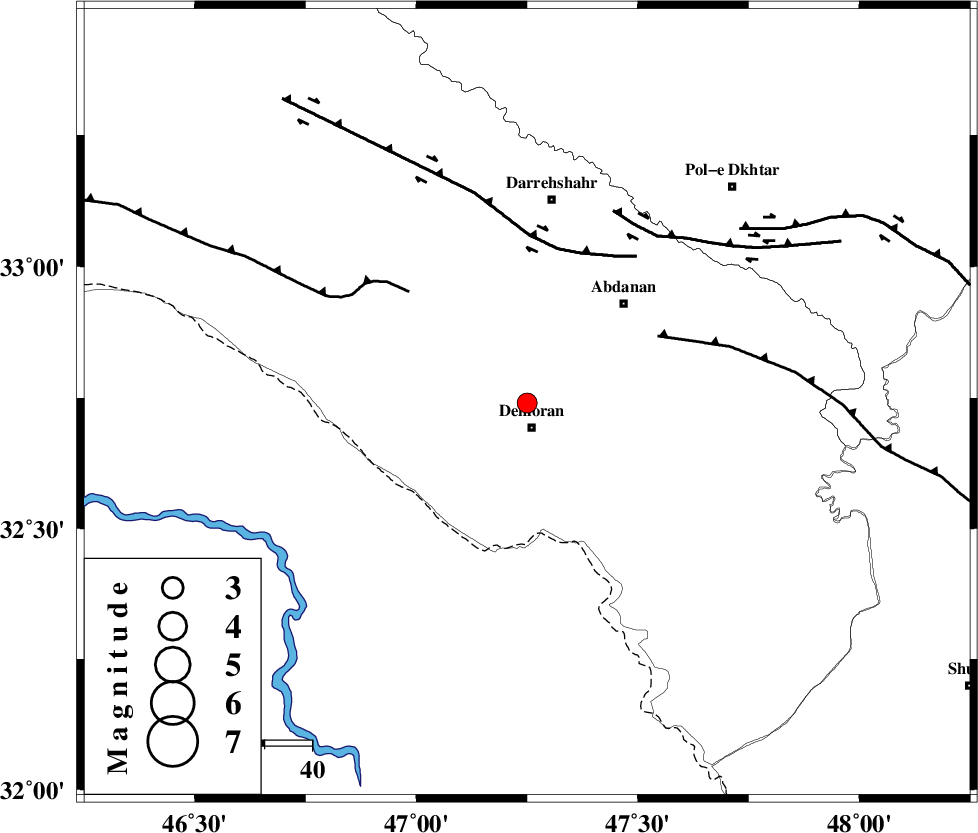

| Location | Lat:32.74 Lon: 47.25 |
| Region | Ilam Province, 5 km Dehloran |
Nearest Cities |
|
| 5 km North of Dehloran, Ilam Province | |
| 24 km North West of Musian, Ilam Province | |
| 27 km East of Bishehzar, Ilam Province | |
| 29 km South West of Abdanan, Ilam Province | |
| 34 km South West of Sarabbagh, Ilam Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 3 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 35 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 76 km | |
| Number of Phases | 5 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 3.5 km |
| Error in Depth | 5.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 83036 | IIEES | SHGR | E | 137.9 | 0.44 | 2012-04-22 22:58:22 | 2012-04-23 02:09:00 | n |
| 83037 | IIEES | SHGR | N | 125.6 | 0.36 | 2012-04-22 22:58:24 | 2012-04-23 02:09:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2012-04-22 22:57:57 | 0 | y | 162 | 115 | |||
| IIEES | SNGE | Z | Pn | E | 2012-04-22 22:58:10 | 0 | y | 261 | 2 | |||
| IIEES | KHMZ | Z | Pn | E | 2012-04-22 22:58:12 | 0.01 | y | 276 | 66 | |||
| IIEES | KHMZ | N | Sg | E | 2012-04-22 22:58:48 | 0 | y | 276 | 66 | |||
| IIEES | ASAO | Z | Pn | E | 2012-04-22 22:58:19 | -0.01 | y | 326 | 51 | |||
