Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2012-04-22 21:16:25.2 |
| Date & Time (Local) | 1391/2/4 01:46:25.2 |

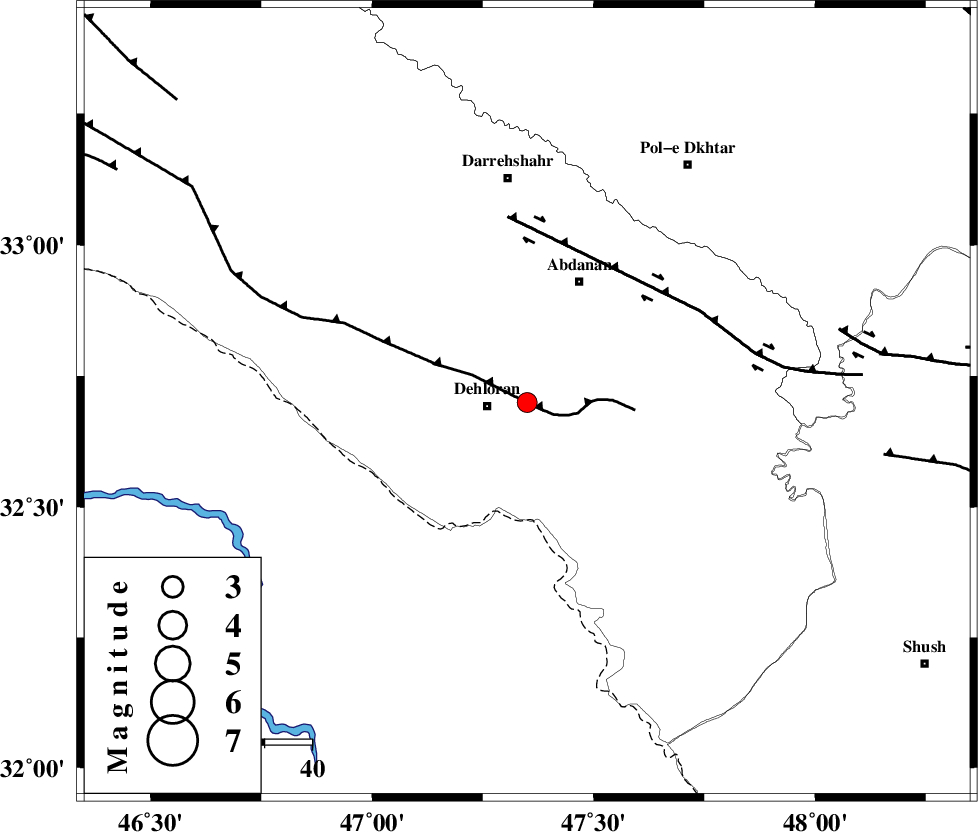

| Location | Lat:32.7 Lon: 47.35 |
| Region | Ilam Province, 8 km Dehloran |
Nearest Cities |
|
| 8 km North of Dehloran, Ilam Province | |
| 17 km North of Musian, Ilam Province | |
| 28 km South West of Abdanan, Ilam Province | |
| 30 km South West of Sarabbagh, Ilam Province | |
| 38 km South East of Bishehzar, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 1 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 40 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 68 km | |
| Number of Phases | 5 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 3.6 km |
| Error in Depth | 5.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 83038 | IIEES | SHGR | E | 146.9 | 0.6 | 2012-04-22 21:17:26 | 2012-04-23 02:24:00 | n |
| 83039 | IIEES | SHGR | N | 126.2 | 0.44 | 2012-04-22 21:17:27 | 2012-04-23 02:24:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2012-04-22 21:16:50 | 0 | y | 151 | 115 | |||
| IIEES | SNGE | Z | Pn | E | 2012-04-22 21:17:06 | -0.01 | y | 266 | 360 | |||
| IIEES | KHMZ | Z | Pn | E | 2012-04-22 21:17:06 | -0.02 | y | 270 | 64 | |||
| IIEES | KHMZ | N | Sg | E | 2012-04-22 21:17:41 | 0 | y | 270 | 64 | |||
| IIEES | ASAO | Z | Pn | E | 2012-04-22 21:17:13 | 0.03 | y | 322 | 50 | |||
