Event Specification
Magnitude |
4 |
| Date & Time (UTC) | 2012-04-23 23:00:37.1 |
| Date & Time (Local) | 1391/2/5 03:30:37.1 |

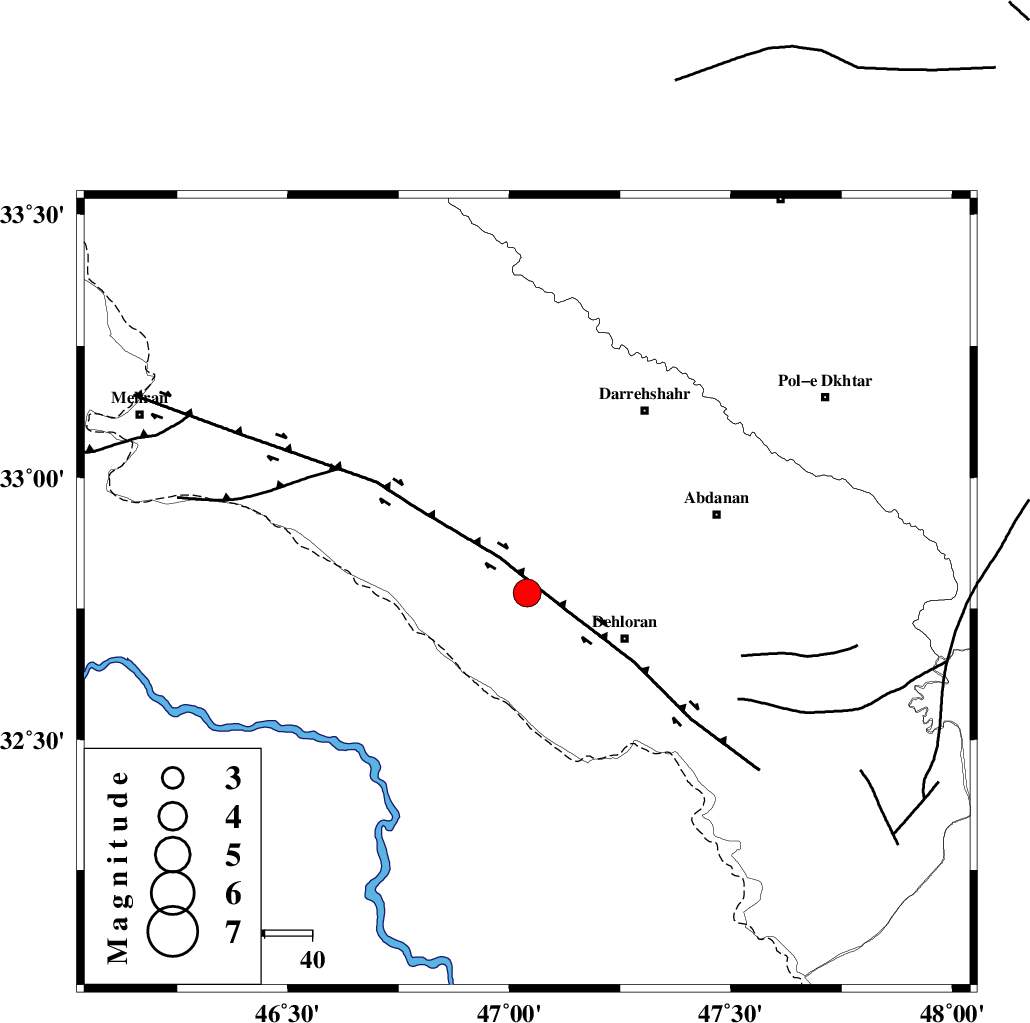

| Location | Lat:32.78 Lon: 47.04 |
| Region | Ilam Province, 23 km West of Dehloran |
Nearest Cities |
|
| 8 km of Bishehzar, Ilam Province | |
| 23 km North West of Dehloran, Ilam Province | |
| 40 km North West of Musian, Ilam Province | |
| 43 km South West of Abdanan, Ilam Province | |
| 46 km South West of Darreh Shahr, Ilam Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 5 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 39 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 70 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >5.4 km |
| Error in Longitude | 3.6 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 83057 | IIEES | SHGR | E | 1068.7 | 0.64 | 2012-04-23 23:01:41 | 2012-04-23 11:30:00 | n |
| 83058 | IIEES | SNGE | N | 1695.2 | 0.8 | 2012-04-23 23:01:58 | 2012-04-23 11:30:00 | n |
| 83059 | IIEES | SNGE | E | 1564 | 0.64 | 2012-04-23 23:01:59 | 2012-04-23 11:30:00 | n |
| 83060 | IIEES | GHVR | E | 143.3 | 0.68 | 2012-04-23 23:02:56 | 2012-04-23 11:30:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pn | E | 2012-04-23 23:01:07 | 0.03 | y | 182 | 114 | |||
| IIEES | SNGE | Z | Pn | E | 2012-04-23 23:01:16 | -0.03 | y | 258 | 6 | |||
| IIEES | KHMZ | Z | Pn | E | 2012-04-23 23:01:21 | -0.03 | y | 293 | 68 | |||
| IIEES | ASAO | Z | Pn | E | 2012-04-23 23:01:27 | 0.34 | y | 339 | 54 | |||
| IIEES | GHVR | Z | Pn | E | 2012-04-23 23:01:38 | -0.36 | y | 433 | 63 | |||
