Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2012-05-04 08:34:28.3 |
| Date & Time (Local) | 1391/2/15 13:04:28.3 |

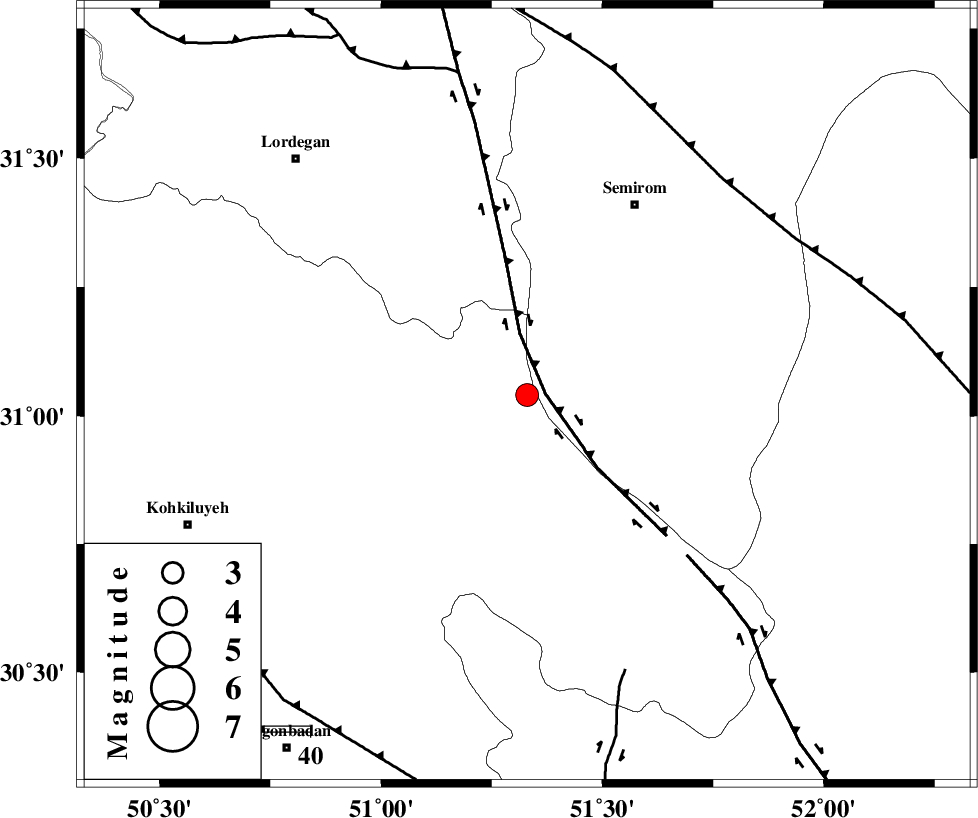

| Location | Lat:31.04 Lon: 51.33 |
| Region | Kohkiluieh va boyerahmad Province, 22 km North-West of Sisakht |
Nearest Cities |
|
| 13 km South of Meymand, Kohkiluieh va boyerahmad Province | |
| 17 km East of Dezhak, Kohkiluieh va boyerahmad Province | |
| 23 km North West of Sisakht, Kohkiluieh va boyerahmad Province | |
| 25 km North East of Margun, Kohkiluieh va boyerahmad Province | |
| 26 km West of Kameh, Esfahan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DENA_F (Length: 137 km) , Distance to epicenter: 4 km | |
| HZF3 (Length: 197 km) , Distance to epicenter: 49 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 63 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >2.1 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 5.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 83273 | IIEES | SHGR | E | 134.7 | 0.4 | 2012-05-04 08:35:53 | 2012-05-04 09:26:00 | n |
| 83274 | IIEES | SHGR | N | 115.1 | 0.6 | 2012-05-04 08:36:13 | 2012-05-04 09:26:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pn | E | 2012-05-04 08:35:05 | 0.1 | y | 241 | 181 | |||
| IIEES | AHRM | E | Sg | E | 2012-05-04 08:35:36 | -0.09 | y | 241 | 181 | |||
| IIEES | SHGR | Z | Pn | E | 2012-05-04 08:35:09 | 0.07 | y | 268 | 297 | |||
| IIEES | KHMZ | Z | Pn | E | 2012-05-04 08:35:16 | -0.13 | y | 326 | 337 | |||
| IIEES | GHIR | Z | Pn | E | 2012-05-04 08:35:18 | 0.06 | y | 344 | 152 | |||
| IIEES | GHIR | N | Sg | E | 2012-05-04 08:36:04 | -0.01 | y | 344 | 152 | |||
