Event Specification
Magnitude |
1.9 |
| Date & Time (UTC) | 2012-05-04 17:49:31.7 |
| Date & Time (Local) | 1391/2/15 22:19:31.7 |

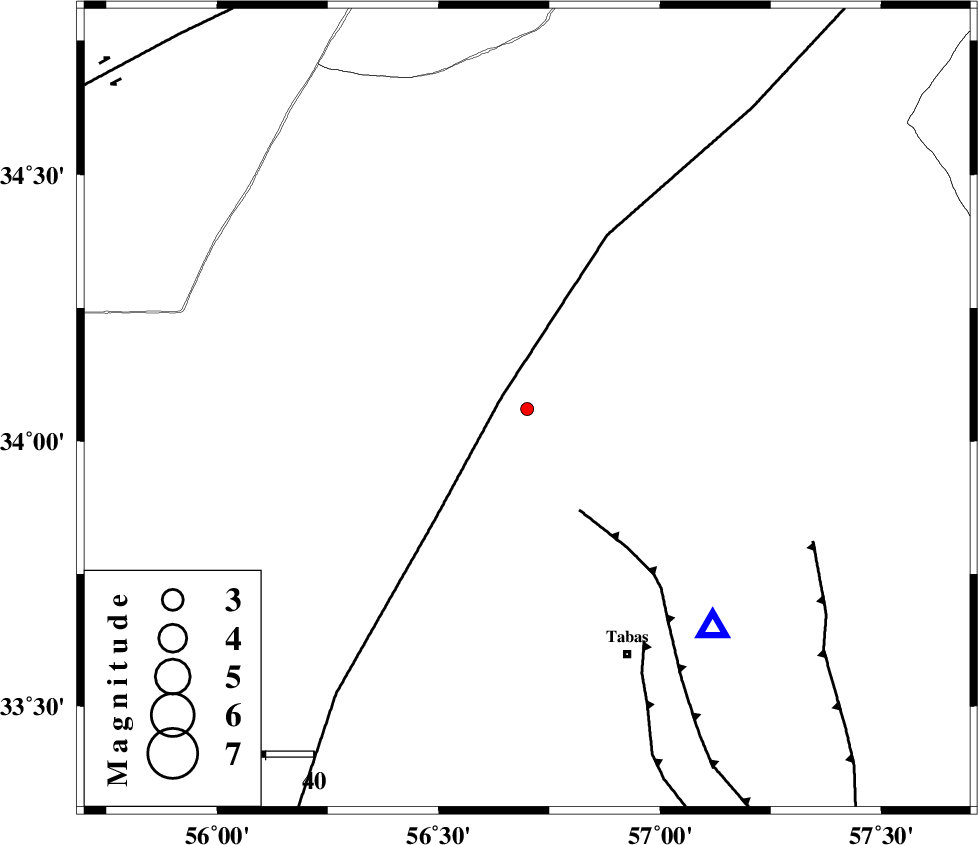

| Location | Lat:34.06 Lon: 56.7 |
| Region | Yazd Province, 55 km North-West of Tabas |
Nearest Cities |
|
| 38 km North of Jokhvah, Yazd Province | |
| 39 km South West of Eshqabad, Yazd Province | |
| 40 km North East of Halvan, Yazd Province | |
| 55 km North West of Tabas, Yazd Province | |
| 58 km North West of Reqqeh, Khorasan(center) Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| NAINI_F (Length: 342 km) , Distance to epicenter: 6 km | |
| TABAS_F1 (Length: 91 km) , Distance to epicenter: 24 km | |
| TABAS_F2 (Length: 67 km) , Distance to epicenter: 54 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >3.9 km |
| Error in Longitude | 8 km |
| Error in Depth | 4.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 83278 | IIEES | TABS | N | 168.1 | 0.52 | 2012-05-04 17:49:54 | 2012-05-04 06:12:00 | n |
| 83279 | IIEES | TABS | E | 77.9 | 0.48 | 2012-05-04 17:49:56 | 2012-05-04 06:12:00 | n |
| 83280 | IIEES | SHRO | E | 5.6 | 0.4 | 2012-05-04 17:50:38 | 2012-05-04 06:12:00 | n |
| 83281 | IIEES | SHRO | N | 5.3 | 0.32 | 2012-05-04 17:50:39 | 2012-05-04 06:12:00 | n |
| 83282 | IIEES | SHRT | E | 5.2 | 0.44 | 2012-05-04 17:50:59 | 2012-05-04 06:12:00 | n |
| 83283 | IIEES | SHRT | N | 3.8 | 0.56 | 2012-05-04 17:51:02 | 2012-05-04 06:12:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | TABS | Z | Pg | E | 2012-05-04 17:49:42 | -0.18 | y | 59.6 | 140 | |||
| IIEES | TABS | N | Sg | E | 2012-05-04 17:49:50 | 0.16 | y | 59.6 | 140 | |||
| IIEES | SHRO | N | Pn | E | 2012-05-04 17:50:07 | 0.06 | y | 225 | 344 | |||
| IIEES | SHRO | N | Sg | E | 2012-05-04 17:50:35 | 0.02 | y | 225 | 344 | |||
| IIEES | SHRT | E | Pn | E | 2012-05-04 17:50:20 | -0.06 | y | 335 | 97 | |||
