Event Specification
Magnitude |
3.5 |
| Date & Time (UTC) | 2012-05-04 21:19:05.8 |
| Date & Time (Local) | 1391/2/16 01:49:05.8 |

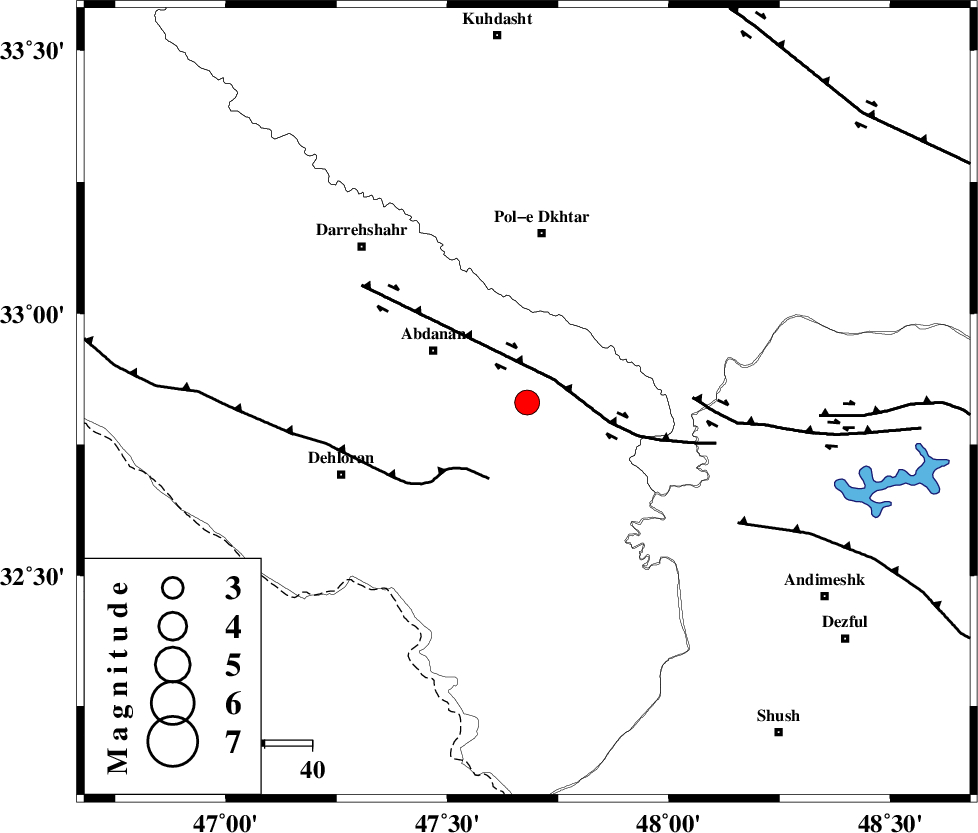

| Location | Lat:32.83 Lon: 47.68 |
| Region | Ilam Province, 22 km East of Abdanan |
Nearest Cities |
|
| 13 km East of Sarabbagh, Ilam Province | |
| 23 km South East of Abdanan, Ilam Province | |
| 30 km South of Sarab hammam, Lorestan Province | |
| 36 km South of Pol-e dokhtar, Lorestan Province | |
| 42 km North East of Dehloran, Ilam Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 8 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 18 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 35 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >3.3 km |
| Error in Longitude | 6.4 km |
| Error in Depth | 3.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 83284 | IIEES | SHGR | E | 724.7 | 0.52 | 2012-05-04 21:19:55 | 2012-05-04 09:37:00 | n |
| 83285 | IIEES | SHGR | N | 756.8 | 0.68 | 2012-05-04 21:19:57 | 2012-05-04 09:37:00 | n |
| 83286 | IIEES | SNGE | E | 384.6 | 0.68 | 2012-05-04 21:20:27 | 2012-05-04 09:37:00 | n |
| 83287 | IIEES | SNGE | N | 371 | 0.52 | 2012-05-04 21:20:30 | 2012-05-04 09:37:00 | n |
| 83288 | IIEES | GHVR | E | 119.8 | 0.44 | 2012-05-04 21:20:46 | 2012-05-04 09:37:00 | n |
| 83289 | IIEES | GHVR | N | 88 | 0.32 | 2012-05-04 21:20:46 | 2012-05-04 09:37:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2012-05-04 21:19:28 | 0.1 | y | 133 | 127 | |||
| IIEES | SHGR | E | Sg | E | 2012-05-04 21:19:44 | 0.08 | y | 133 | 127 | |||
| IIEES | KHMZ | Z | Pn | E | 2012-05-04 21:19:42 | -0.28 | y | 236 | 64 | |||
| IIEES | SNGE | Z | Pn | E | 2012-05-04 21:19:44 | -0.14 | y | 253 | 353 | |||
| IIEES | SNGE | E | Sg | E | 2012-05-04 21:20:17 | 0.18 | y | 253 | 353 | |||
| IIEES | ASAO | Z | Pn | E | 2012-05-04 21:19:49 | 0.04 | y | 289 | 48 | |||
| IIEES | GHVR | Z | Pn | E | 2012-05-04 21:20:00 | 0.03 | y | 378 | 60 | |||
