Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2012-05-07 21:48:01.0 |
| Date & Time (Local) | 1391/2/19 02:18:01.0 |

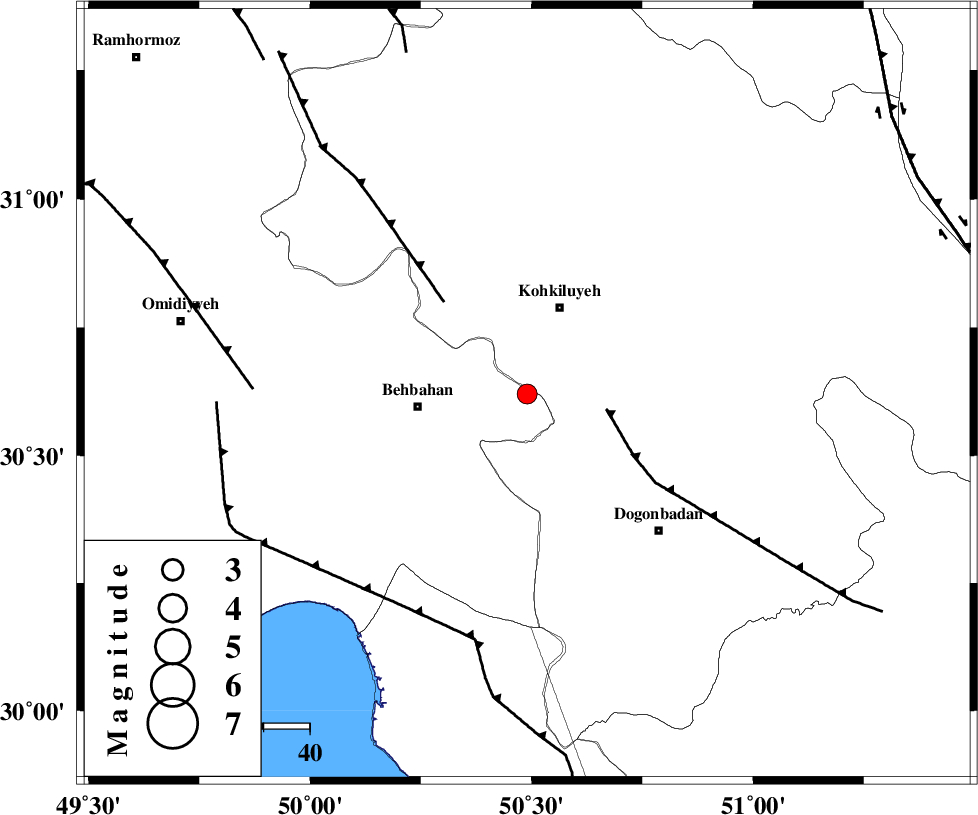

| Location | Lat:30.62 Lon: 50.49 |
| Region | Khoozestan Province, 20 km South of Dehdasht |
Nearest Cities |
|
| 18 km East of Mansuriyeh, Khoozestan Province | |
| 20 km South of Dehdasht, Kohkiluieh va boyerahmad Province | |
| 24 km North East of Behbahan, Khoozestan Province | |
| 31 km East of Dodange-ye bozorg, Khoozestan Province | |
| 40 km South West of Savari, Kohkiluieh va boyerahmad Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MISHAN_F (Length: 76 km) , Distance to epicenter: 17 km | |
| MFF4 (Length: 62 km) , Distance to epicenter: 27 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 53 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >3.6 km |
| Error in Longitude | 4.9 km |
| Error in Depth | 9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 83367 | IIEES | SHGR | E | 110.2 | 0.28 | 2012-05-07 21:49:07 | 2012-05-07 10:51:00 | n |
| 83368 | IIEES | SHGR | N | 107.3 | 0.36 | 2012-05-07 21:49:11 | 2012-05-07 10:51:00 | n |
| 83369 | IIEES | KHMZ | E | 15.1 | 0.52 | 2012-05-07 21:49:34 | 2012-05-07 10:51:00 | n |
| 83370 | IIEES | GHIR | E | 17.2 | 0.32 | 2012-05-07 21:49:35 | 2012-05-07 10:51:00 | n |
| 83371 | IIEES | GHIR | N | 16.7 | 0.4 | 2012-05-07 21:49:36 | 2012-05-07 10:51:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | N | Pn | E | 2012-05-07 21:48:37 | 0.32 | y | 230 | 316 | |||
| IIEES | SHGR | E | Sg | E | 2012-05-07 21:49:05 | -0.13 | y | 230 | 316 | |||
| IIEES | NASN | Z | Pn | E | 2012-05-07 21:48:49 | 0.04 | y | 326 | 42 | |||
| IIEES | KHMZ | Z | Pn | E | 2012-05-07 21:48:52 | -0.13 | y | 349 | 352 | |||
| IIEES | GHIR | Z | Pn | E | 2012-05-07 21:48:52 | -0.15 | y | 354 | 136 | |||
| IIEES | ASAO | Z | Pn | E | 2012-05-07 21:49:03 | 0.01 | y | 438 | 354 | |||
