Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2012-05-09 07:10:56.3 |
| Date & Time (Local) | 1391/2/20 11:40:56.3 |

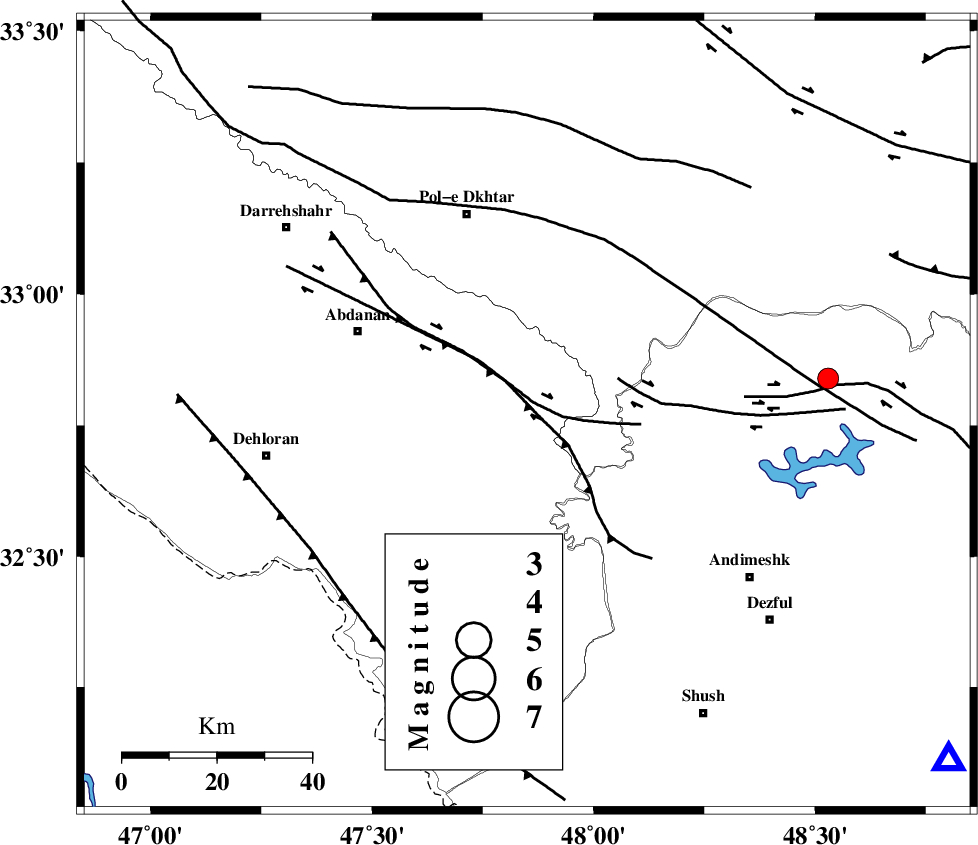

| Location | Lat:32.77 Lon: 47.85 |
| Region | Ilam Province, 44 km South-East of Pol-e dokhtar |
Nearest Cities |
|
| 30 km South East of Sarabbagh, Ilam Province | |
| 36 km North West of Bidruyeh, Khoozestan Province | |
| 39 km North West of Hoseinieh, Khoozestan Province | |
| 39 km South East of Sarab hammam, Lorestan Province | |
| 40 km South East of Abdanan, Ilam Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 3 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 21 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 26 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >3.1 km |
| Error in Longitude | 4.8 km |
| Error in Depth | 6.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 83407 | IIEES | KHMZ | N | 72 | 0.35 | 2012-05-09 07:12:05 | 2012-05-09 07:55:00 | n |
| 83408 | IIEES | KHMZ | E | 74.5 | 0.65 | 2012-05-09 07:12:06 | 2012-05-09 07:55:00 | n |
| 83409 | IIEES | SNGE | E | 67.5 | 0.53 | 2012-05-09 07:12:14 | 2012-05-09 07:55:00 | n |
| 83410 | IIEES | SNGE | N | 68.6 | 0.39 | 2012-05-09 07:12:16 | 2012-05-09 07:55:00 | n |
| 83411 | IIEES | GHVR | E | 38.2 | 0.39 | 2012-05-09 07:12:35 | 2012-05-09 07:55:00 | n |
| 83412 | IIEES | GHVR | N | 21.6 | 0.42 | 2012-05-09 07:12:35 | 2012-05-09 07:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2012-05-09 07:11:15 | 0.04 | y | 116 | 129 | |||
| IIEES | KHMZ | Z | Pn | E | 2012-05-09 07:11:32 | 0.35 | y | 225 | 61 | |||
| IIEES | KHMZ | E | Sg | E | 2012-05-09 07:12:00 | -0.04 | y | 225 | 61 | |||
| IIEES | SNGE | Z | Pn | E | 2012-05-09 07:11:36 | -0.07 | y | 262 | 350 | |||
| IIEES | GHVR | Z | Pn | E | 2012-05-09 07:11:49 | -0.05 | y | 368 | 58 | |||
| IIEES | NASN | Z | Pn | E | 2012-05-09 07:12:01 | -0.34 | y | 465 | 88 | |||
