Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2012-05-09 19:51:16.8 |
| Date & Time (Local) | 1391/2/21 00:21:16.8 |

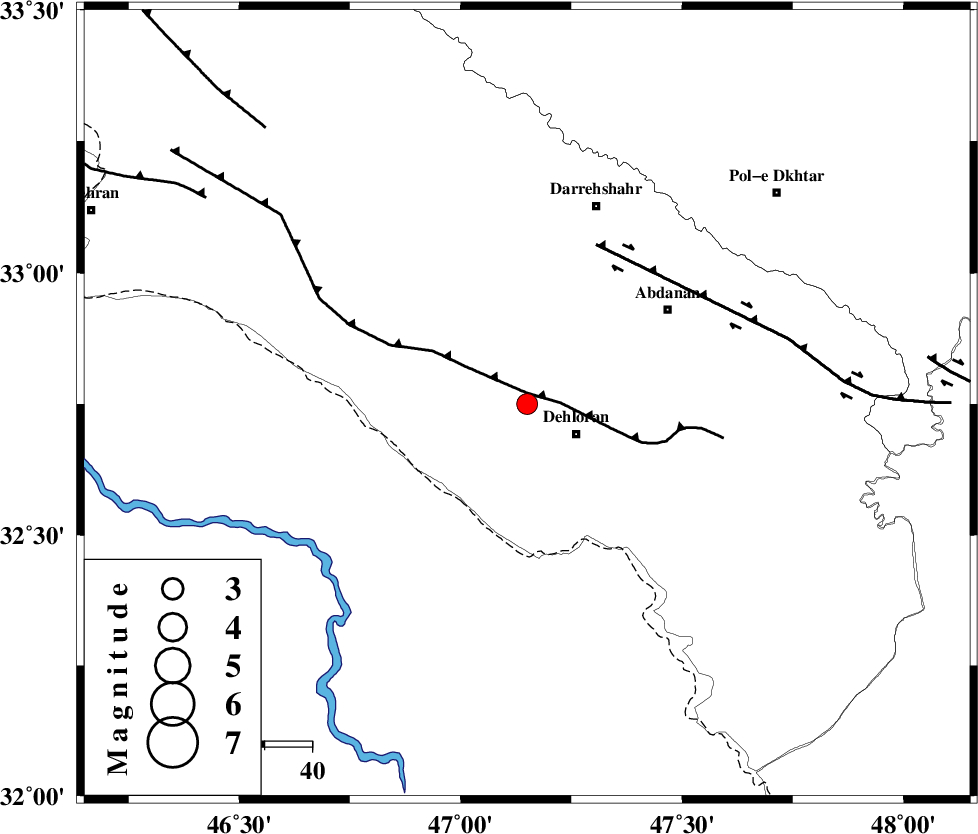

| Location | Lat:32.75 Lon: 47.15 |
| Region | Ilam Province, 12 km West of Dehloran |
Nearest Cities |
|
| 12 km North West of Dehloran, Ilam Province | |
| 18 km East of Bishehzar, Ilam Province | |
| 30 km North West of Musian, Ilam Province | |
| 36 km South West of Abdanan, Ilam Province | |
| 42 km South West of Sarabbagh, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 2 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 37 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 80 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >3.6 km |
| Error in Longitude | 5.2 km |
| Error in Depth | 7.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 83428 | IIEES | SHGR | E | 196.2 | 0.32 | 2012-05-09 19:52:11 | 2012-05-09 08:16:00 | n |
| 83429 | IIEES | SHGR | N | 196.2 | 0.36 | 2012-05-09 19:52:13 | 2012-05-09 08:16:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2012-05-09 19:51:44 | -0.1 | y | 171 | 114 | |||
| IIEES | SNGE | Z | Pn | E | 2012-05-09 19:51:56 | -0.11 | y | 260 | 4 | |||
| IIEES | KHMZ | Z | Pn | E | 2012-05-09 19:52:00 | 0.26 | y | 284 | 67 | |||
| IIEES | KHMZ | E | Sg | E | 2012-05-09 19:52:36 | -0.06 | y | 284 | 67 | |||
| IIEES | ASAO | Z | Pn | E | 2012-05-09 19:52:06 | 0.01 | y | 333 | 52 | |||
