Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2012-05-12 01:18:00.1 |
| Date & Time (Local) | 1391/2/23 05:48:00.1 |

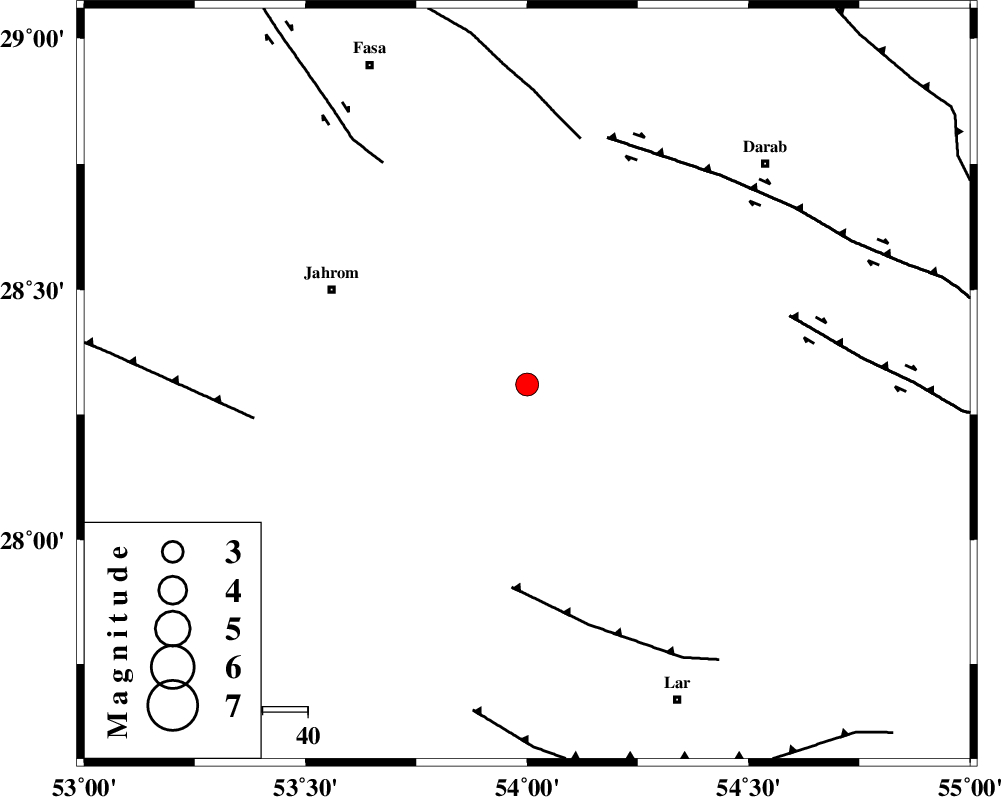

| Location | Lat:28.31 Lon: 54 |
| Region | Fars Province, 48 km South-East of Jahrom |
Nearest Cities |
|
| 19 km North East of Juyam, Fars Province | |
| 22 km West of Dabiran, Fars Province | |
| 31 km South East of Khorramabad, Fars Province | |
| 34 km West of Shahr-e pir, Fars Province | |
| 41 km West of Hajiabad, Fars Province | |
| Depth | 45 km |
| Agency | |
Faults within 150 km: |
|
| BERIZ_F (Length: 49 km) , Distance to epicenter: 45 km | |
| BAKHTEGAN_F (Length: 94 km) , Distance to epicenter: 56 km | |
| HZF1 (Length: 102 km) , Distance to epicenter: 58 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | >3.2 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 3.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 83474 | IIEES | GHIR | E | 524.1 | 0.32 | 2012-05-12 01:18:39 | 2012-05-12 01:41:00 | n |
| 83475 | IIEES | GHIR | N | 604.1 | 0.32 | 2012-05-12 01:18:45 | 2012-05-12 01:41:00 | n |
| 83476 | IIEES | BNDS | N | 178.3 | 0.4 | 2012-05-12 01:19:21 | 2012-05-12 01:41:00 | n |
| 83477 | IIEES | BNDS | E | 190.8 | 0.48 | 2012-05-12 01:19:21 | 2012-05-12 01:41:00 | n |
| 83478 | IIEES | KRBR | N | 83.1 | 0.44 | 2012-05-12 01:19:43 | 2012-05-12 01:41:00 | n |
| 83479 | IIEES | KRBR | E | 82.6 | 0.44 | 2012-05-12 01:19:45 | 2012-05-12 01:41:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pg | E | 2012-05-12 01:18:17 | 0.01 | y | 99.5 | 269 | |||
| IIEES | BNDS | Z | Pn | E | 2012-05-12 01:18:34 | 0.01 | y | 236 | 115 | |||
| IIEES | KRBR | E | Sg | E | 2012-05-12 01:19:29 | -0.01 | y | 326 | 55 | |||
| IIEES | NASN | Z | Pn | E | 2012-05-12 01:19:09 | 0.38 | y | 511 | 347 | |||
| IIEES | TABS | N | Pn | E | 2012-05-12 01:19:27 | -0.15 | y | 663 | 26 | |||
| IIEES | KHMZ | N | Pn | E | 2012-05-12 01:19:33 | -0.43 | y | 715 | 328 | |||
