Event Specification
Magnitude |
3.7 |
| Date & Time (UTC) | 2012-05-13 18:31:17.4 |
| Date & Time (Local) | 1391/2/24 23:01:17.4 |

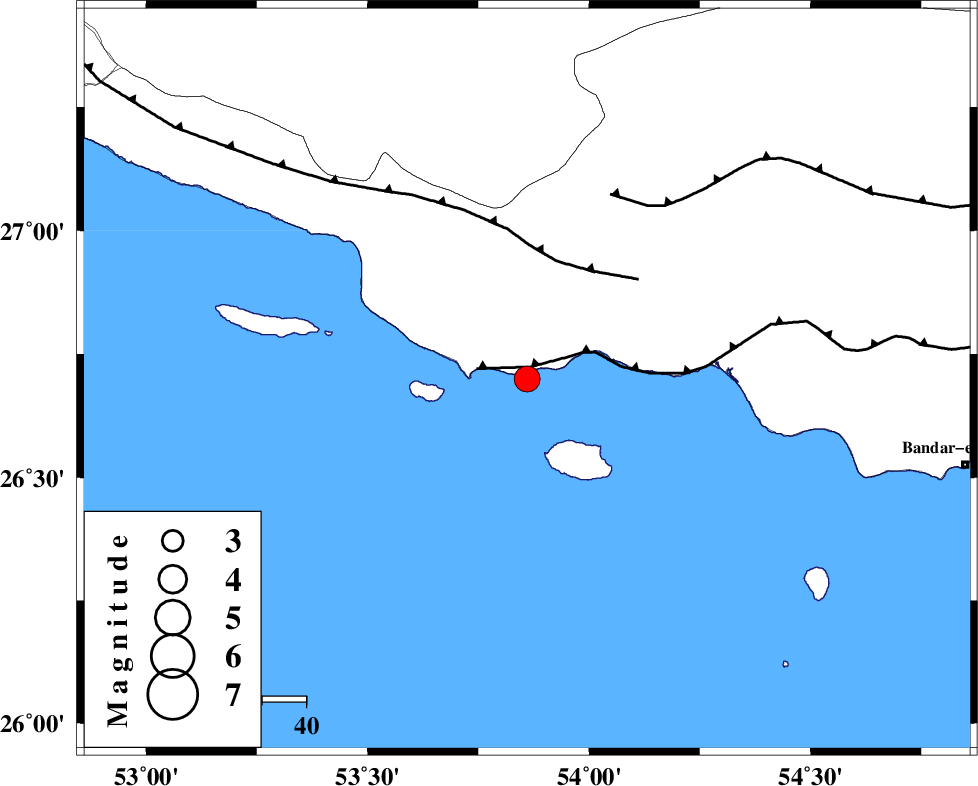

| Location | Lat:26.7 Lon: 53.86 |
| Region | Persian Gulf, 75 km South-West of Bastak |
Nearest Cities |
|
| 54 km South East of Ahl, Fars Province | |
| 55 km South West of Jenah, Hormozgan Province | |
| 63 km South East of Ashkenan, Fars Province | |
| 75 km South West of Bastak, Hormozgan Province | |
| 88 km South East of Beyram, Fars Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| ZFF1 (Length: 165 km) , Distance to epicenter: 3 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 27 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 46 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >5.5 km |
| Error in Longitude | 3.8 km |
| Error in Depth | 6.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 83500 | IIEES | GHIR | N | 791.1 | 0.4 | 2012-05-13 18:32:14 | 2012-05-13 07:31:00 | n |
| 83501 | IIEES | GHIR | E | 877.1 | 0.52 | 2012-05-13 18:32:15 | 2012-05-13 07:31:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pg | E | 2012-05-13 18:31:49 | 0.15 | y | 196 | 334 | |||
| IIEES | GHIR | E | Sg | E | 2012-05-13 18:32:13 | -0.08 | y | 196 | 334 | |||
| IIEES | AHRM | Z | P | E | 2012-05-13 18:32:07 | -0.06 | y | 348 | 314 | |||
| IIEES | KRBR | Z | Pn | E | 2012-05-13 18:32:22 | 0.05 | y | 462 | 37 | |||
| IIEES | SHRT | Z | Pn | E | 2012-05-13 18:33:27 | -0.25 | y | 988 | 37 | |||
