Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2012-05-14 11:56:35.3 |
| Date & Time (Local) | 1391/2/25 16:26:35.3 |
| Location | Lat:26.76 Lon: 53.79 |
| Region | Hormozgan Province, 75 km South-West of Bastak |
Nearest Cities |
|
| 46 km South of Ahl, Fars Province | |
| 54 km South East of Ashkenan, Fars Province | |
| 57 km South West of Jenah, Hormozgan Province | |
| 75 km South West of Bastak, Hormozgan Province | |
| 79 km South East of Beyram, Fars Province | |
| Depth | 40 km |
| Agency | |

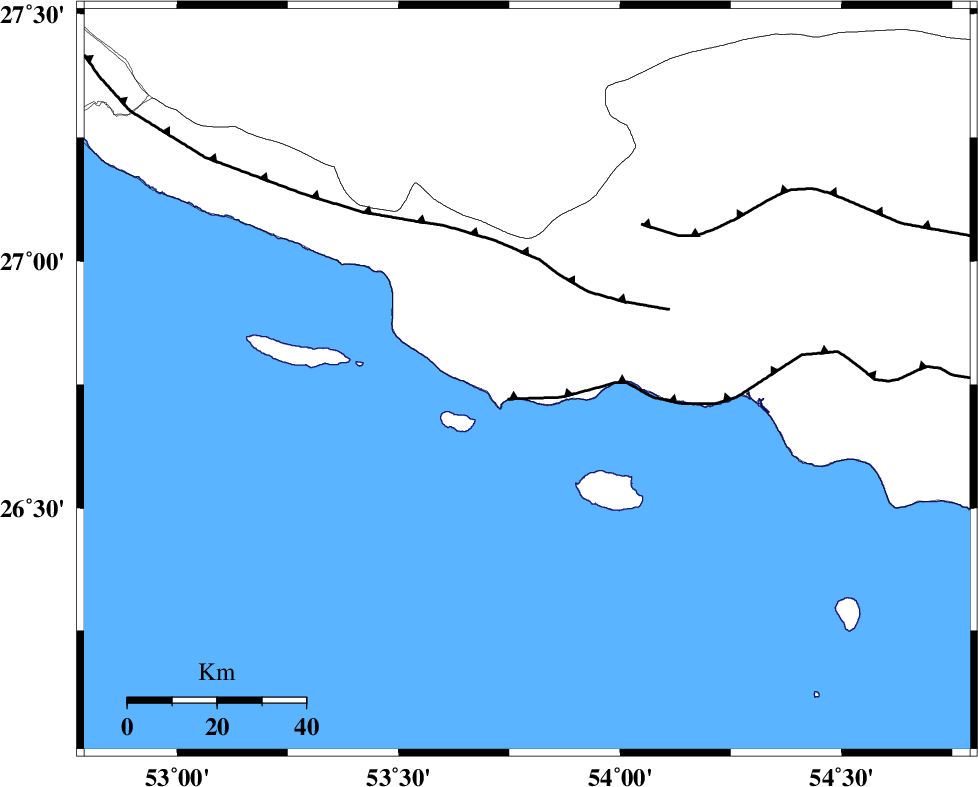

Faults within 150 km: |
|
| ZFF1 (Length: 165 km) , Distance to epicenter: 6 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 24 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 43 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 3 |
| Error in Latitude | >9 km |
| Error in Longitude | 4.1 km |
| Error in Depth | 6.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 83525 | IIEES | GHIR | N | 288.5 | 0.44 | 2012-05-14 11:57:35 | 2012-05-14 12:33:00 | n |
| 83526 | IIEES | GHIR | E | 387 | 0.48 | 2012-05-14 11:57:36 | 2012-05-14 12:33:00 | n |
| 83527 | IIEES | BNDS | E | 87.4 | 0.6 | 2012-05-14 11:58:03 | 2012-05-14 12:33:00 | n |
| 83528 | IIEES | KRBR | N | 19.8 | 0.52 | 2012-05-14 11:58:32 | 2012-05-14 12:33:00 | n |
| 83529 | IIEES | KRBR | E | 24.9 | 0.64 | 2012-05-14 11:58:49 | 2012-05-14 12:33:00 | n |
| 83530 | IIEES | BNDS | N | 90.5 | 0.6 | 2012-05-14 11:57:54 | 2012-05-14 12:33:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pg | E | 2012-05-14 11:57:06 | 0.15 | y | 187 | 335 | |||
| IIEES | GHIR | N | Sg | E | 2012-05-14 11:57:28 | -0.15 | y | 187 | 335 | |||
| IIEES | BNDS | Z | Pn | E | 2012-05-14 11:57:11 | -0.25 | y | 247 | 73 | |||
| IIEES | KRBR | Z | Pn | E | 2012-05-14 11:57:38 | y | 461 | 38 | ||||
| IIEES | BNDS | N | Sg | E | 2012-05-14 11:57:39 | y | ||||||
