Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2012-05-16 16:47:54.8 |
| Date & Time (Local) | 1391/2/27 21:17:54.8 |

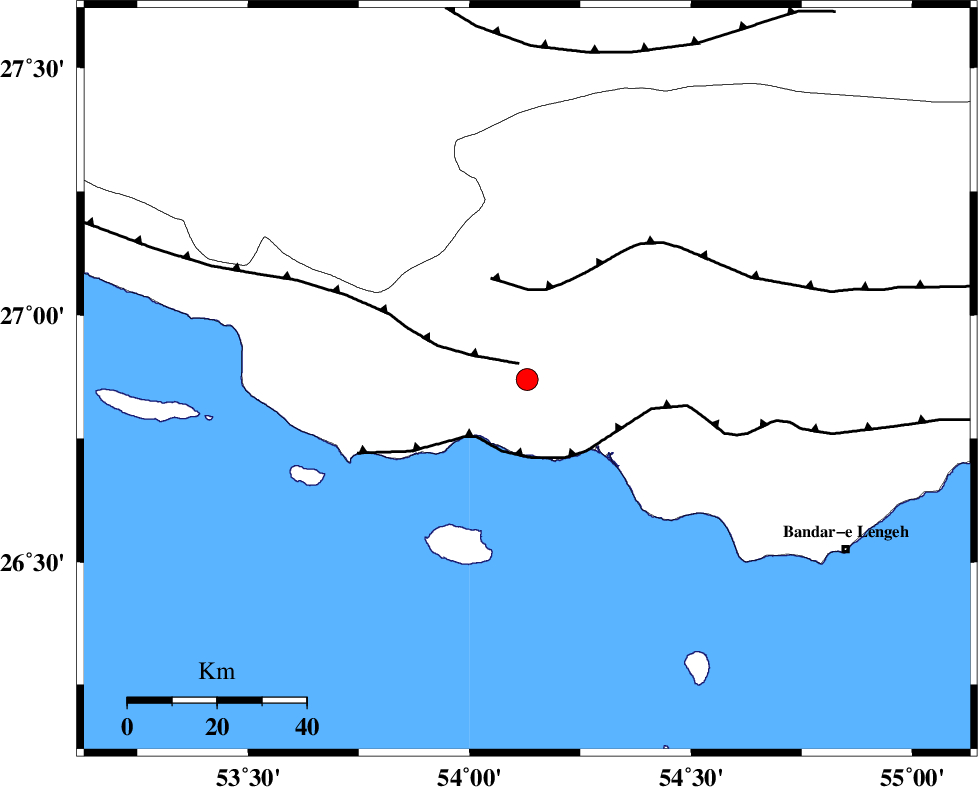

| Location | Lat:26.87 Lon: 54.13 |
| Region | Hormozgan Province, 43 km South-West of Bastak |
Nearest Cities |
|
| 22 km South West of Jenah, Hormozgan Province | |
| 43 km South West of Bastak, Hormozgan Province | |
| 51 km South East of Ahl, Fars Province | |
| 65 km South East of Ashkenan, Fars Province | |
| 70 km South of Bagh, Fars Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MFF3 (Length: 292 km) , Distance to epicenter: 4 km | |
| ZFF1 (Length: 165 km) , Distance to epicenter: 17 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 20 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >8 km |
| Error in Longitude | 3.1 km |
| Error in Depth | 7.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 83608 | IIEES | GHIR | E | 224.8 | 0.48 | 2012-05-16 16:48:50 | 2012-05-17 03:26:00 | n |
| 83609 | IIEES | GHIR | N | 217.9 | 0.48 | 2012-05-16 16:48:51 | 2012-05-17 03:26:00 | n |
| 83610 | IIEES | BNDS | N | 94.2 | 0.4 | 2012-05-16 16:49:06 | 2012-05-17 03:26:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pn | E | 2012-05-16 16:48:26 | 0.22 | y | 193 | 325 | |||
| IIEES | GHIR | E | Sg | E | 2012-05-16 16:48:49 | -0.02 | y | 193 | 325 | |||
| IIEES | BNDS | Z | Pn | E | 2012-05-16 16:48:28 | -0.08 | y | 211 | 73 | |||
| IIEES | BNDS | N | Sg | E | 2012-05-16 16:48:54 | 0.04 | y | 211 | 73 | |||
| IIEES | AHRM | Z | Pn | E | 2012-05-16 16:48:46 | -0.06 | y | 356 | 309 | |||
| IIEES | KRBR | Z | Pn | E | 2012-05-16 16:48:55 | 0.07 | y | 431 | 36 | |||
| IIEES | NASN | Z | Pn | E | 2012-05-16 16:49:25 | -0.36 | y | 669 | 349 | |||
