Event Specification
Magnitude |
4.8 |
| Date & Time (UTC) | 2012-05-17 21:40:40.8 |
| Date & Time (Local) | 1391/2/29 02:10:40.8 |

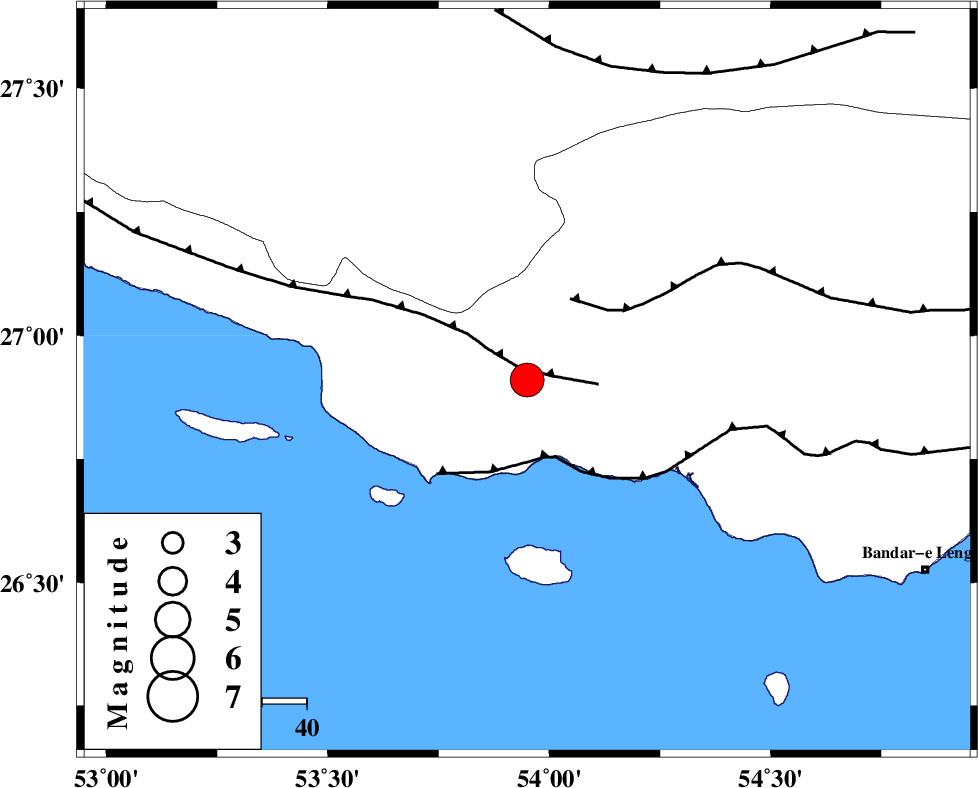

| Location | Lat:26.91 Lon: 53.95 |
| Region | Hormozgan Province, 52 km South-West of Bastak |
Nearest Cities |
|
| 35 km South West of Jenah, Hormozgan Province | |
| 36 km South East of Ahl, Fars Province | |
| 48 km South East of Ashkenan, Fars Province | |
| 52 km South West of Bastak, Hormozgan Province | |
| 66 km South of Bagh, Fars Province | |
| Depth | 39 km |
| Agency | |
Faults within 150 km: |
|
| MFF3 (Length: 292 km) , Distance to epicenter: 4 km | |
| ZFF1 (Length: 165 km) , Distance to epicenter: 18 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 21 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >7.5 km |
| Error in Longitude | 3.2 km |
| Error in Depth | 5.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 83631 | IIEES | GHIR | N | 7653 | 0.44 | 2012-05-17 21:41:35 | 2012-05-17 10:10:00 | n |
| 83632 | IIEES | BNDS | N | 6786.3 | 0.52 | 2012-05-17 21:42:00 | 2012-05-17 10:10:00 | n |
| 83633 | IIEES | BNDS | E | 9044.1 | 0.48 | 2012-05-17 21:42:01 | 2012-05-17 10:10:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pg | E | 2012-05-17 21:41:09 | -0.12 | y | 179 | 328 | |||
| IIEES | GHIR | N | Sg | E | 2012-05-17 21:41:31 | 0.08 | y | 179 | 328 | |||
| IIEES | BNDS | Z | Pn | E | 2012-05-17 21:41:14 | 0.16 | y | 227 | 76 | |||
| IIEES | BNDS | N | Sg | E | 2012-05-17 21:41:44 | -0.02 | y | 227 | 76 | |||
| IIEES | TABS | Z | Pn | E | 2012-05-17 21:42:26 | -0.29 | y | 807 | 21 | |||
